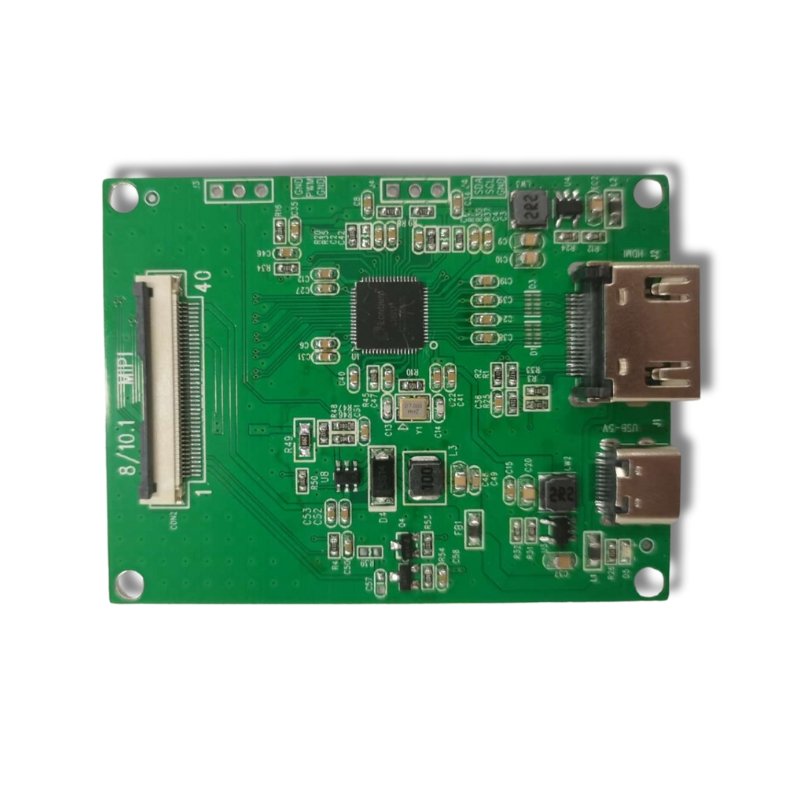

TBJ080HD-01 LCD Scaler Board | MIPI 40-pin to HDMI
Support multiple LCD resolution and screen size
The TFT control board can be compatible with our 8.0-inch and 10.1-inch TFT LCD
The material is RoHS compliant.
| Function |
MIPI To HDMI |
| Supply Voltage (V) |
5.0 Typ |
| Interface |
HDMI |
| LCM SIZE（inch） |
Multiple |
| LCM Resolution supported (pixel) |
800*1280 max |

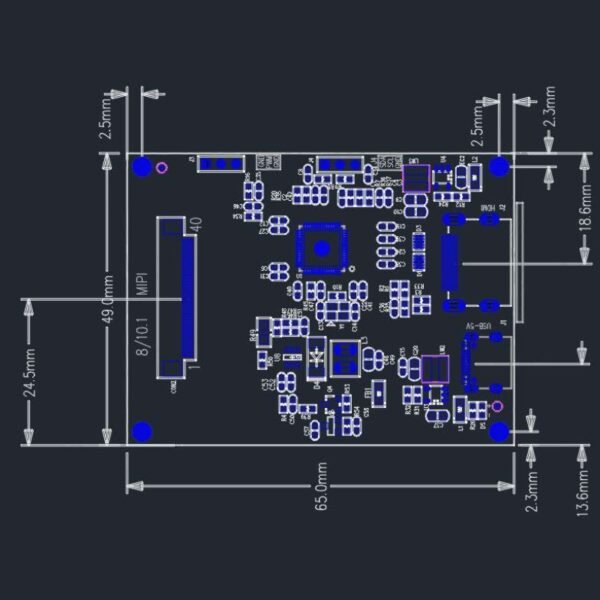

| PCB (W x H ) (mm) |
49.0×65.0 |
| Direct Current (without LCM ) (mA) |
640 Typ |
| LCM connector |
40PIN-0.5S |
| HDMI connector |
HDMI-019S |
| Operational Temperature (°C) |
-10 ~ +60 |
| Storage Temperature (°C) |
-20 ~ +70 |
Manufacturer ISO Certification
Quality Verification Processes
| 2 Types of Microscopy-Inspections |
- In process of Backlight assembly and FOG bounding
|
| 3 Stages of Aging-Tests |
- Sampling from FOG line, testing in normal and high-temperature environment
- Sampling from Finished Product: testing in high-temperature enviroment
|
| 4 Types of Lab Tests |
- High-Temperature High-Humidity Resistance Test
- Thermal Shock Test
- Vibration Test
- Drop test
|
| 5 Times of Quality Inspections |
- Materials in-coming inspection
- Online inspection
- Final inspection before packing
- IQC inspection before stock
- OQC inspection before loading
|
