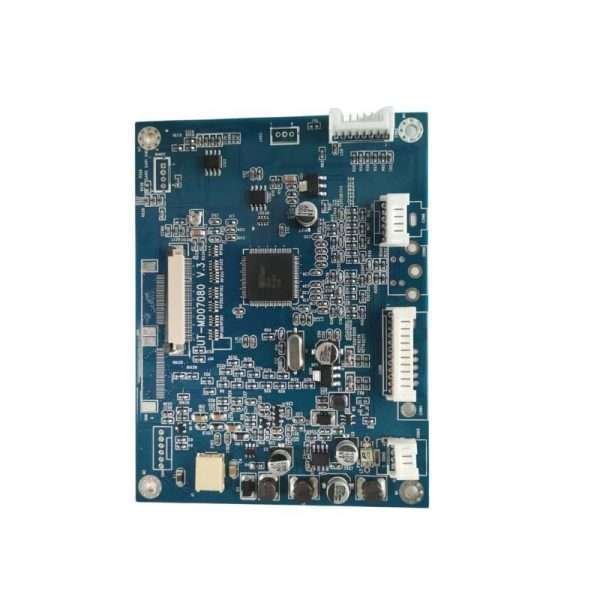

TFT Controller Board, RGB 50-pin/Dual 30-pin to VGA/CVBS

Model: TBJ080VG-01
Function: TFT LCD Controller
Interface: RGB/Dual 30-pin to VGA/CVBS
Key: 5key
PCB (W x H) (mm): 113.7×86.8
Download Resources: Specification | 2D Rendering

$9.00$14.00



TBJ080VG-01 LCD Scaler Board | Convert RGB 50-pin to VGA, CVBS |
Optional universal RGB dual 30-pin LCD module interface |
Support LCD resolution (max.): 800×480, typical screen size: 7.0″/ 9.0″/ 10.1″ |
Support button operation, multi-function on Screen Display (OSD) operation, and optional remote control function |
The TFT control board can be compatible with our 7-inch TFT module TTX070QHE-01, 9-inch TFT module TTX090BHE-01, and origin AT070TN92, EJ080NA-05B, AT102TN03 V.9.
The material is RoHS compliant.



Function  TFT LCD Controller
Supply Voltage (V) 12 Typ
Interface RGB 50-pin/Dual 30-pin to VGA/CVBS
LCM SIZE(inch) Multiple
LCM Resolution supported (pixel) 800×480
PCB (W x H ) (mm) 113.7×86.8
Direct Current (without LCM ) (mA) 230 Typ
LCM connector 50PIN-0.5S
VGA connector 12PIN-2.0S
AV connector 6PIN-2.0S
Key connector 8PIN-2.0S
Operational Temperature (°C) -10 ~ +60
Storage Temperature (°C) -20 ~ +70





Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes
