TTX134XVT-01CG | 13.36 inch IPS TFT LCD | WUXGA 1080×1920 Pixels | MIPI | In-cell Touch | with Cover Glass |
This 13.36-inch IPS TFT LCD features a high-resolution 1200×1920 (WUXGA) display with In-Cell Touch technology for seamless touch responsiveness.

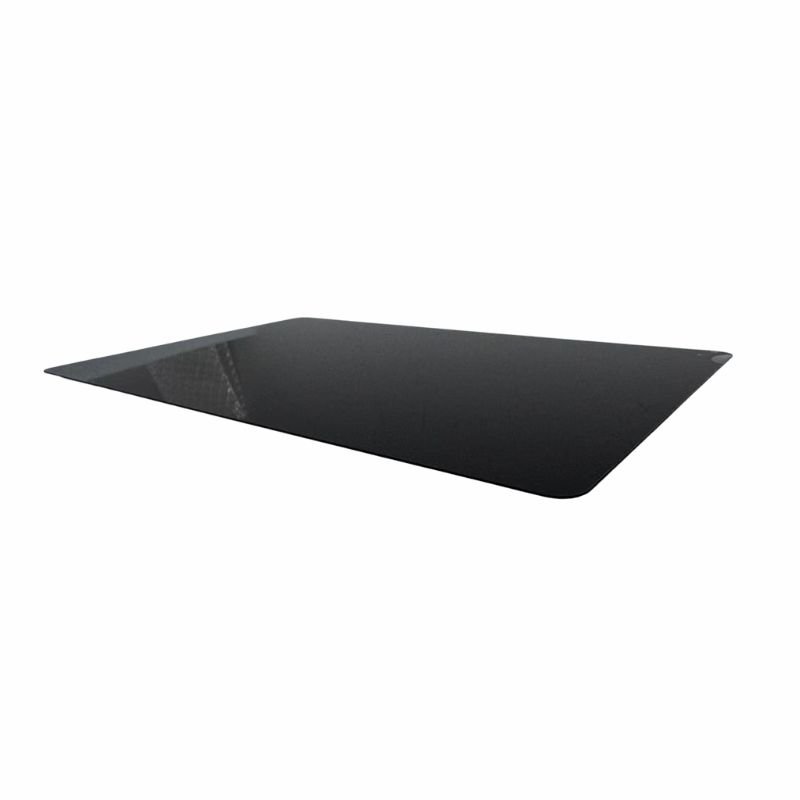

Equipped with a cover glass, for easy assembly, ideal for industrial HMI, medical devices, tablets, and embedded systems.
The IPS panel ensures wide viewing angles and vibrant colors.
This display has a built-in FT8201P controller.
The material is RoHS-compliant.
| Diagonal (inch) | 13.36 |
| Resolution (pixel) | 1200×1920 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | In-cell |

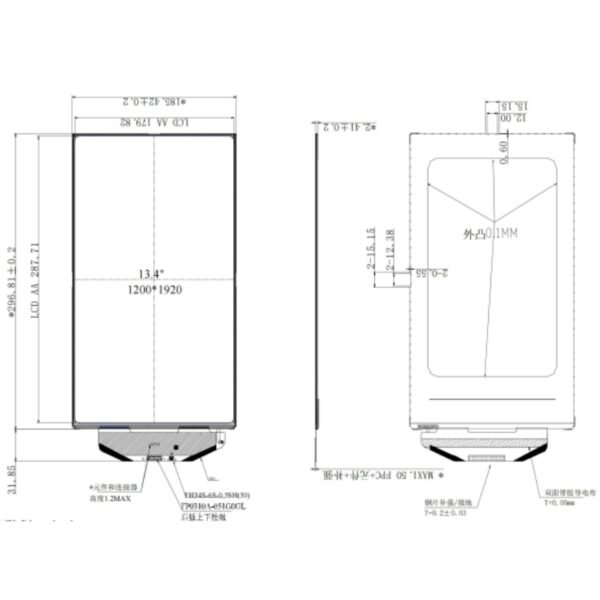

| Module Dimensions (mm) (W x H x D) | 197.22×305.11×3.5 |
| Active Area (mm) (W x H) | 179.82×287.71 |
| Luminance (cd/m2) | 320 typ |
| Interface | MIPI |
| Driver IC | FT8201P |
| Operational Temperature (°C) | -10 ~ +50 |
| Storage Temperature (°C) | -20 ~ +60 |
