Sale!

2.1 inch IPS TFT, MIPI, 480×480

Model: TTS021BRS-01

Diagonal: 2.1″
Resolution: 480×480 Pixels
Display Type: IPS
Interface: MIPI
Driver IC: ST7701S
Download Resources: Specification | 2D Rendering

$11.20$20.10

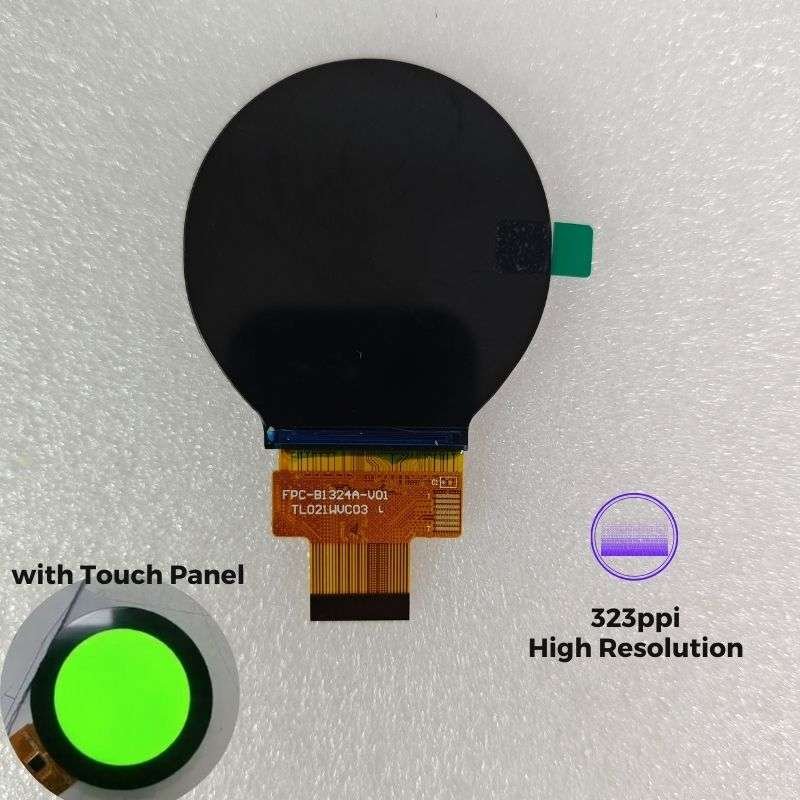

TTS021BRS-01 | 2.1 inch IPS TFT LCD | Round | 480×480 Pixels | RGB+SPI |
The small round display is designed especially for commercial and wearable terminals.
This TFT display provides a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in ST7701S controller.
Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS-compliant.



Diagonal (inch) 2.1
Resolution (pixel) 480×480
Display Type IPS
Display Mode Transmissive
Optimal View Full View
Touch screen None

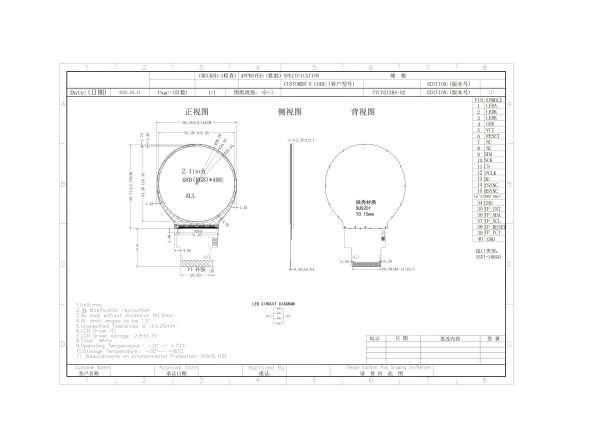

Module Dimensions (mm) (W x H x D) 56.18×59.71×2.22
Active Area (mm) (W x H) 53.28×53.28
Luminance (cd/m2) 380
Interface MIPI
Driver IC ST7701S
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80



Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes



2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
