TOQ801XHT-01C | 8-inch AMOLED Display | 4:3 FHD 2480×1860 pixels Resolution | MIPI Interface | On-cell Touch |
This AMOLED display offers FHD 2480×1860 high resolution, MIPI interface, with rich color depth, deep contrast, and ultra-thin form factor.
It ideal choice for advanced control panels, portable devices, and commercial handheld terminals.
This display has a built-in RM69380 controller and with on-cell touch.

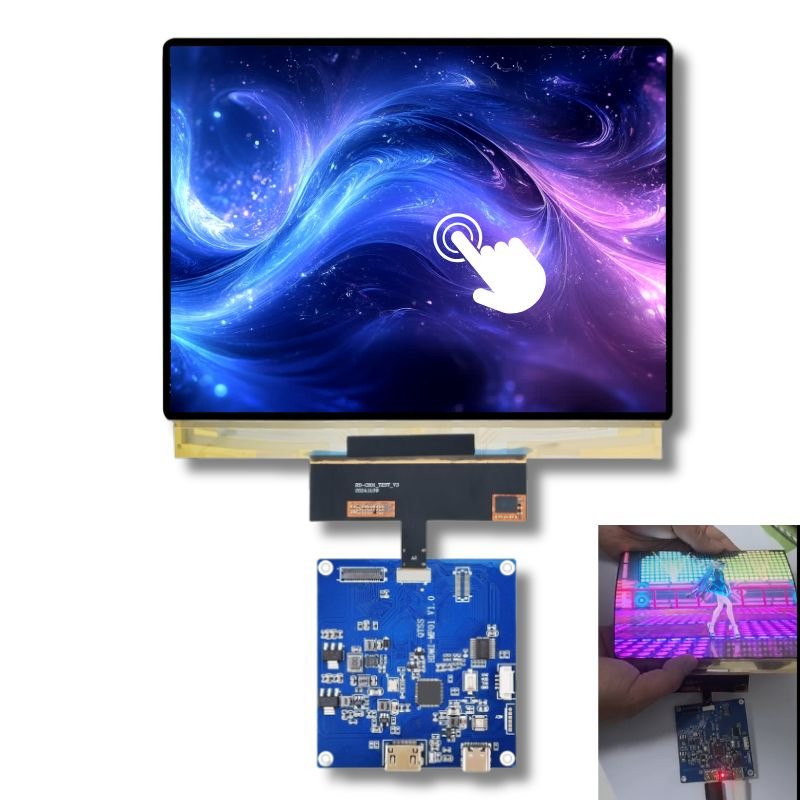

It has a compatible HDMI AD board TBQ801HD-01.
The material is RoHS-compliant.
| Diagonal (inch) | 8.01 |
| Resolution (pixel) | 2480×1860 |
| Display Type | Flexible AMOLED |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | on cell |

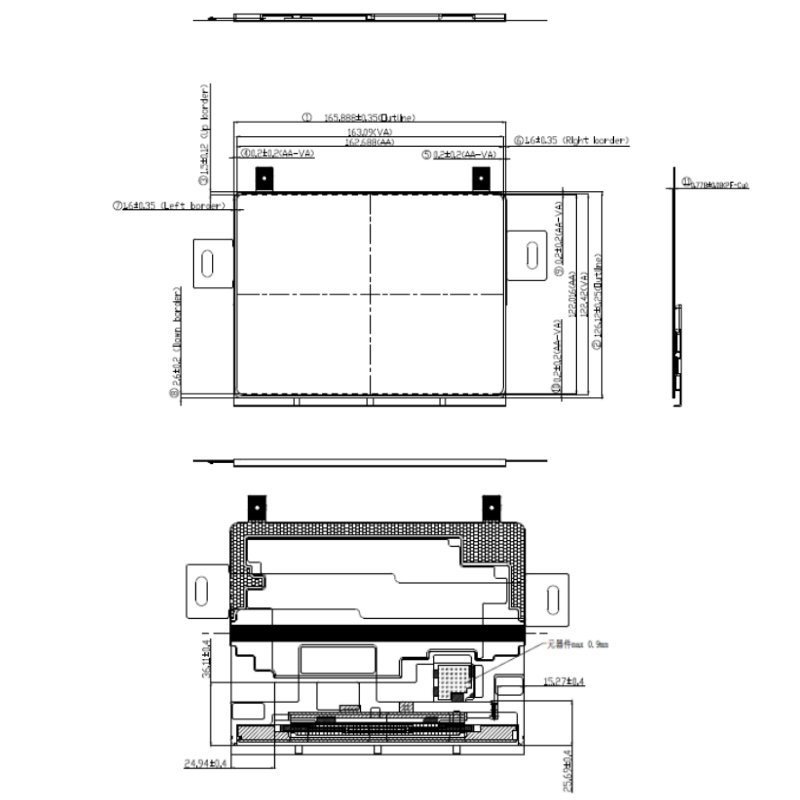

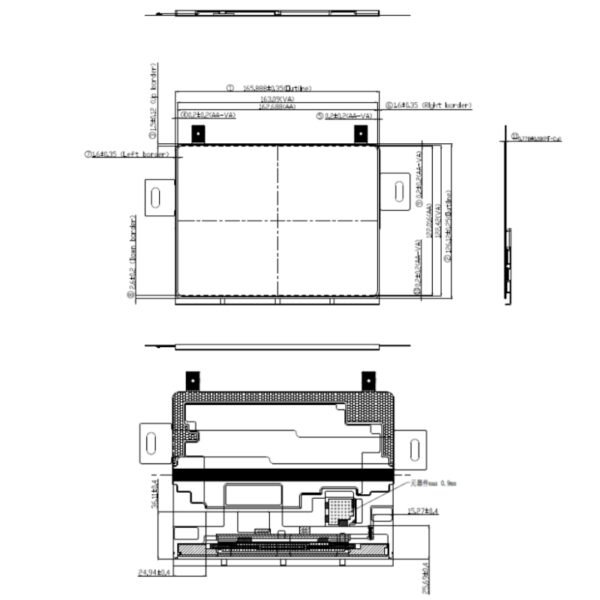

| Module Dimensions (mm) (W x H x D) | 165.89x 126.12 |
| Active Area (mm) (W x H) | 162.688×122.016 |
| Luminance (cd/m2) | 430 |
| Interface | MIPI |
| Driver IC | RM69380 |
| Operational Temperature (°C) | -10 ~ +70 |
| Storage Temperature (°C) | -40 ~ +80 |
