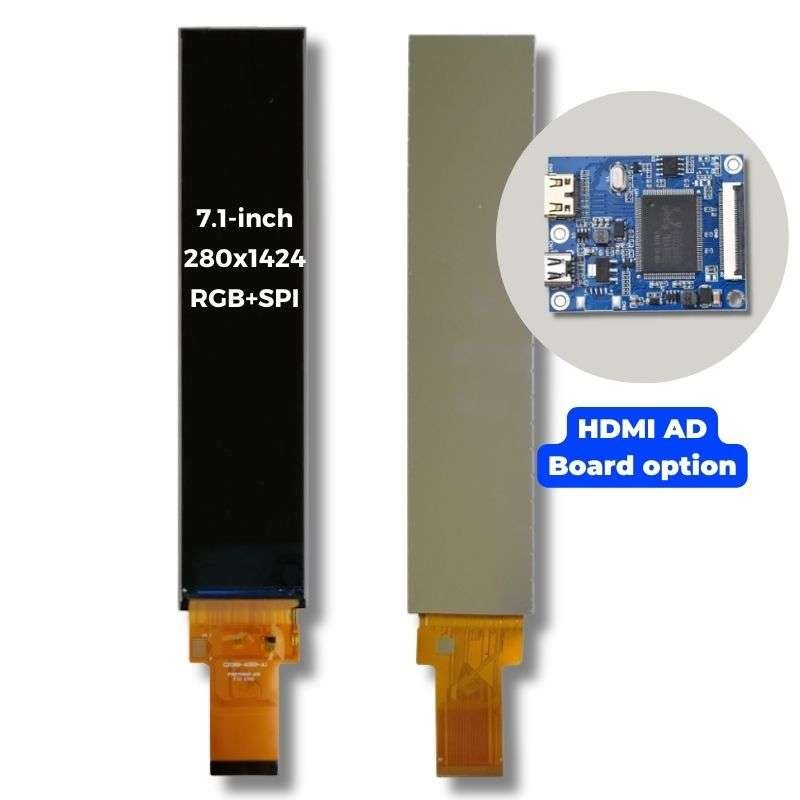

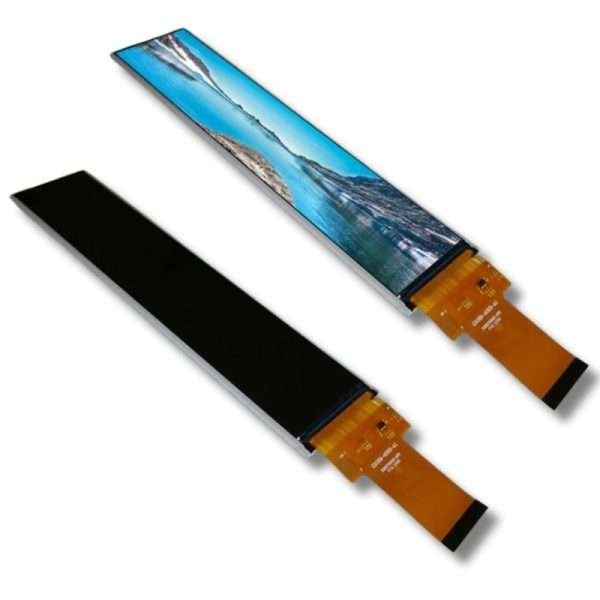

TTG071BVV-01 | 7.1 inch IPS TFT LCD | 280×1424 Pixels | RGB+SPI | Stretched Bar LCD |
The vertical display has unique size ratio, is designed for commercial devices and auto industry.
This TFT display provide a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in NV3052 controller.
Optional custom solution with capacitive touchscreen.
The material is RoHS compliant.
| Diagonal (inch) | 7.1″ |
| Resolution (pixel) | 280×1424 Pixels |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Optional |

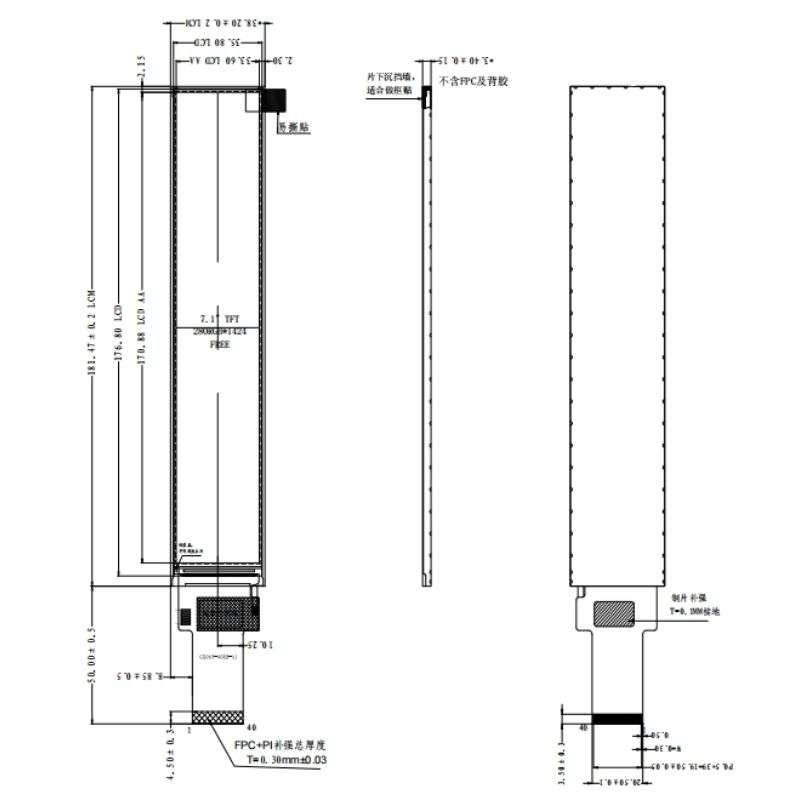

| Module Dimensions (mm) (W x H x D) | 38.20×181.47×3.4 |
| Active Area (mm) (W x H) | 33.60×170.88 |
| Luminance (cd/m2) | 300 |
| Interface | RGB+SPI |
| Driver IC | NV3052 |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
