TTX702BVT-01 | 7.02 inch IPS TFT LCD | WUXGA 1200×1920 Pixels | MIPI | Proportion 16:10 |
This high-quality 7.02-inch IPS TFT LCD features a sharp 1200×1920 (WUXGA) resolution for crisp visuals and vibrant colors.
With MIPI interface support, it ensures fast data transmission, making it ideal for digital product, industrial HMI, medical devices, and embedded systems.
The IPS technology provides wide viewing angles and excellent brightness, which is suitable for various applications.
This display has a built-in HX8279 controller.
Optional custom solution with capacitive touchscreen.
The material is RoHS-compliant.
| Diagonal (inch) | 7.02 |
| Resolution (pixel) | 1200×1920 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Custom |

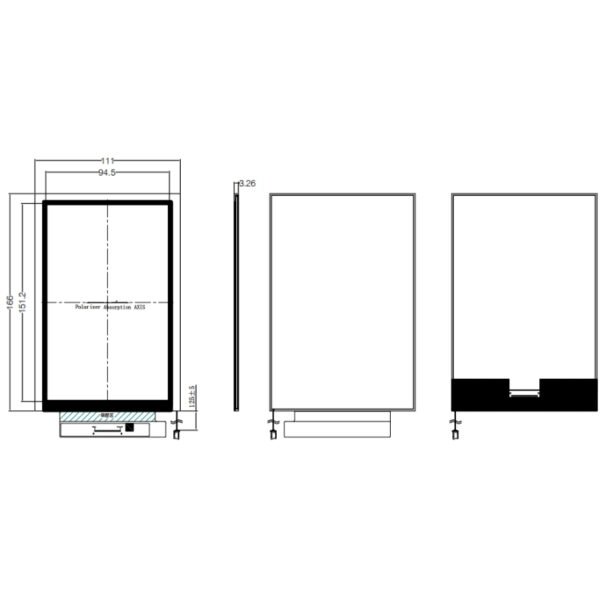

| Module Dimensions (mm) (W x H x D) | 111X166X3.26 |
| Active Area (mm) (W x H) | 94.5 x 151.2 |
| Luminance (cd/m2) | 400 typ |
| Interface | MIPI |
| Driver IC | HX8279 |
| Operational Temperature (°C) | -30 ~ +80 |
| Storage Temperature (°C) | -30 ~ +80 |
