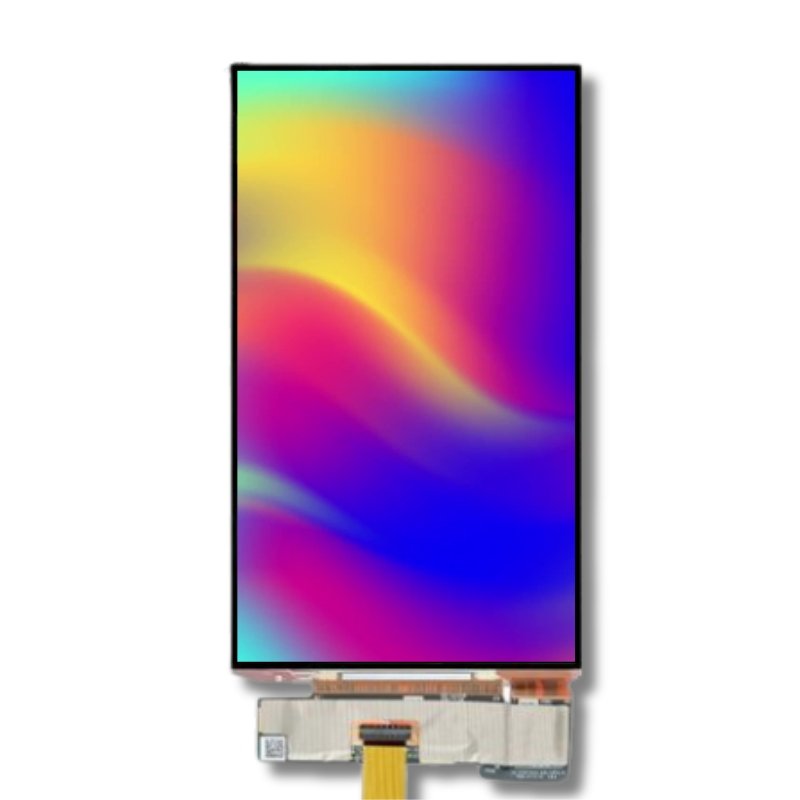

TOQ070XVT-01C | 7.0-Inch AMOLED Display | Full HD 1080×1920 | MIPI Interface | On-cell Touch |
The TOQ070XVT-01C is a 7.0-inch Full HD AMOLED display offering 1080×1920 high resolution, MIPI interface, with rich color depth, deep contrast, and ultra-thin form factor.
It ideal choice for advanced control panels, portable devices, and commercial handheld terminals.

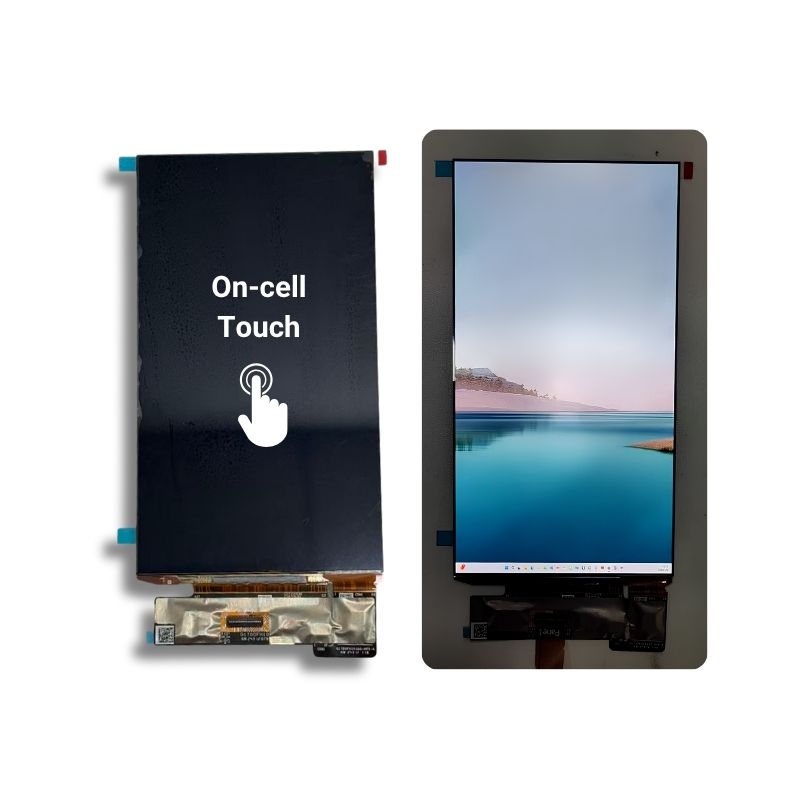

This display has a built-in ICNA3512 controller and with on-cell touch.
It has a compatible HDMI AD board TBQ801HD-01.
The material is RoHS-compliant.
| Diagonal (inch) | 7-inch |
| Resolution (pixel) | 1080×1920 |
| Display Type | AMOLED |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | on cell |

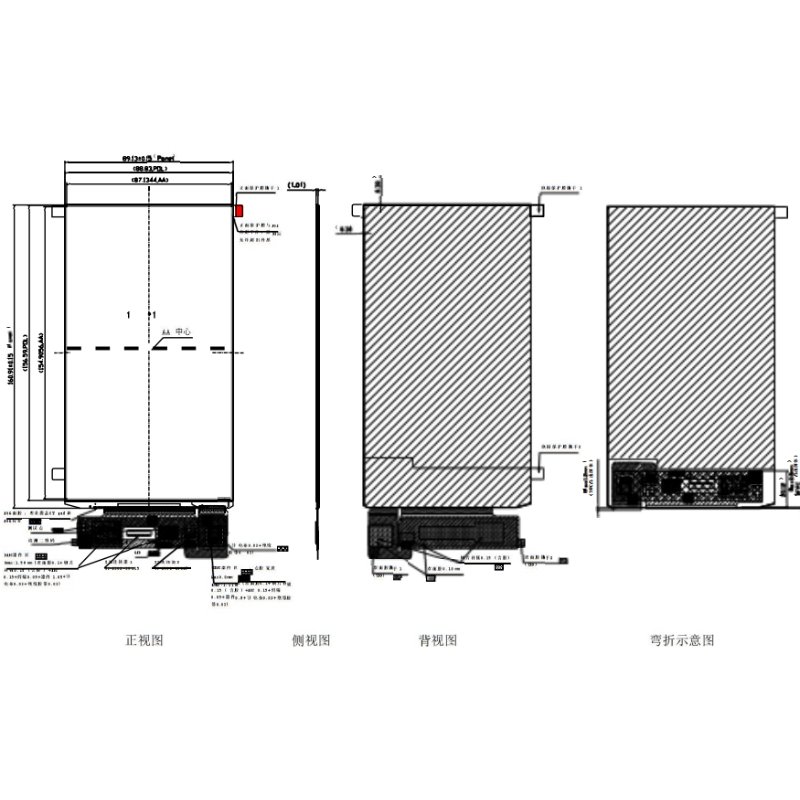

| Module Dimensions (mm) (W x H x D) | 89.13×160.90×1.02 |
| Active Area (mm) (W x H) | 87.13×154.90 |
| Luminance (cd/m2) | 720 |
| Interface | MIPI |
| Driver IC | ICNA3512 |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -40 ~ +80 |
