TOQ667XHT-01C | FHD 6.67-inch AMOLED Display | 2400*1080 pixels Resolution | MIPI Interface | On-cell Touch |
This AMOLED display offers 2400*1080 high resolution, an MIPI interface, rich color depth, deep contrast, and an ultra-thin form factor.
It is an ideal choice for advanced control panels, portable devices, and commercial handheld terminals.
This display has a built-inVTDR6130 controller with on-cell touch.
The material is RoHS-compliant.
| Diagonal (inch) | 6.67 |
| Resolution (pixel) | 2400*1080 |
| Display Type | Flexible AMOLED |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | on cell |

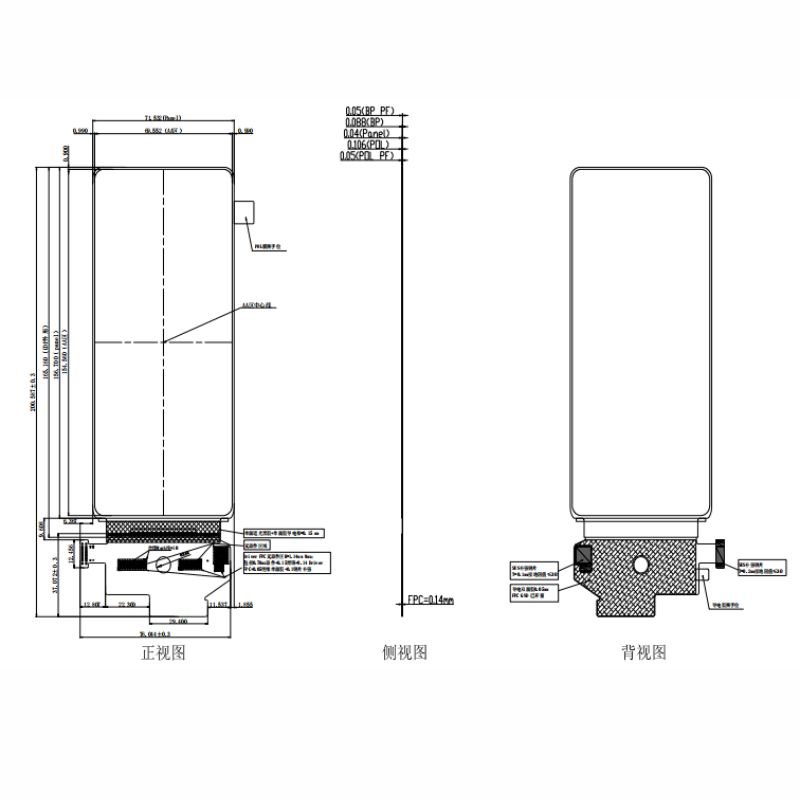

| Module Dimensions (mm) (W x H ) | 165.16*71.532 |
| Active Area (mm) (W x H) | 154.56*69.552 |
| Luminance (cd/m2) | 500 typ |
| Interface | MIPI |
| Driver IC | VTDR6130 |
| Operational Temperature (°C) | -30 ~ +70 |
| Storage Temperature (°C) | -40 ~ +80 |
