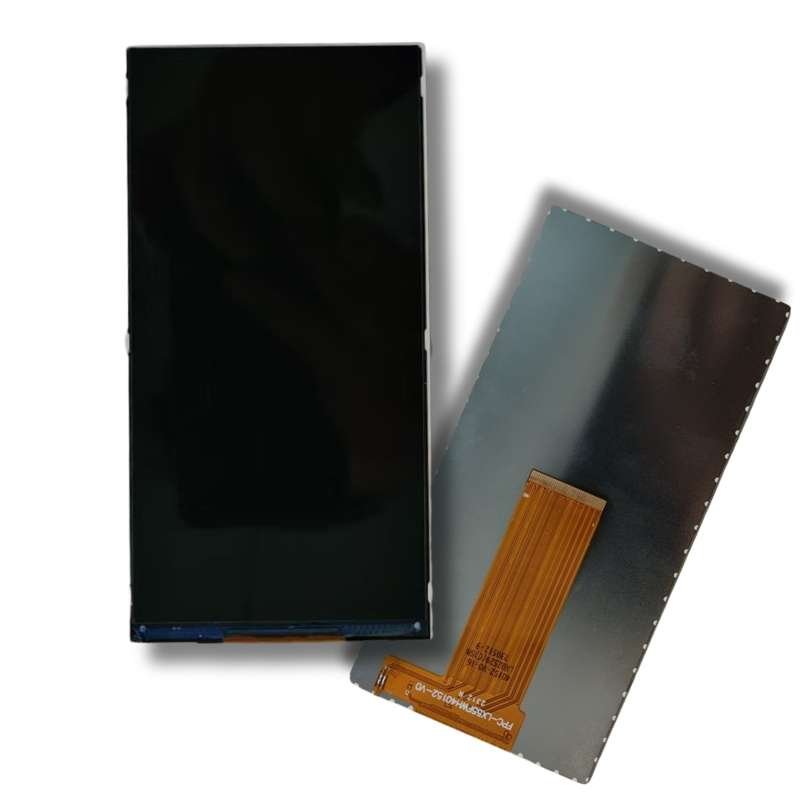

TTL055XVS-02 | 5.5 inch IPS TFT LCD | 480×960 Pixels | MIPI | High Brightness 700cd/m2 |
This 5.5-inch TFT LCD is a handheld display with an MIPI interface and offers a full view.
Its brightness of 700cd/m2, and widely used in industrial control, medical, handheld, security, vehicle, VR, instrumentation, and other related products.
Optional custom solution with capacitive or touchscreen.
The material is RoHS-compliant.
| Diagonal (inch) | 5.5″ |
| Resolution (pixel) | 480×960 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Custom |

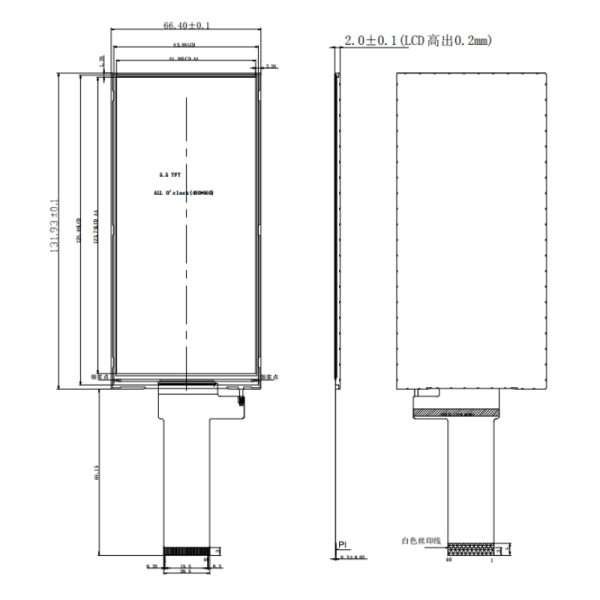

| Module Dimensions (mm) (W x H x D) | 66.40 x131.93 x2.15 |
| Active Area (mm) (W x H) | 61.8768 x123.7536 |
| Luminance (cd/m2) | 700 (Optional 300cd/m2) |
| Interface | MIPI |
| Driver IC | ST7701S |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
