TTY270BHT-01 | 27 inch IPS TFT LCD | 1920×1080 Pixels | LVDS | HDMI Board Option |

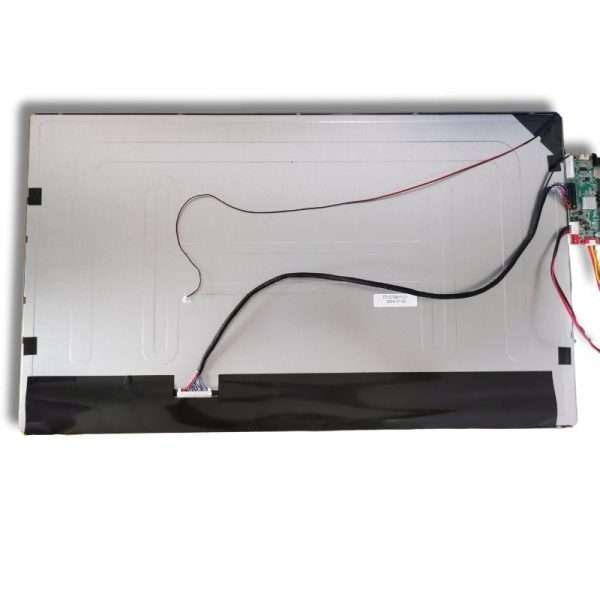

Option of interface transfer to HDMI via the universal controller board (CS53S1) + LVDS cable
This TFT display provides a full view, people could see the quality display image from any angle.
Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS compliant.
| Diagonal (inch) | 27″ |
| Resolution (pixel) | 1920×1080 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Capacitive Touch |

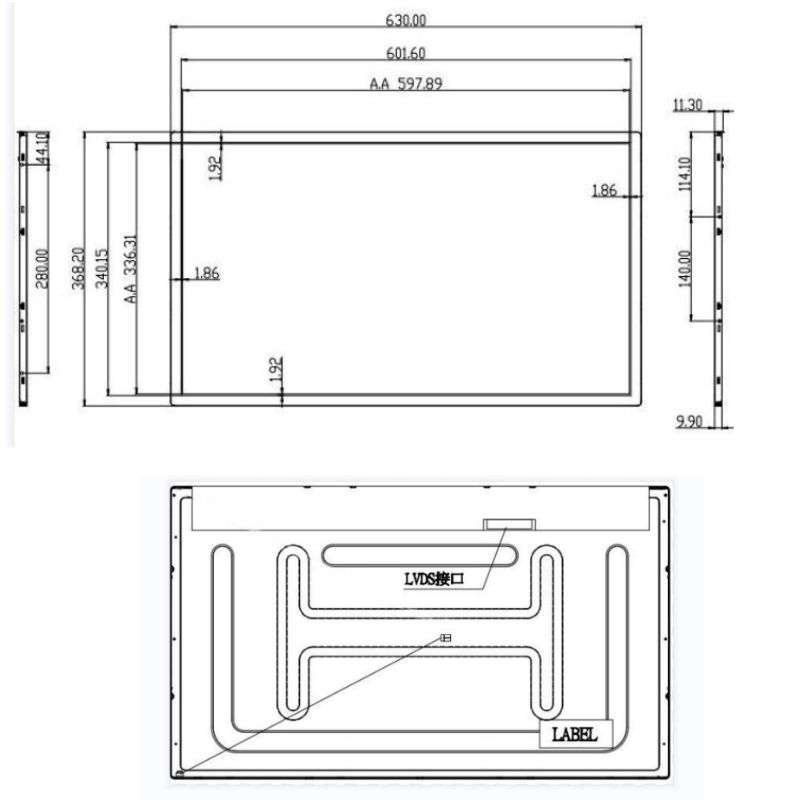

| Module Dimensions (mm) (W x H x D) | 630×368×9.7(w/o PCB);13.5(with PCB) |
| Active Area (mm) (W x H) | 597.88× 336.31 |
| Luminance (cd/m2) | 350 |
| Interface | LVDS |
| Driver IC | TBD |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
