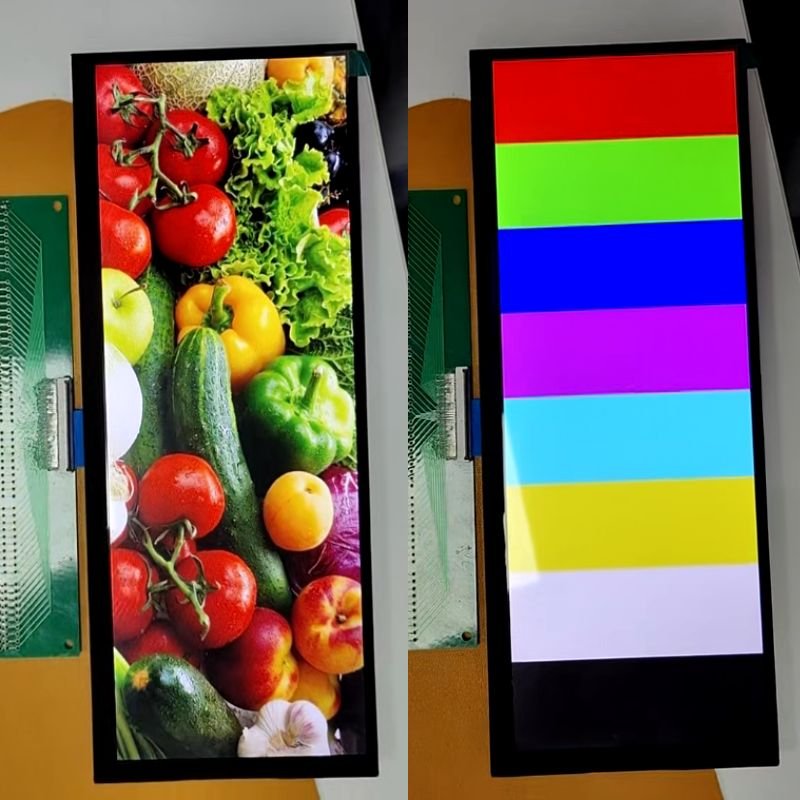

TTX102XVT-01C | 10.25-inch IPS TFT LCD | 720×1920 Resolution | MIPI Interface | In-cell Touch |
This 10.25-inch IPS TFT LCD features a 720×1920 resolution display with In-Cell Touch technology for seamless touch responsiveness. Equipped with a MIPI interface, it delivers fast data transfer, making it ideal for industrial HMIs, portable devices, and commercial applications.
The IPS panel ensures wide viewing angles and vibrant colors, while the vertical screen format (9:24 aspect ratio) is ideal for modern UI designs.
Optional custom solution with cover glass for easy assembly.
The material is RoHS-compliant.
| Diagonal (inch) | 10.25 |
| Resolution (pixel) | 720×1920 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | In-cell |
| Module Dimensions (mm) (W x H x D) | 108.89×264.24×6.3 |
| Active Area (mm) (W x H) | 91.37×243.65 |
| Luminance (cd/m2) | 600 typ |
| Interface | MIPI |
| Driver IC | TBD |
| Operational Temperature (°C) | -25 ~ +75 |
| Storage Temperature (°C) | -35 ~ +85 |
