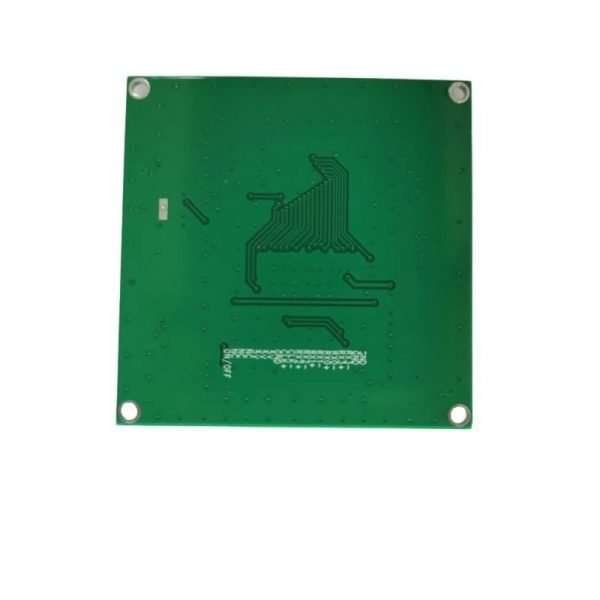

TFT Controller Board, RGB to LVDS, 480×272, 480×800

Model: TBJ043LV-01

Function: TFT LCD Controller
Interface: RGB to LVDS

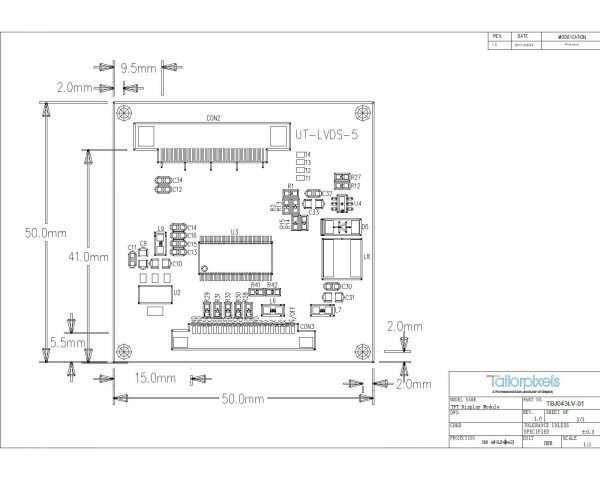

PCB (W x H) (mm): 50.0×50.0
Download Resources: Specification | 2D Rendering



TBJ043LV-01 Scaler Board | Convert RGB 40-pin to LVDS | Convert LVDS signal into TTL signal |
Support LCD resolution: 480×800, 480×272, typical screen size: 4.3″/ 5.0″ |
Built-in backlight driver, convenient to start the display module |
The TFT control board can be compatible with our 4.3-inch TFT module TTX043HHS-02, 5.0-inch TFT module TTX050BHS-01, and origin module AT043TN25 V.2 and TM050RDH03.
The material is RoHS-compliant.


Function TFT LCD Controller
Supply Voltage (V) 5.0 Typ
Interface RGB to LVDS
LCM SIZE Multiple
LCM Resolution supported (pixel) 800×480
PCB (W x H ) (mm) 50.0×50.0
Direct Current (without LCM ) (mA) 200 Typ
LCM connector 40PIN-0.5S
LVDS connector  20PIN/DF19-1.0S
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80



Manufacturer ISO Certification

ISO certification Tailor Pixels
