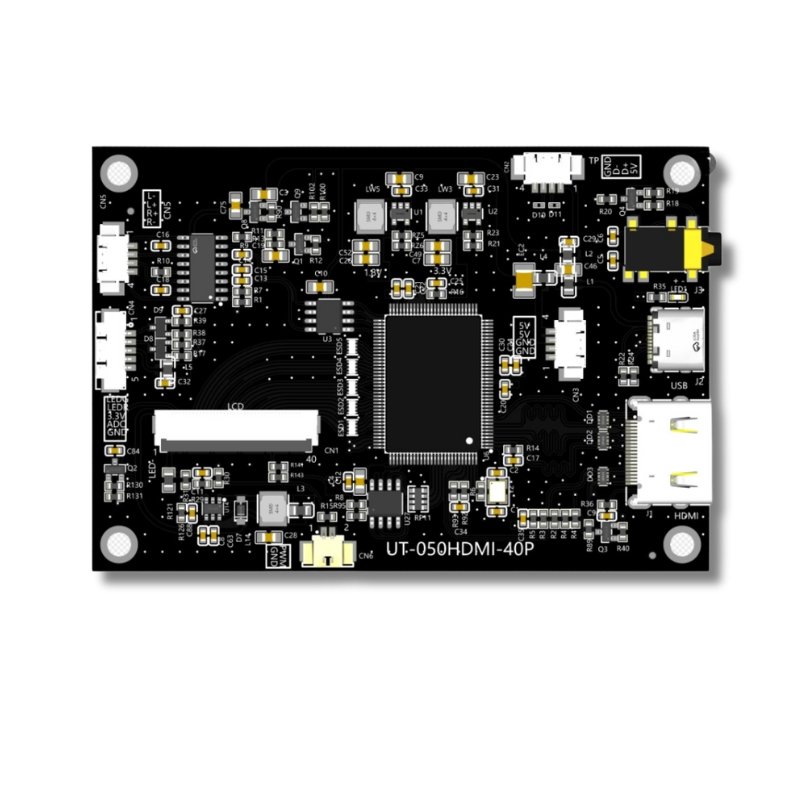

TBJ050HD-01 LCD Scaler Board | Convert RGB40-pin to HDMI
Support mutiple LCD resolution and screen size.
Support button operation, multi-function OSD operation, and optional remote control function.
The TFT control board can be compatible with our 4.3 -inch and 5.0-inch TFT LCD.
The material is RoHS compliant.
| Function | RGB To HDMI |
| Supply Voltage (V) | 5.0 Typ |
| Interface | HDMI |
| LCM SIZE（inch） | Multiple |
| LCM Resolution supported (pixel) | 800*480 max |

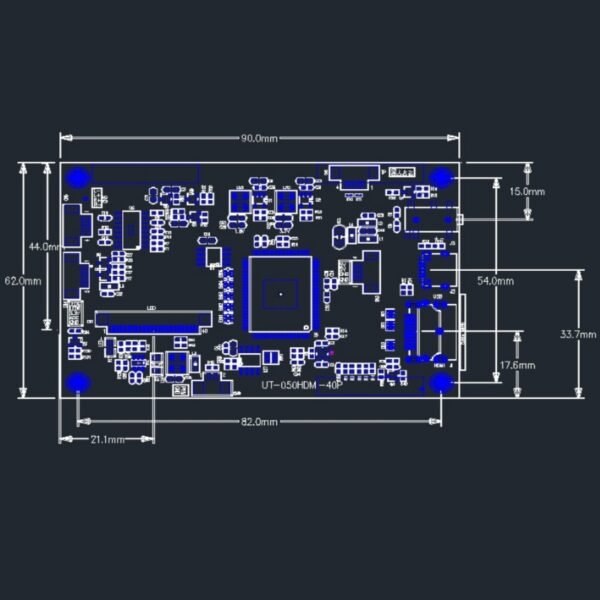

| PCB (W x H ) (mm) | 96.0×62.0 |
| Direct Current (without LCM ) (mA) | 300 Typ |
| LCM connector | 40PIN-0.5S |
| HDMI connector | HDMI-019S |
| Operational Temperature (°C) | -10 ~ +60 |
| Storage Temperature (°C) | -20 ~ +70 |
