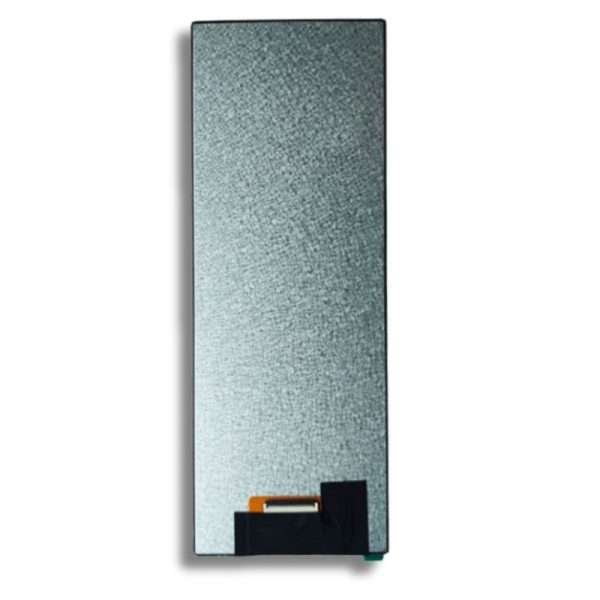

TTG093XVT-01 | 9.3 inch IPS TFT | Vertical Display | MIPI | 600×1600
The vertical display has unique size ratio, is designed for commercial devices and auto industry.
This TFT display provide a full view, people could see the quality display image from any angle.

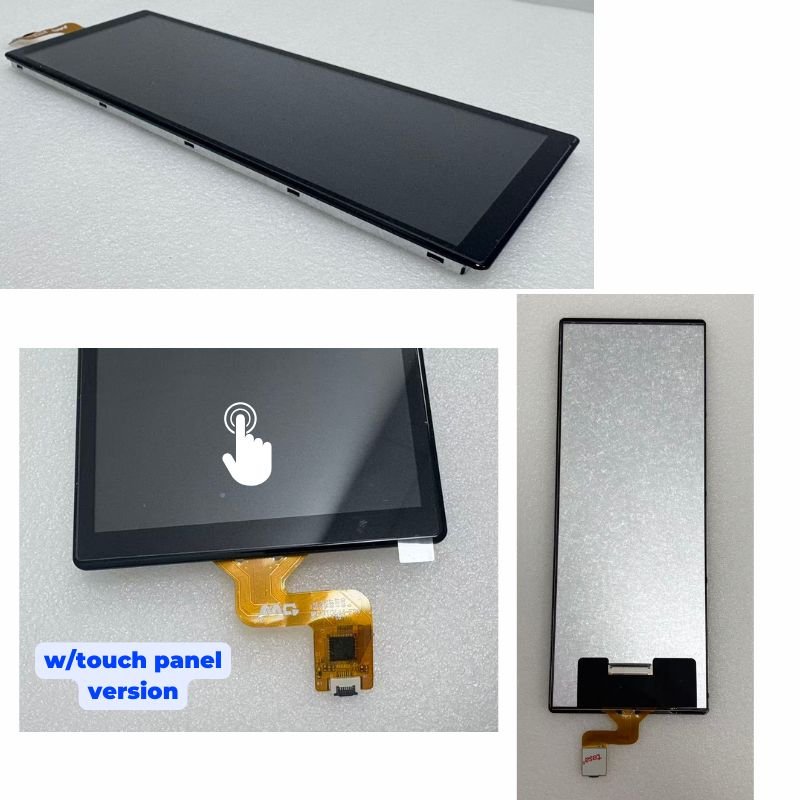

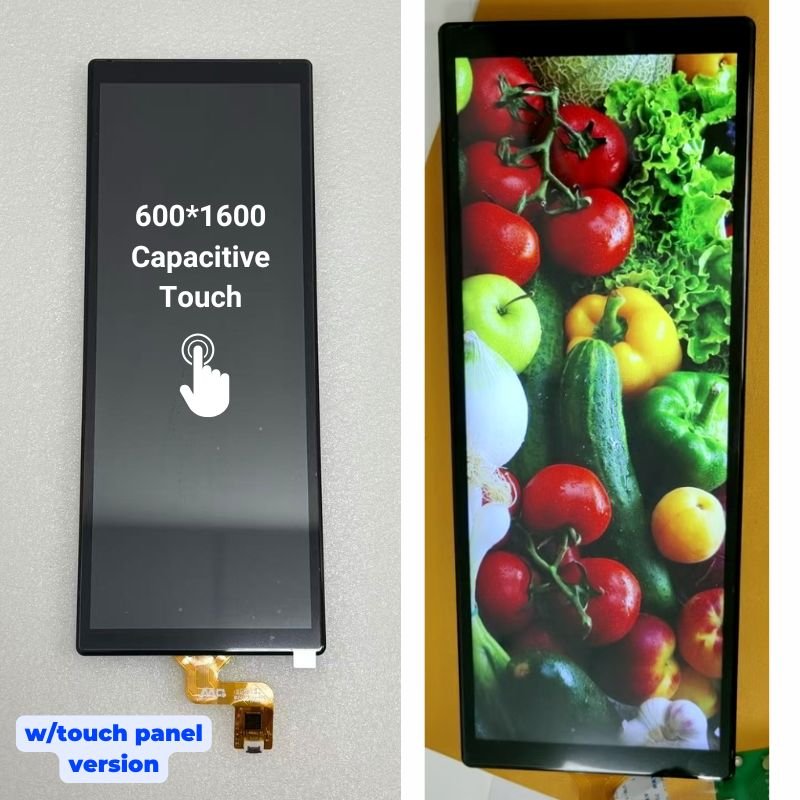

Optional custom solution with capacitive touchscreen.
The material is RoHS compliant.
| Diagonal (inch) | 9.3″ |
| Resolution (pixel) | 600×1600 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Custom |
| Module Dimensions (mm) (W x H x D) | 89* 231*4.6 |
| Active Area (mm) (W x H) | 82.944*221.184 |
| Luminance (cd/m2) | 750 typ |
| Interface | MIPI |
| Driver IC | TBD |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -20 ~ +70 |
