Model: TTX080KHT-01
Diagonal: 8.0″
Resolution: 800×600 Pixels
Display Type: IPS
Interface: RGB 24bit
Driver IC: TBD
Download Resources: Specification |
$10.00 – $17.50

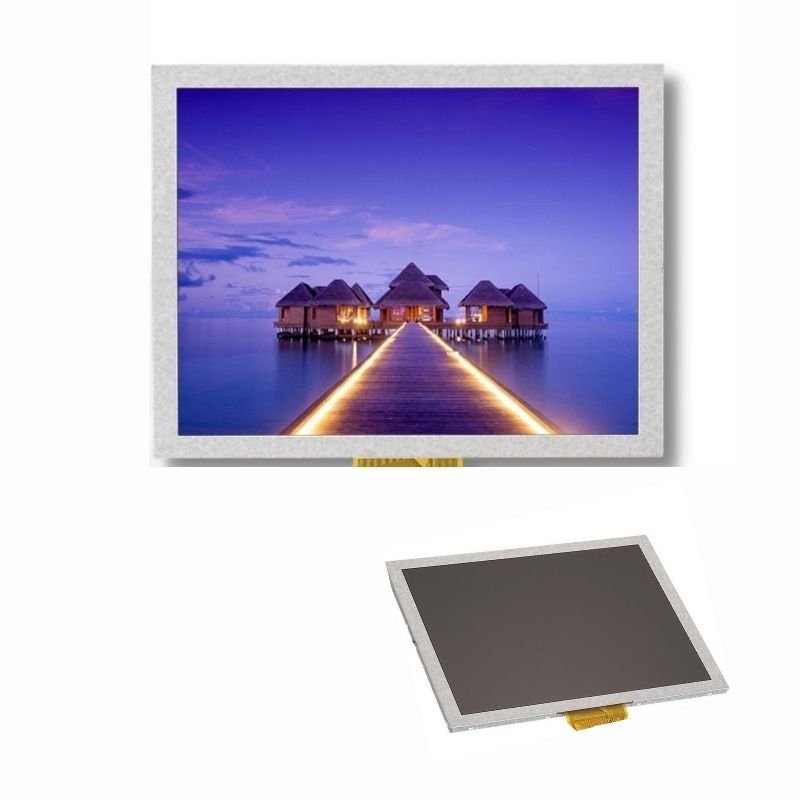

TTX080KHT-01| 8 inch IPS TFT LCD | 800×600 Pixels | RGB |
Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS compliant.
| Diagonal (inch) | 8 |
| Resolution (pixel) | 800×600 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | ALL |
| Touch Screen | Optional |
| Module Dimensions (mm) (W x H x D) | 183.0×141.0x3.5 |
| Active Area (mm) (W x H) | 162.0×121.5 |
| Luminance (cd/m2) | 250 |
| Interface | RGB |
| Driver IC | TBD |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
Manufacturer ISO Certification
Quality Verification Processes
| 2 Types of Microscopy-Inspections |
|
| 3 Stages of Aging-Tests |
|
| 4 Types of Lab Tests |
|
| 5 Times of Quality Inspections |
|
| Input Interface / Signal |
|---|
