TTQ088HVT-01 | 8.8 inch Bar LCD | IPS TFT | Brightness 600 cd/m2 | MIPI | 480×1920 |
The vertical display has unique size ratio, is designed for commercial devices and auto industry.
This TFT display provide a full view, people could see the quality display image from any angle.

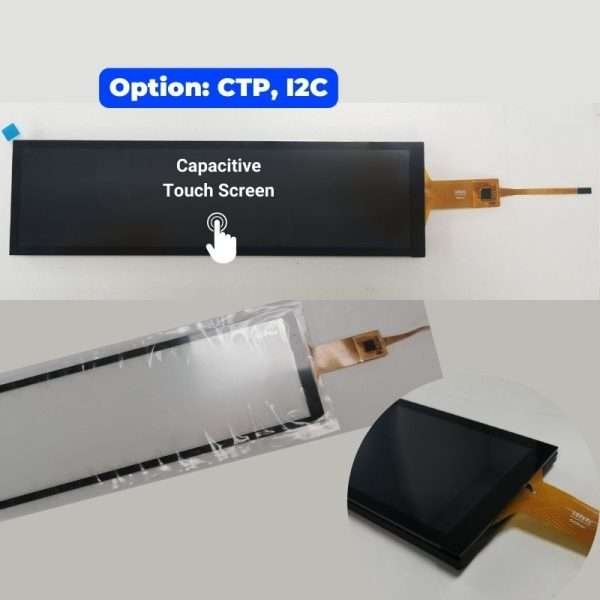

Optional custom solution with capacitive touchscreen.
The material is RoHS-compliant.
| Diagonal (inch) | 8.8″ |
| Resolution (pixel) | 480x1920Pixels |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Option |

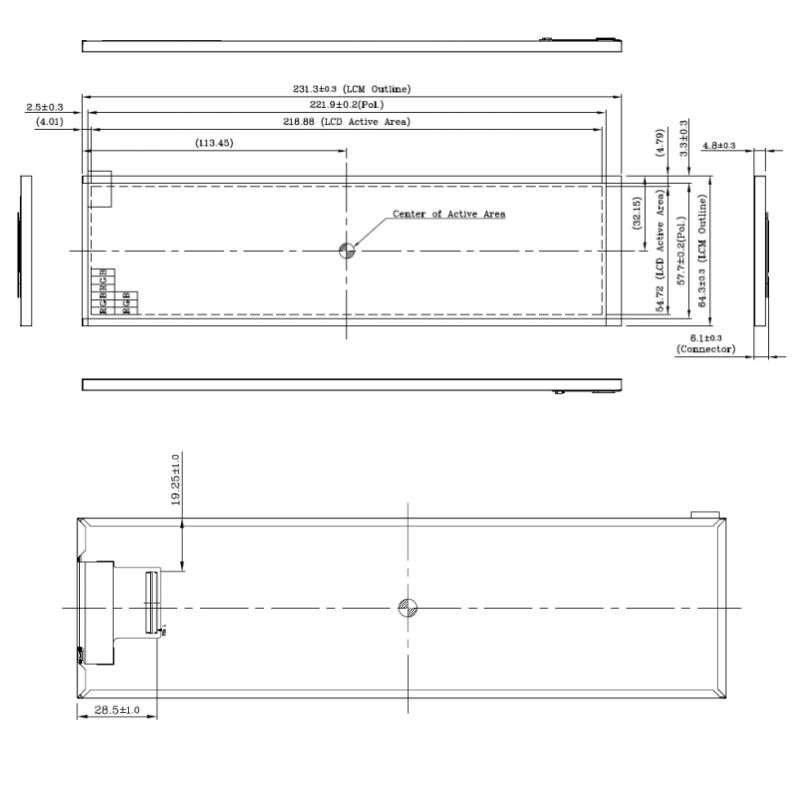

| Module Dimensions (mm) (W x H x D) | 231.3×64.3×4.8 |
| Active Area (mm) (W x H) | 54.72×218.88 |
| Luminance (cd/m2) | 600 |
| Interface | MIPI |
| Driver IC | TBD |
| Operational Temperature (°C) | -20 ~ +60 |
| Storage Temperature (°C) | -30 ~ +80 |
