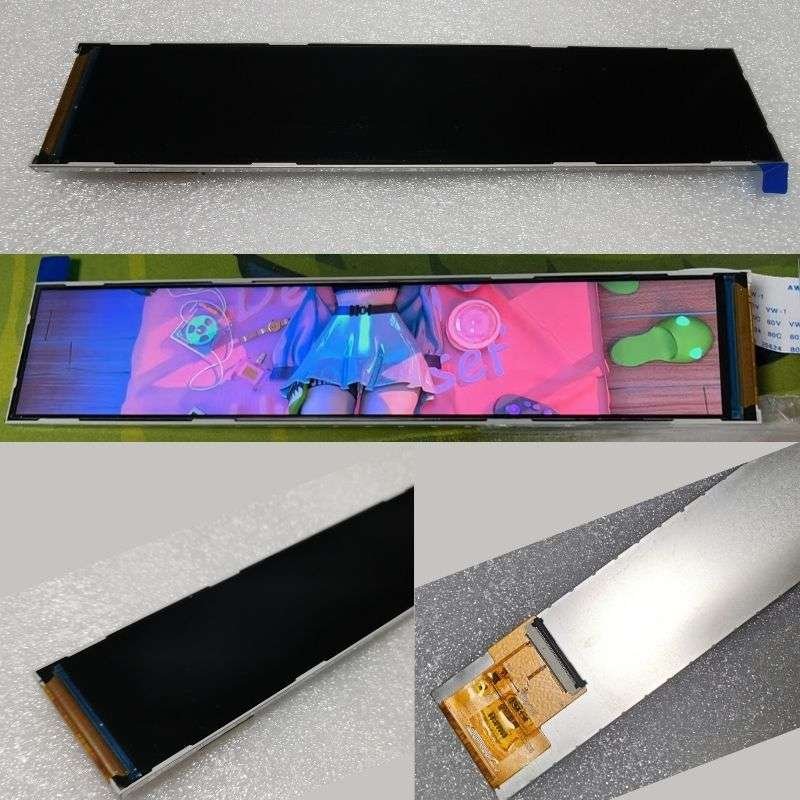

7.1 inch IPS TFT, Bar LCD, MIPI 40-pin, 280×1424

Model: TTQ071BVE-01

Diagonal: 7.1″
Resolution: 280×1424 Pixels
Display Type: IPS
Interface: MIPI 40-pin
Driver IC: JD9365DA-H3
Touch Screen Option: Capacitive Touch
Download Resources: Specification | 2D Rendering


TTQ071BVE-01 | 7.1 inch IPS TFT Bar LCD | 280×1424 Pixels | MIPI 40-pin| HDMI AD board option
The vertical display has unique size ratio, is designed for commercial devices and auto industry.
This TFT display provides a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in JD9365DA-H3 controller.
Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS-compliant.


Diagonal (inch) 7.1
Resolution (pixel)  280×1424 Pixels
Display Type IPS
Display Mode Transmissive
Optimal View Full View
Touch Screen Custom
Module Dimensions (mm) (W x H x D) 38.20×181.47
Active Area (mm) (W x H) 33.60×170.88
Luminance (cd/m2) 400
Interface MIPI 40-pin
Driver IC JD9365DA-H3
Operational Temperature (°C) -20 ~ +60
Storage Temperature (°C) -30 ~ +70


Manufacturer ISO Certification

ISO certification Tailor Pixels






Quality Verification Processes


2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
