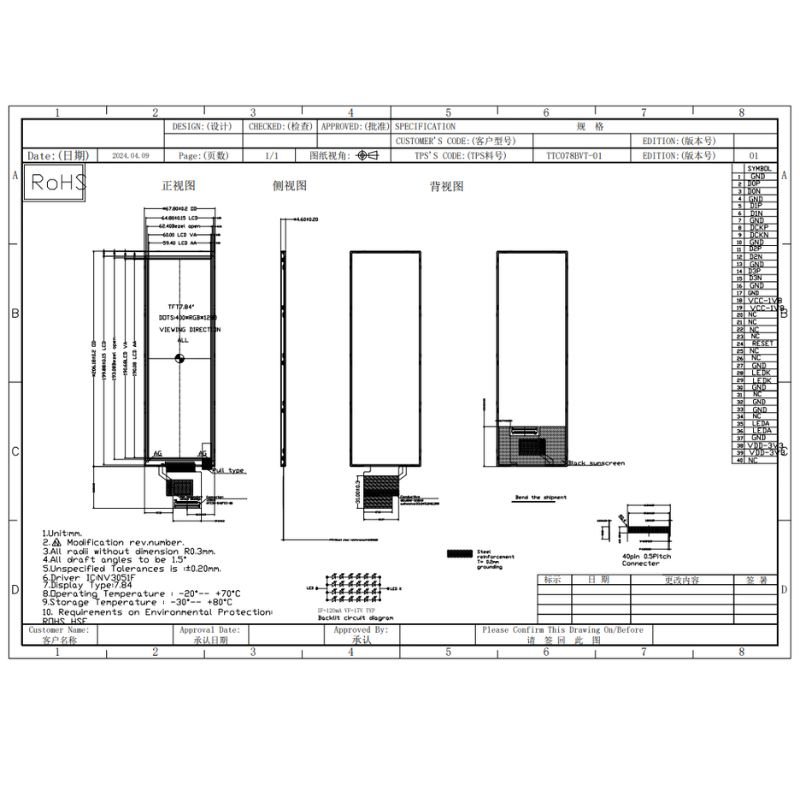

7.84 inch IPS TFT, Stretched Bar LCD, High Brightness

Model: TTZ784VVT-01

Diagonal: 7.84″
Resolution: 400×1280 Pixels
Display Type: IPS
Interface: MIPI
Driver IC: OTA7290B
Touch Option: Capacitive Touch
Download Resources: Specification | 2D Rendering

$16.00$26.00



TTZ784VVT-01 | 7.84 inch Bar LCD | IPS TFT | Hight Brigtness 850 cd/m2 | MIPI |
The stretched bar LCD allows more information on the same screen.
With the high brightness feature, the bar LCD module is popularly adopted in outdoor commercial devices and the auto industry.
This Liquid Crystal Display has a built-in NV3051F1 controller.
Optional custom solution for brightness, operation temperature, and touch panels.
The material is RoHS-compliant.



Diagonal (inch) 7.84″
Resolution (pixel) 400×1280
Display Type IPS
Display Mode Transmissive
Optimal View Full View

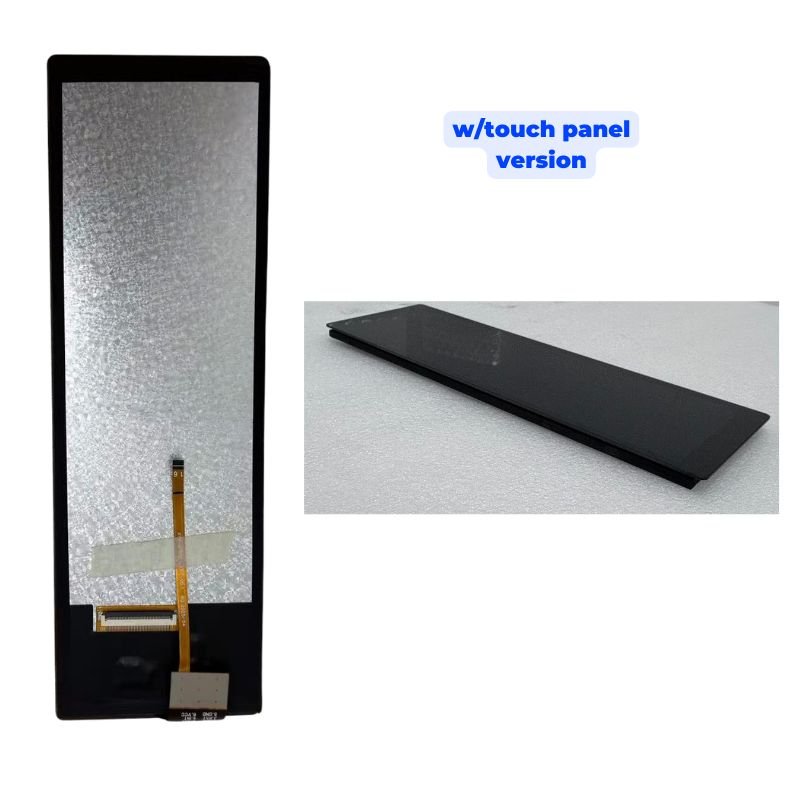

Touch Screen Option Capacitive Touch
Module Dimensions (mm) (W x H x D) 67.80×205.78×4.64
Active Area (mm) (W x H) 59.40×190.08
Luminance (cd/m2) 900
Interface MIPI
Driver IC OTA7290B
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80



Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes



2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
