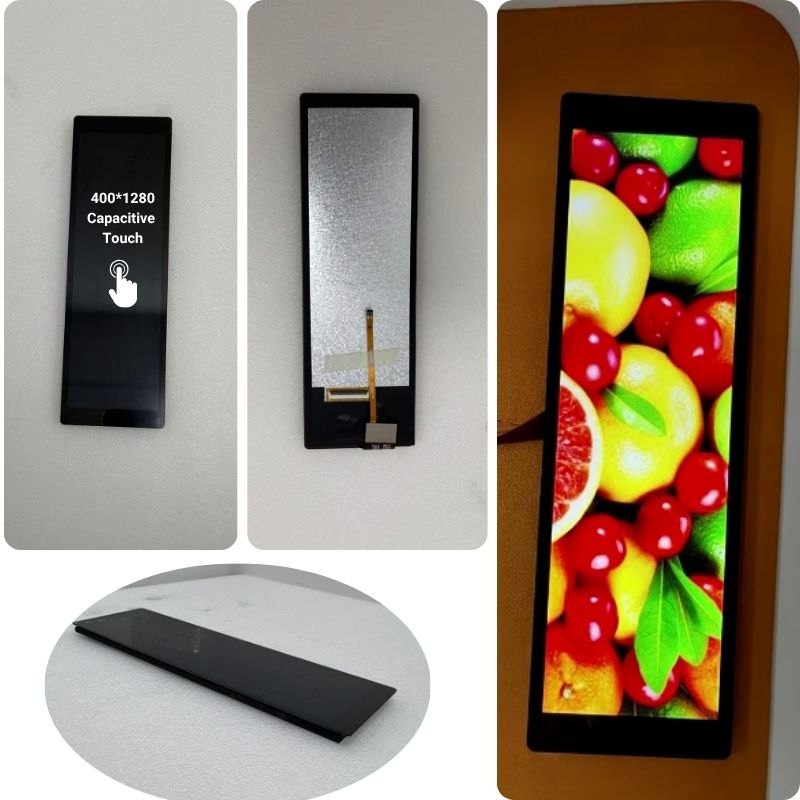

7.84 inch IPS TFT, With Capacitive Touch, LVDS, 400×1280

Model: TTZ784BVT-02C

Diagonal: 7.84″
Resolution: 400×1280 Pixels
Display Type: IPS
Touch Screen: Capacitive Touch
Interface: LVDS
Driver IC: NV3051F1
Download Resources: Specification | 2D Rendering | Catalog

$25.00$38.00



TTZ784BVT-02C | 7.84 inch Bar LCD | IPS TFT | With Capacitive Touch Screen | Hight Brigtness 720 cd/m2 | LVDS |
The stretched bar LCD allows more information on the same screen.
With the high brightness feature, the bar LCD module is popularly adopted in outdoor commercial devices and the auto industry.
This Liquid Crystal Display has a built-in NV3051F1 controller.
The material is RoHS-compliant.



Diagonal (inch) 7.84
Resolution (pixel) 400×1280
Display Type IPS
Display Mode Transmissive
Optimal View ALL
Touch Screen Capacitive Touch Screen

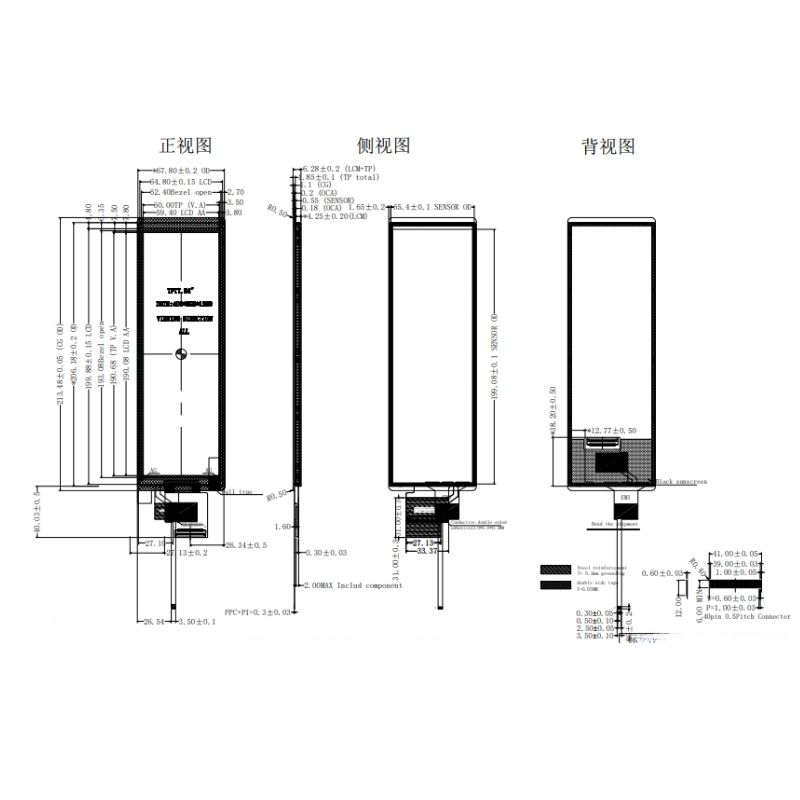

Module Dimensions (mm) (W x H x D) 70.0×210.0x6.33
Active Area (mm) (W x H) 59.40×190.08
Luminance (cd/m2) 720
Interface LVDS
Driver IC NV3051F1
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80



Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes



2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
