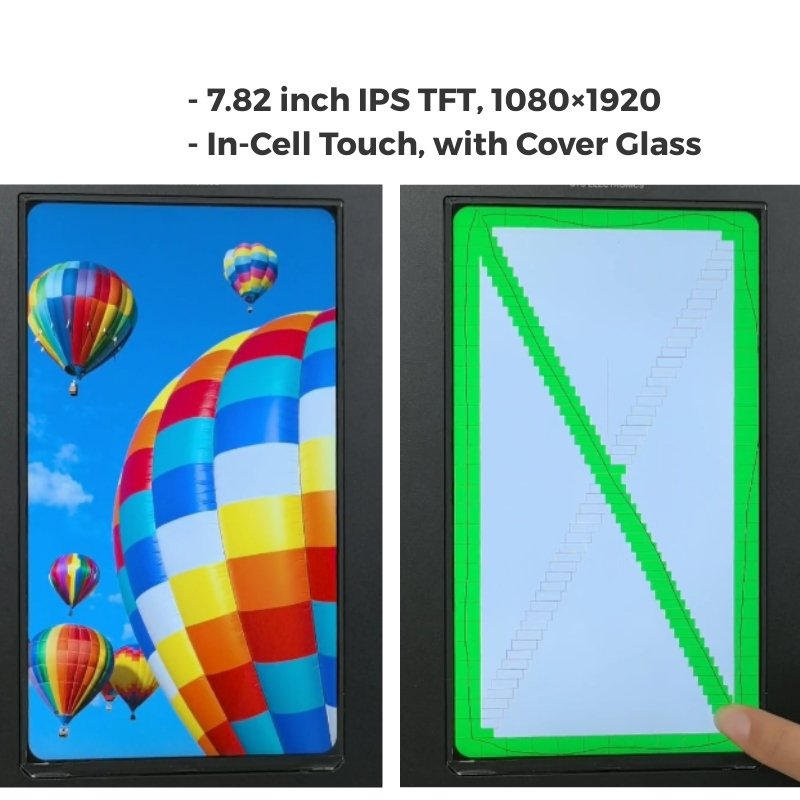

TTX782XVT-01CG | 7.82-inch IPS TFT | 1080×1920 (FHD+) | MIPI | In-cell Touch | with Cover Glass |
Premium 7.82-inch IPS TFT LCD with 1080×1920 Full HD+ resolution (9:16 portrait mode), delivering ultra-sharp visuals and vibrant colors.
Features a high-speed MIPI interface for smooth performance in automotive displays, industrial HMIs, medical equipment, and smart devices.
With In-cell Touch and has a cover glass for easy assembly.
The IPS panel ensures wide viewing angles and vibrant colors.
The material is RoHS-compliant.
| Diagonal (inch) | 7.82 |
| Resolution (pixel) | 1080×1920 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | In-cell |

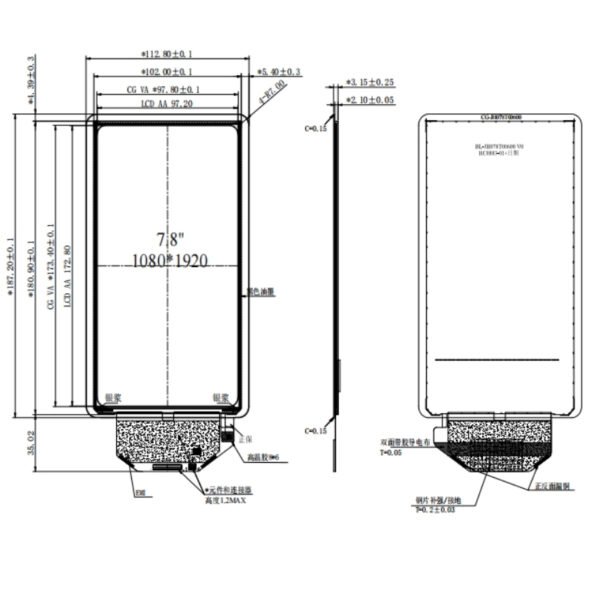

| Module Dimensions (mm) (W x H x D) | 112.8×187.2×3.15 |
| Active Area (mm) (W x H) | 97.2×172.8 |
| Luminance (cd/m2) | 280 typ |
| Interface | MIPI |
| Driver IC | TBD |
| Operational Temperature (°C) | -30 ~ +80 |
| Storage Temperature (°C) | -30 ~ +80 |
