7.6-inch LCD, 800×800, High Brightness, MIPI, with Touch and HDMI option

Model: TTG076XST-01

Diagonal: 7.6″
Resolution: 800×800 Pixels
Display Type: IPS
Interface: MIPI (HDMI board option)
Driver IC: ILI9881C
Touch Option: Capacitive Touch Screen
Download Resources: Specification | 2D Rendering

$35.00$61.00

TTG076XST-01 | 7.6 inch Square LCD | | 800×800 Pixels | MIPI | High Brightness | With HDMI option
This small square touch display provides high brightness and is designed for control panel.
This Liquid Crystal Display has a built-in ILI9881C controller.
Optional with capacitive touchscreen.
The material is RoHS-compliant.



Diagonal (inch) 7.6
Resolution (pixel) 800×800
Display Type IPS
Display Mode Transmissive
Optimal View Full View
Touch Screen Optional

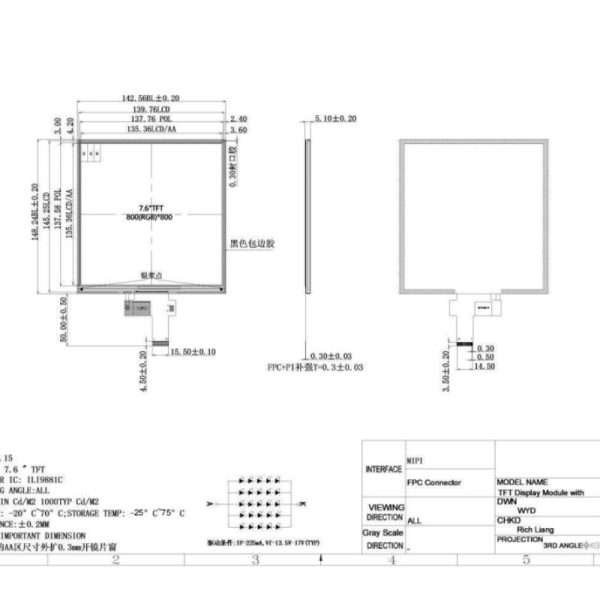

Module Dimensions (mm) (W x H x D) 142.56 x148.24 x5.1
Active Area (mm) (W x H) 135.36 x 135.36
Luminance (cd/m2) 1000
Interface MIPI (HDMI board option)
Driver IC ILI9881C
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -25 ~ +75



Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes



2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
