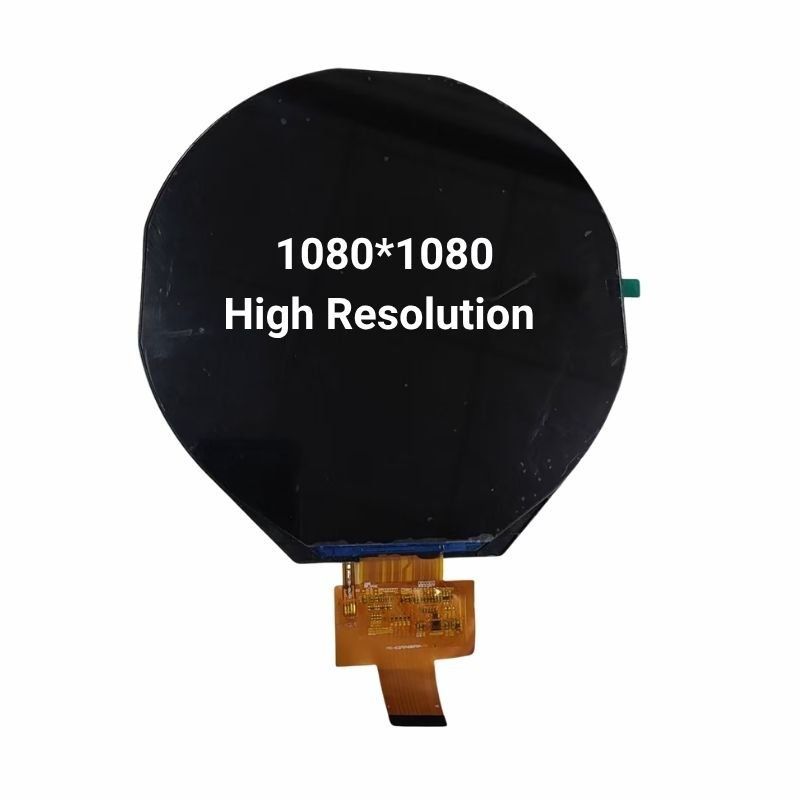

Upgrade your control panel with the TTC070TRS-01, a 7-inch round touch display that delivers stunning high resolution (1080×1080) for crisp, vibrant visuals.
Key Features:
Full-View Display – Wide viewing angles for clear visibility from any direction.
LVDS Interface – High-speed data transmission for seamless performance.
RoHS-Compliant – Environmentally friendly and safe for commercial use.
Ideal for HMI round panel, control panels, and smart home devices, this round LCD screen combines a sleek design.
| Diagonal (inch) | 7.0″ |
| Resolution (pixel) | 1080×1080 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Custom |

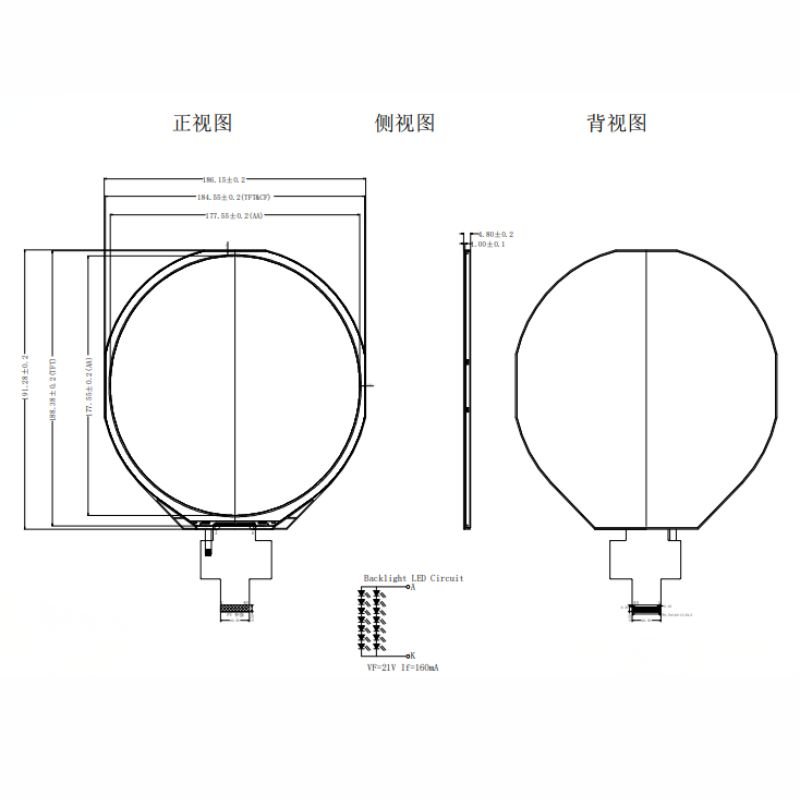

| Module Dimensions (mm) (W x H x D) | 186.15*247.7*4.8 |
| Active Area (mm) (W x H) | 177.552 ×177.552 |
| Luminance (cd/m2) | 400 typ |
| Interface | LVDS |
| Driver IC | FL5893 |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
