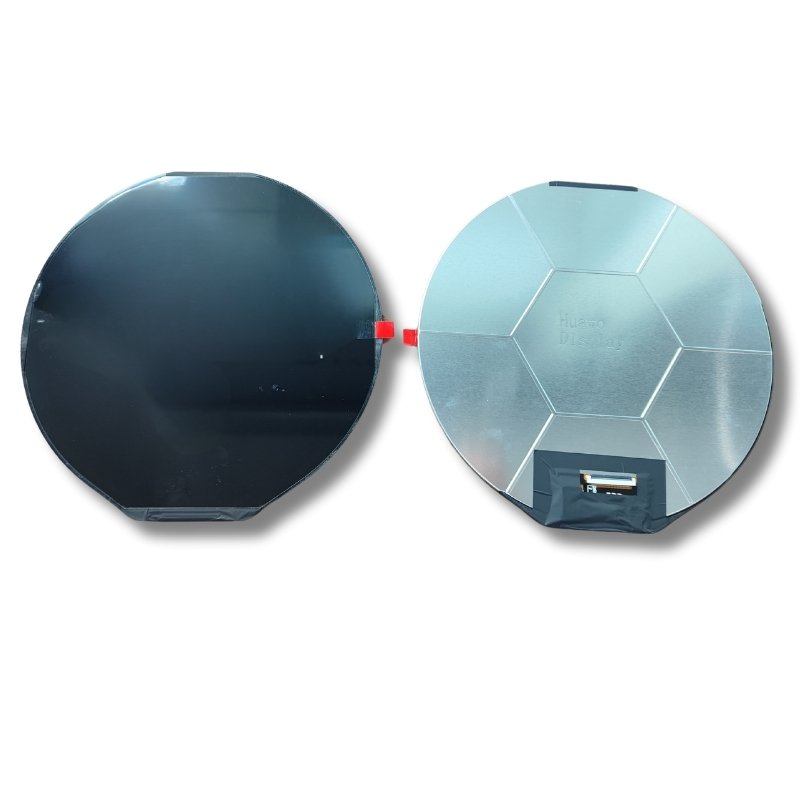

TTH070XRS-01 | 7- inch Round Touch Display | High Resolution 1080×1080 | LVDS
Upgrade your control panel with the TTH070XRS-01, a 7-inch round touch display that delivers stunning high resolution (1080×1080) for crisp, vibrant visuals.
– Full-View Display – Wide viewing angles for clear visibility from any direction.

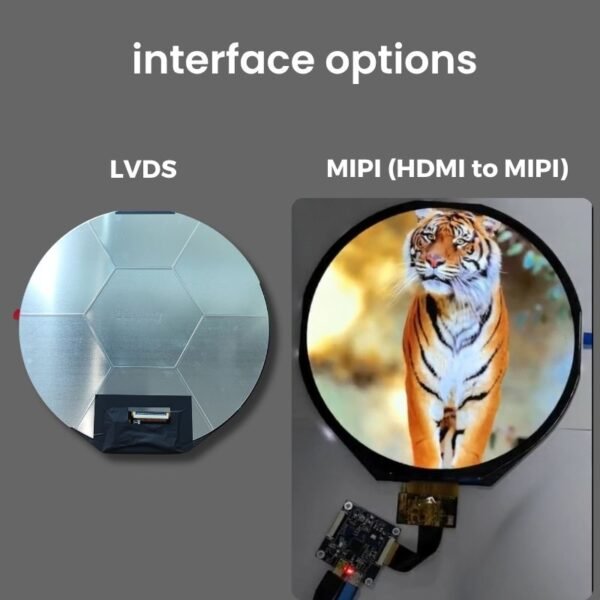

– LVDS Interface – High-speed data transmission.
– RoHS-Compliant – Environmentally friendly and safe for smart home, commercial use.
Ideal for HMI round panel, control panels, and smart home devices, this round LCD screen combines a sleek design.
| Diagonal (inch) | 7.0″ |
| Resolution (pixel) | 1080×1080 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Custom |
| Module Dimensions (mm) (W x H x D) | 191.58×192.75×5.27 |
| Active Area (mm) (W x H) | 177.47 ×177.47 |
| Luminance (cd/m2) | 800 typ |
| Interface | LVDS |
| Driver IC | TBD |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
