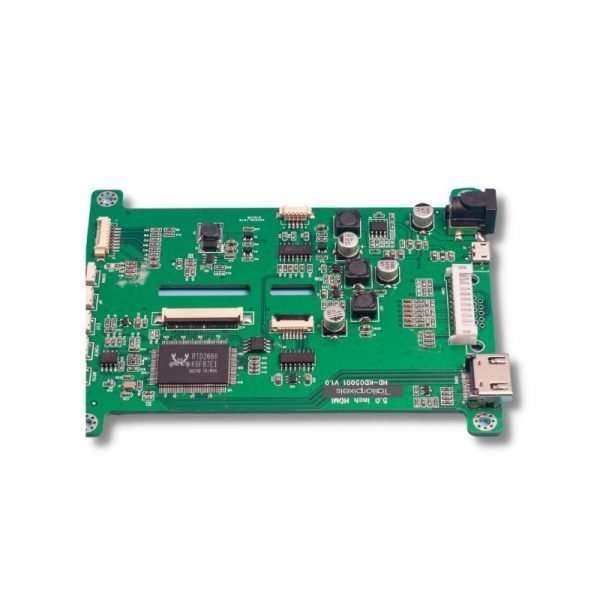

5.0 inch TFT Controller Board, RGB to HDMI/VGA

Model: TBK050HD-01

Function: 5.0″ LCD Controller
Interface : RGB to HDMI/VGA
CTP touch: Micro-USB
Key: 5key+interface
Audio: Support
PCB (W x H x D) (mm): 120.8×92.0x1.6
Download Resources: Specification | 2D Rendering

$12.39$15.82



TBK050HD-01 TFT Controller Board | RGB to HDMI and RGB to VGA converter |
Support 5.0- inch TFT Displays, video signals and resolution to 800×480 |
Spport Capacitive Touchscreen and Speaker |
The TFT board can be compatible with our 5.0-inch TFT TN module TTX050BHS-01 and IPS module TTX050BHS-03;
The material is RoHS compliant;
Custom harsh environment versions available with extended temperature coating;
This controller board is for testing, evaluating or in final production and DIY HDMI TFT display.



Function 5.0″ LCD Controller
Supply Voltage (V) 12 Typ
Interface RGB to HDMI/VGA
LCM SIZE 5.0″  TFT
LCM Resolution supported (pixel) 800×480
PCB (W x H x D) (mm) 120.8×92.0x1.6
LCM Backlight Current (mA) 40 Typ
Direct Current (without LCM ) (mA) 80 Typ
LCM connector 40PIN-0.5S
CTP connector 6PIN-1.0S
HDMI connector HDMI-019S
VGA connector 12PIN-2.0P
Key connector 8PIN-1.25S
Speaker connector 4PIN-1.25S
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80



Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes
