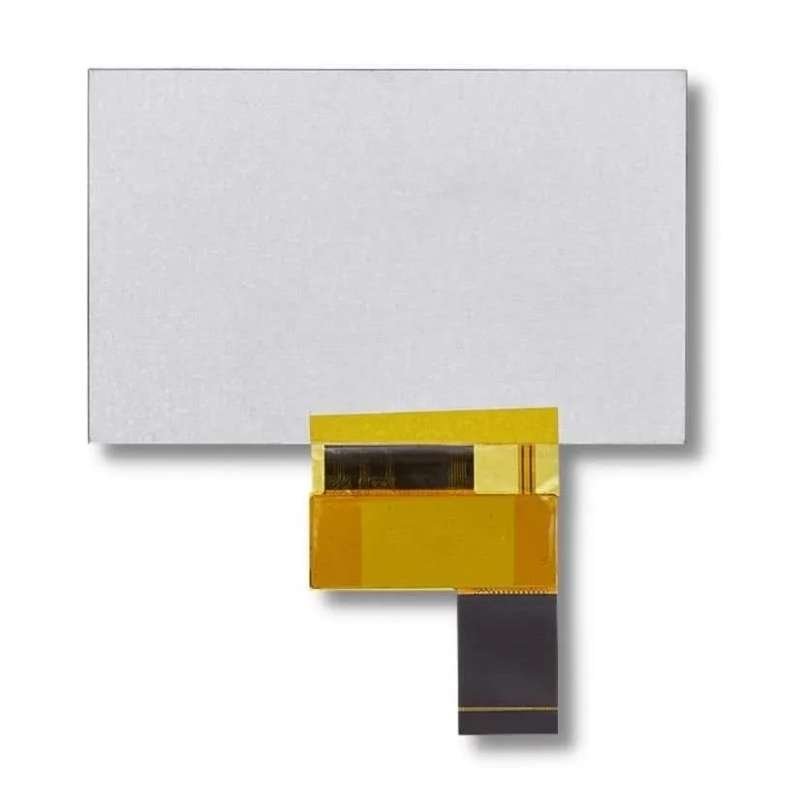

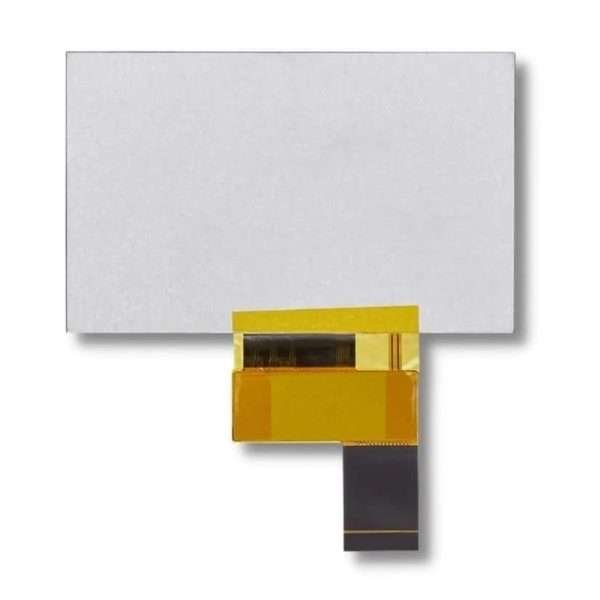

5 inch Sunlight Readable TN TFT, Capacitive Touch Screen Display

Model: TTX050QHI-03

Diagonal: 5.0″
Resolution: 800×480 Pixels
Display Type: TN
Interface: RGB 24bit
Driver IC: ILI5960 | ILI6122
Download Resources: Specification | 2D Rendering



TTX050QHI-03 | 5 inch TN TFT LCD | High Brightness | 800×480 Pixels | RGB 24bit |
The display provide high luminance of 500cd/m2, could provide clear content in the bright ambiance.
This Liquid Crystal Display has a built-in ILI5960 | ILI6122 controller.
Optional custome solution with capacitive or resistive touchscreen.
The material is RoHS compliant.


Diagonal (inch) 5
Resolution (pixel) 800×480
Display Type TN
Display Mode Transmissive
Optimal View 12:00
Touch Screen Optional
Module Dimensions (mm) (W x H x D) 120.70×75.90×3.00
Active Area (mm) (W x H) 108.00×64.80
Luminance (cd/m2) 500
Interface RGB 24bit
Driver IC ILI5960 |  ILI6122
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80


Manufacturer ISO Certification

ISO certification Tailor Pixels






Quality Verification Processes


2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading

Additional information

Input Interface / Signal
