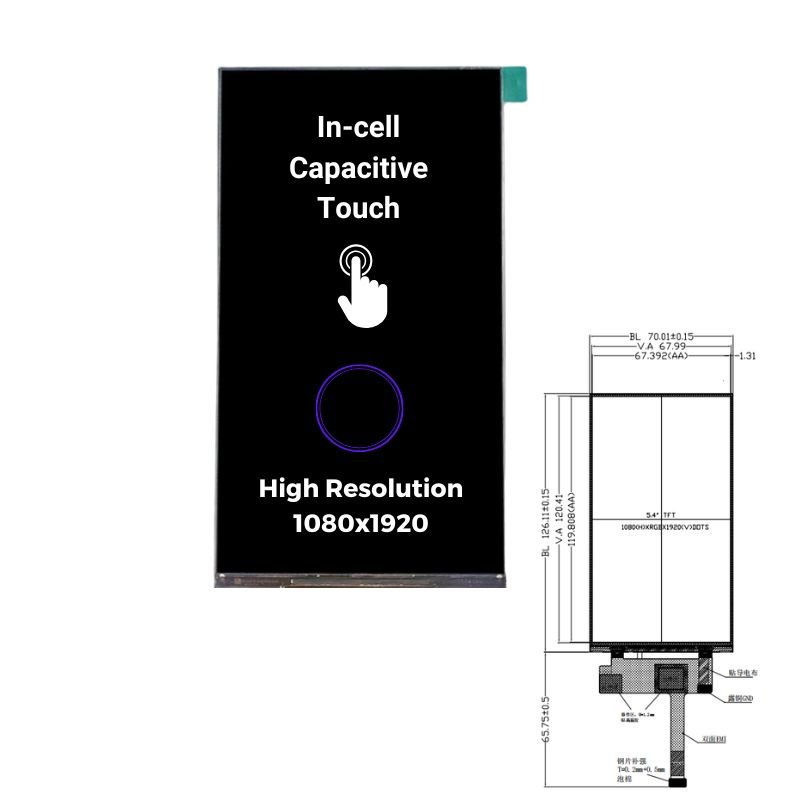

TTH540XVT-01C | 5.4 inch touch display | 1080×1920 Pixels | MIPI |
The vertical display has high-resolution, which is designed to the terminals requiring better appearance performance.
This TFT display provide a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in GC7371 controller.
Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS compliant.
| Diagonal (inch) | 5.4″ |
| Resolution (pixel) | 1080×1920 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | In-cell, capacitive |

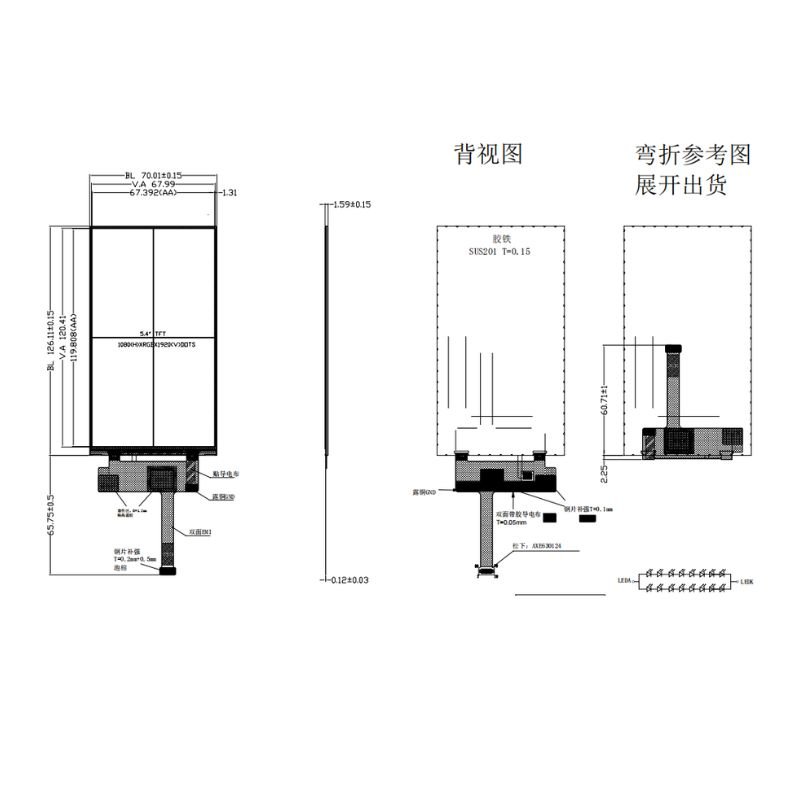

| Module Dimensions (mm) (W x H x D) | 70×126.11×1.59 |
| Active Area (mm) (W x H) | 67.39×119.8 |
| Luminance (cd/m2) | 450 typ. |
| Interface | MIPI |
| Driver IC | GC7371 |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
