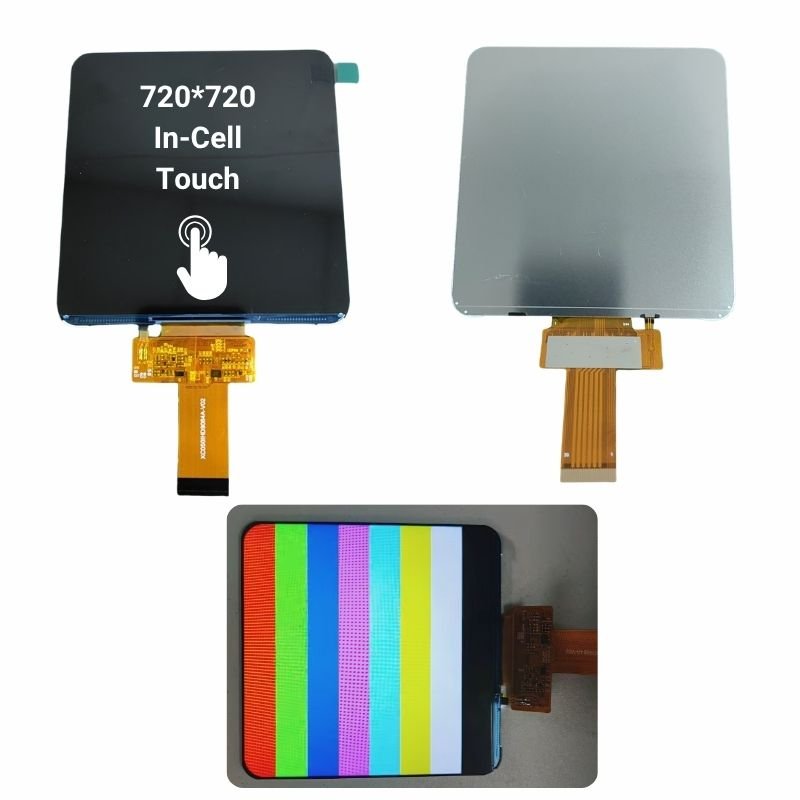

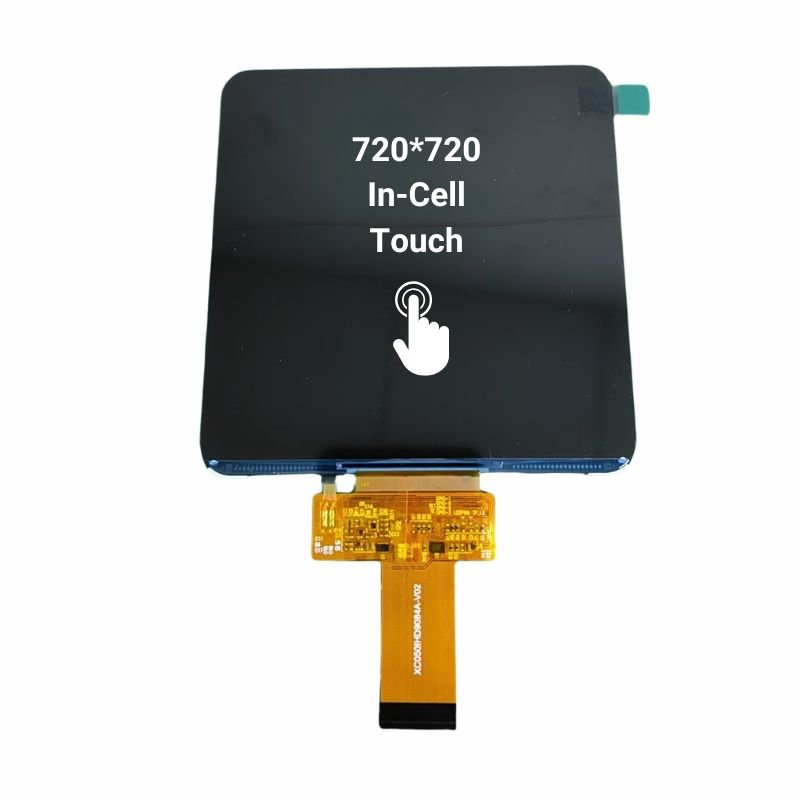

TTC050XSE-01C| 5.0 inch Square LCD | | 720×720 Pixels | MIPI |
The 5-inch display is designed with unique outline in Square, specially for commecial and wearable terminals.
This TFT display provide a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in JD9365TX controller.
Optional custome solution with capacitive touchscreen.
The material is RoHS compliant.
| Diagonal (inch) | 5 |
| Resolution (pixel) | 720×720 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | incell |

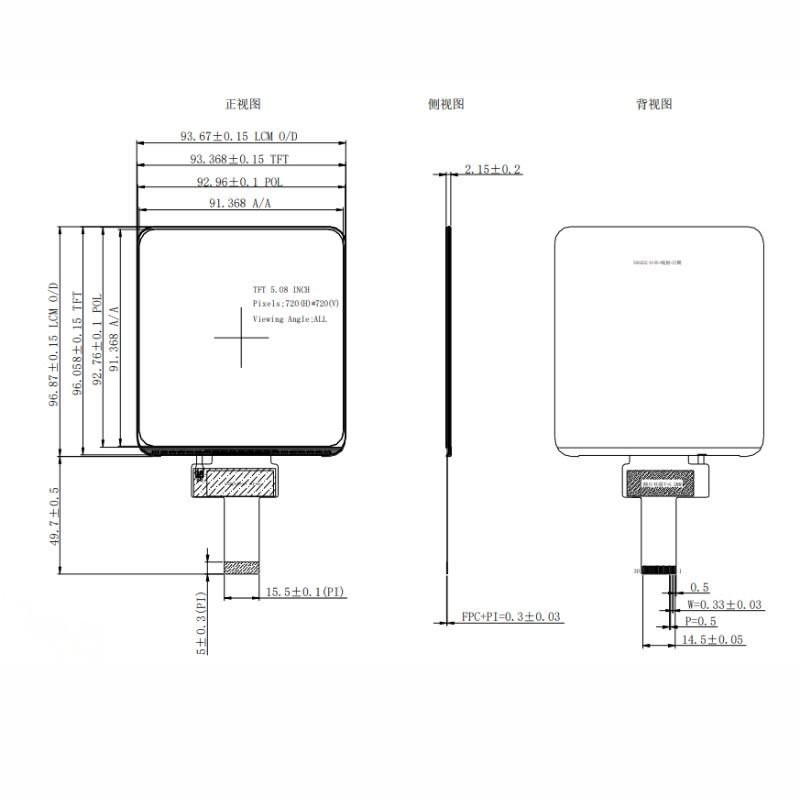

| Module Dimensions (mm) (W x H x D) | 93.67*96.87*2.15 |
| Active Area (mm) (W x H) | 91.368*91.368 |
| Luminance (cd/m2) | 460 typ |
| Interface | MIPI |
| Driver IC | JD9365TX |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
