46.6 inch Stretched Bar Display, 3840×120, Advertising Player

Model: TDY466ZAB-01

Diagonal: 46.6″
Resolution: 3840×120 Pixels
Screen Type: a-Si TFT-LCD
Aspect Ratio: 32:1
Touch Screen Option: Custom
Download Resources: Specification | 2D Rendering



TDY466ZAB-01 | 46.6 inch Stretched Bar Display | 3840×120 | Advertising Player
Ultra-thin and ultra-light design, easy to use, ultra-thin thickness, ultra-narrow frame.

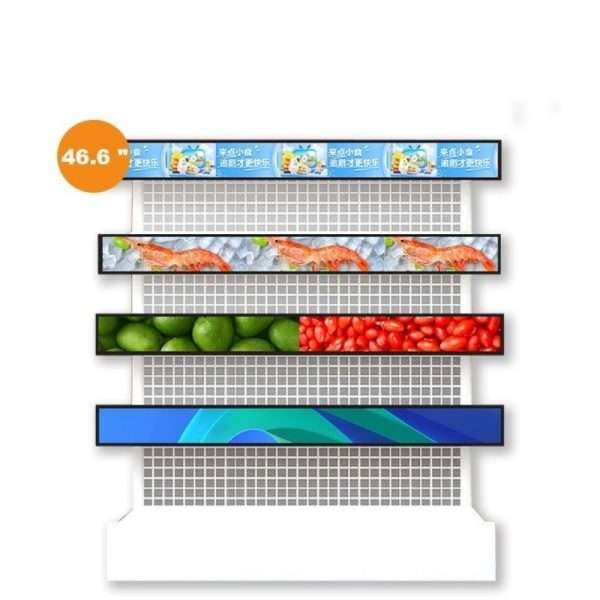

It is designed for advertising in Supermart, and indoor digital signage applications.
This TFT display provide a full view, people could see the quality display image from any angle.
Optional custom solution with capacitive touchscreen.
The material is RoHS compliant.



Display Screen Size 46.6 inch
Active Area 1183.68(H)x37(V)
Outline 1202.4×52.7×20.3mm
Screen Type a-Si TFT-LCD
Pixel Number 3840×120
Aspect Ratio 32:1
Luminance 500 cd/m2
Contrast Ratio 3000:1
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Mainboard CPU T972/T950x2 quad-core processor  A55
Ram 2GB
Flash 8GB
O/S Andriod 9.0
Outside Interface Micro USB*1/USB*1/TF
Whole Machine Appearance and Structure  metal plate
Color TYPE-C(12V/2A),Sheet metal buckle wall mount
Peripheral WIFI/Bluetooth V4.0
Power supply DC12V
Power consumption ≦20W
Operating Temperature 0℃~40℃
Storage Temperature -20℃~60℃
Installation method Wall hanging
Net weight TBD





Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes



2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
