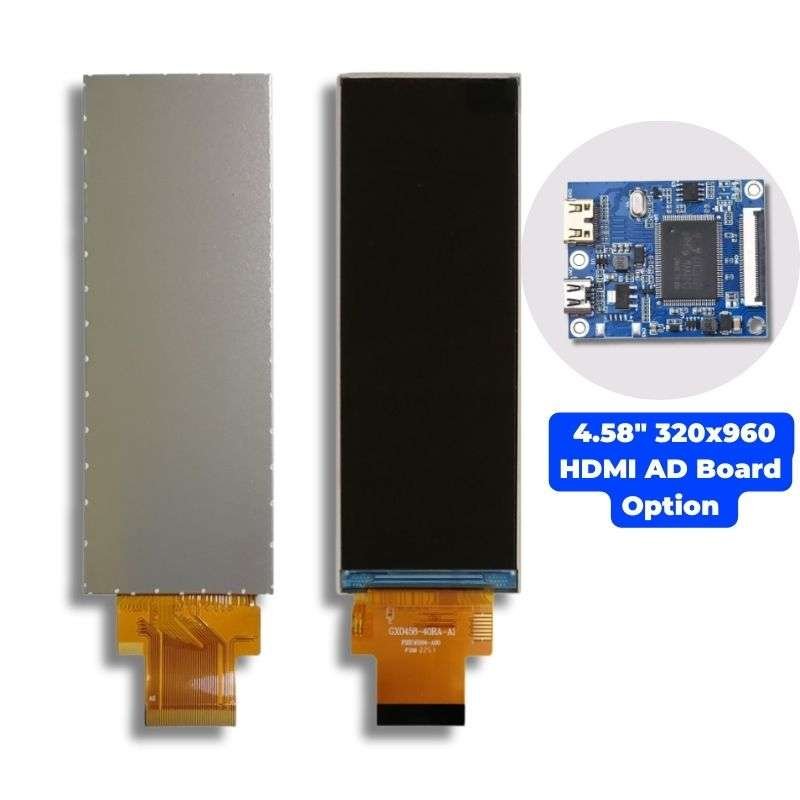

4.58 inch IPS TFT, Stretched Bar LCD, RGB+SPI, 320×960

Model: TTG046XVS-01

Diagonal: 4.58″
Resolution: 320×960 Pixels
Display Type: IPS
Interface: RGB+SPI
Driver IC: ST7701S
Download Resources: Specification | 2D Rendering


TTG046XVS-01 | 4.58 inch Bar LCD | IPS TFT | 320×960 Pixels | RGB+SPI |
The stretched bar LCD allows to display more information on the same screen, is popular adopted in the smart home and auto industry.
This Liquid Crystal Display has a built-in ST7701S controller.
The material is RoHS compliant.


Diagonal (inch) 4.58″
Resolution (pixel) 320×960
Display Type IPS
Display Mode Transmissive
Optimal View Full View
Touch Screen Optional

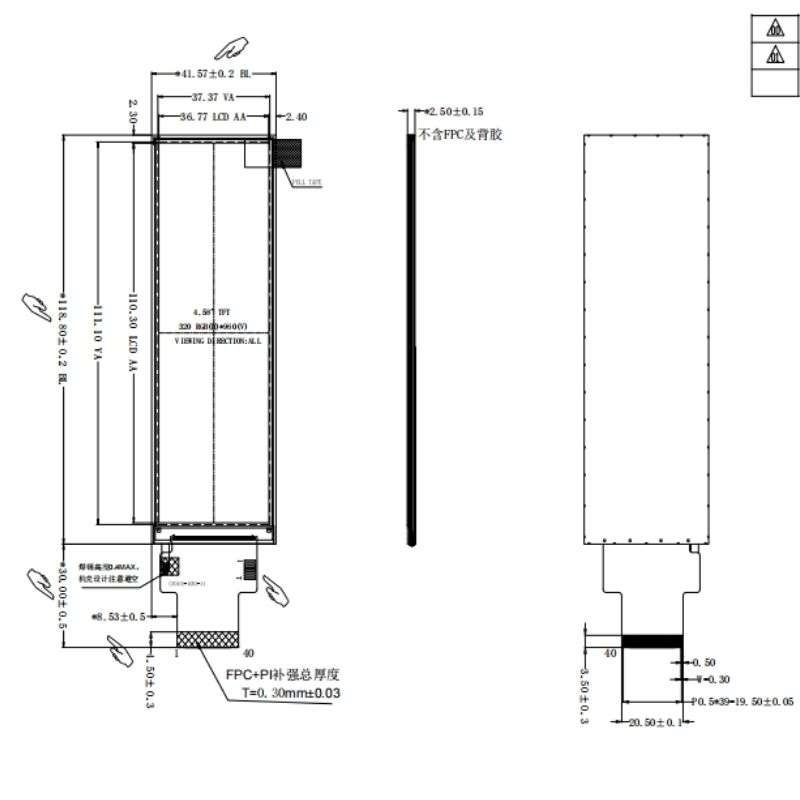

Module Dimensions (mm) (W x H x D) 41.57 x118.8 x 2.5
Active Area (mm) (W x H) 36.77 x110.30
Luminance (cd/m2) 300
Interface RGB+SPI
Driver IC  ST7701S
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80


Manufacturer ISO Certification

ISO certification Tailor Pixels






Quality Verification Processes


2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
