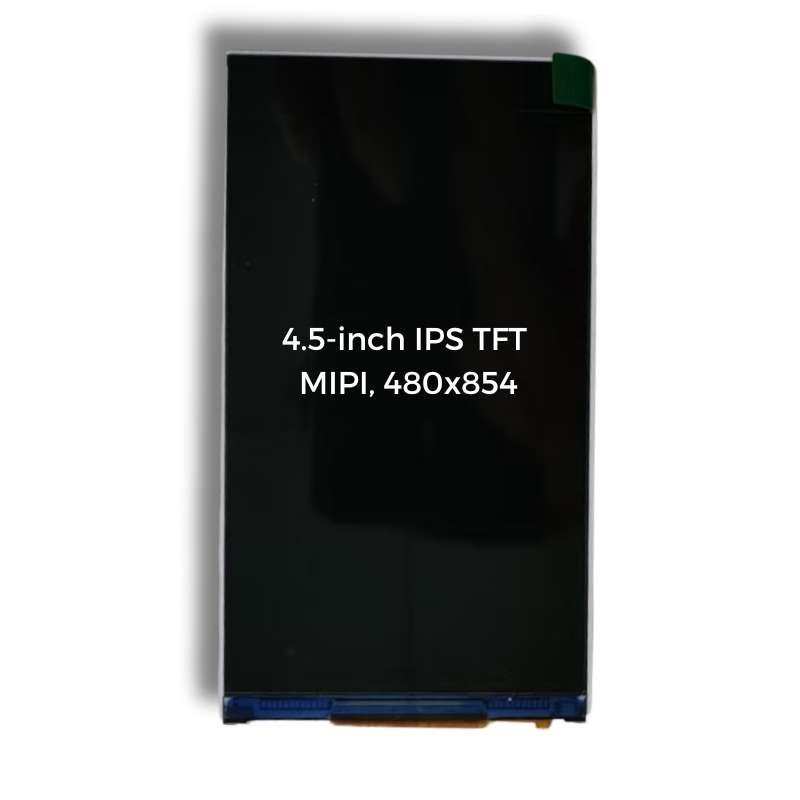

TTL045XVS-01 | 4.5 inch IPS TFT | Bar Type | MIPI | 480×854 pixels |
This 4.5-inch display features a sharp resolution of 480×854 pixels, with an impressive contrast ratio of 800:1, it is commonly used in commercial devices.
Optional custom solution with capacitive touchscreen.
FPC can also be customized according to customer requirements, such as FPC structure, interface definition, etc.
The IPS technology provides a full viewing angle, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in ST7701S controller.
The material is RoHS-compliant.
| Diagonal (inch) | 4.5″ |
| Resolution (pixel) | 480×854 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Custom |

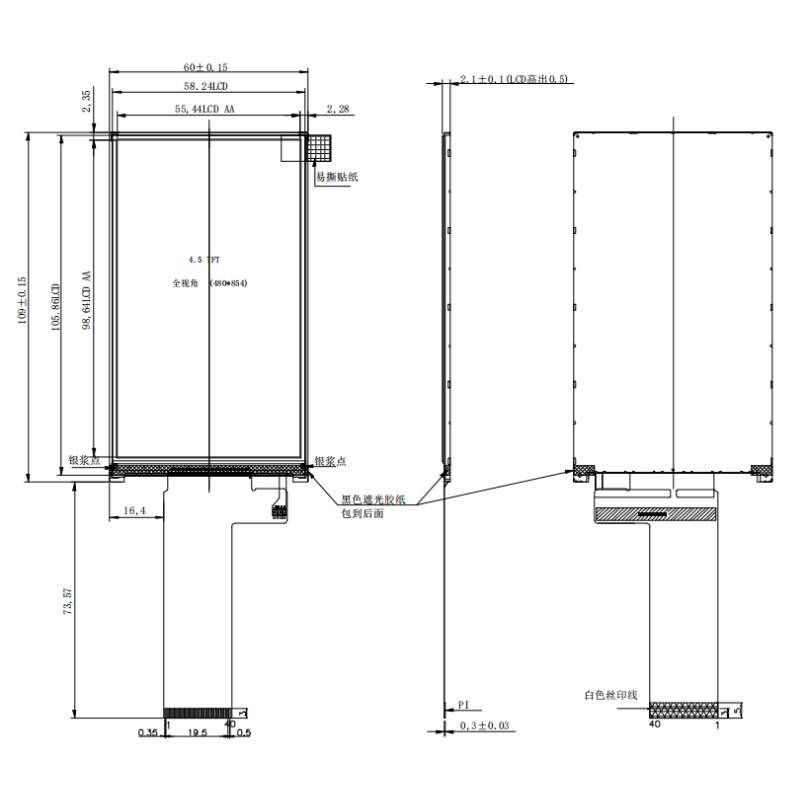

| Module Dimensions (mm) (W x H x D) | 60x109x2.1 |
| Active Area (mm) (W x H) | 55.44×98.64 |
| Luminance (cd/m2) | 300 |
| Interface | MIPI |
| Driver IC | ST7701S |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
