36.6 inch IPS Bar LCD, 1920×290, LVDS, High Brightness, With Cover Glass

Model: TTR366AHT-02G

Diagonal: 36.6″
Resolution: 1920×290 Pixels
Display Type: IPS
Interface: LVDS
Driver IC: TBD
Download Resources: Specification | 2D Rendering

TTR366AHT-02G | 36.6 inch Stretched Display | 1920X290 Pixels | LVDS | High Brightness| With Cover Glass |

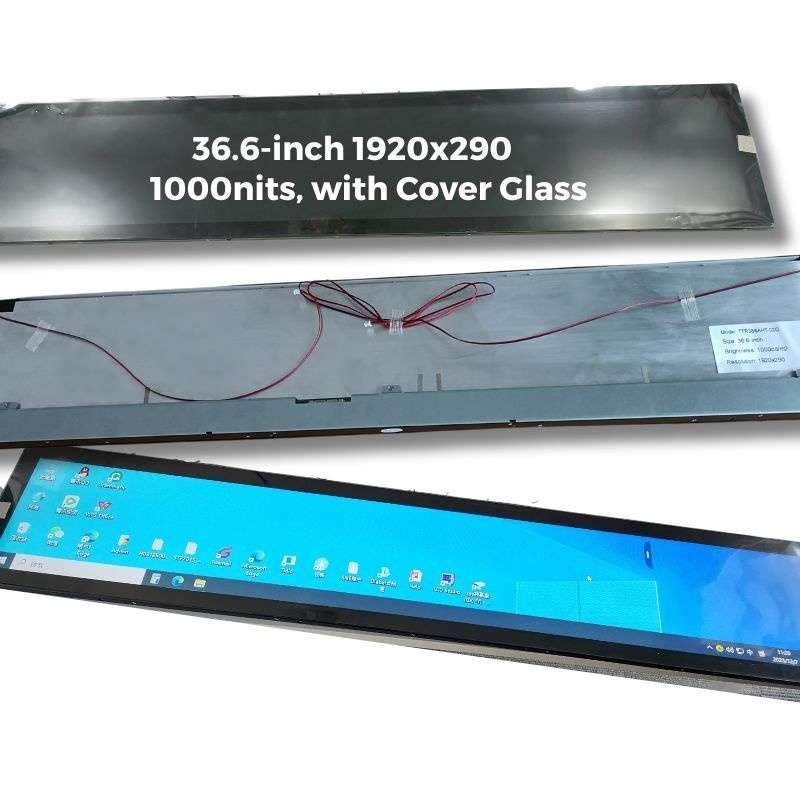

36.6″ stretched display with cover glass is commonly used in the subway, train, and other transportation. Its perfect length and width provide enough space for the routine and advertisement.

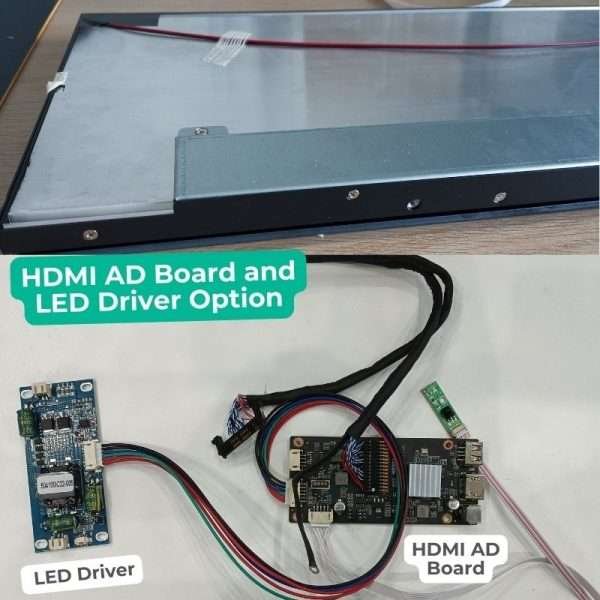

HDMI adapter board can convert the content to suit the resolution.
Cover glass of 3mm and 7H
Optional custom solution with capacitive touchscreen.
The material is RoHS-compliant.



Diagonal (inch) 36.6″
Resolution (pixel) 1920×290
Display Type IPS
Display Mode Transmissive
Optimal View Full View
Touch Screen Custom

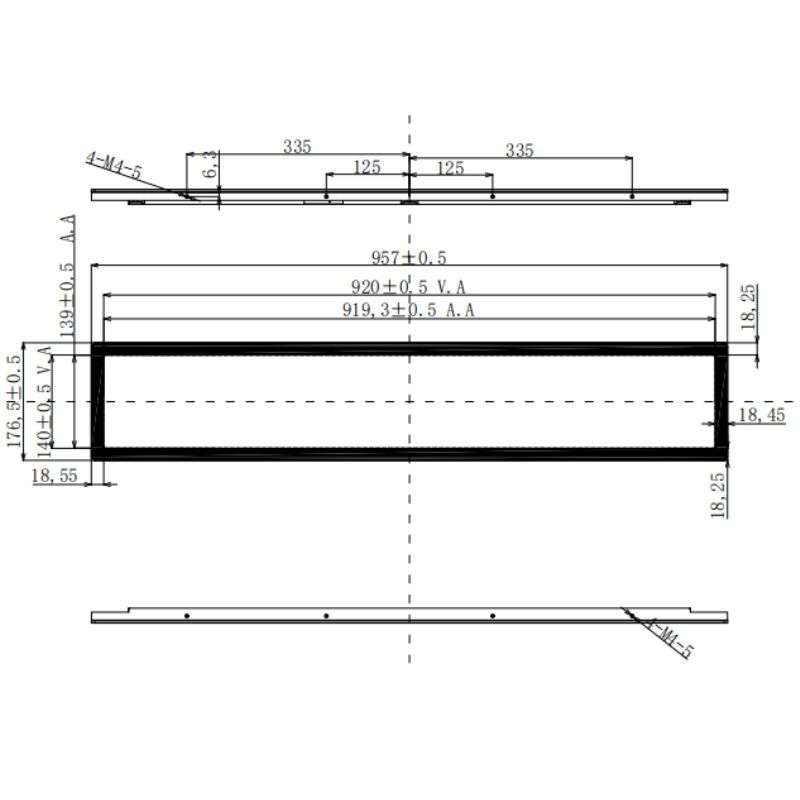

Module Dimensions (mm) (W x H x D) 957.0*176.5*22.4
Active Area (mm) (W x H) 919.296*138.9
Luminance (cd/m2) 1000
Interface LVDS
Driver IC TBD
Operational Temperature (°C) -20 ~ +60
Storage Temperature (°C) -30 ~ +80



Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes



2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
