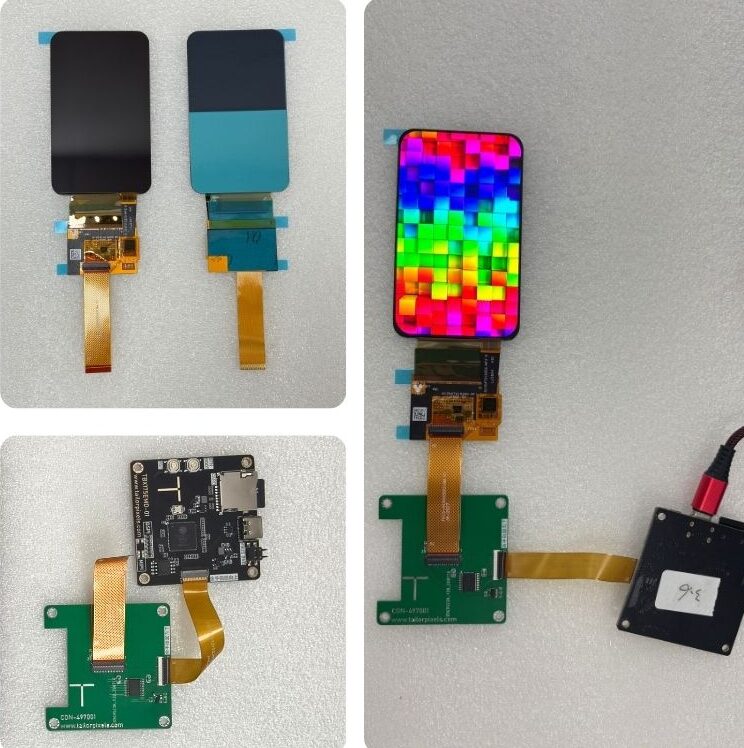

TOH360XVT-01C | 3.6-inch Bar AMOLED | 604×1024 Pixels | With Capacitive Touch Screen | MIPI |
display offering 604×1024 high resolution, MIPI interface, with rich color depth, deep contrast, and ultra-thin form factor.
This display has a built-in SD5207 controller.
The material is RoHS-compliant.
| Diagonal (inch) | 3.6 |
| Resolution (pixel) | 604×1024 |
| Display Type | AMOLED |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | On-Cell Touch |
| Module Dimensions (mm) (W x H x D) | 47.56 ×80 .11×0 .85 |
| Active Area (mm) (W x H) | 45.66 ×77 .41 |
| Luminance (cd/m2) | 800 typ |
| Interface | MIPI |
| Driver IC | CH13726A |
| Operational Temperature (°C) | -30 ~ +70 |
| Storage Temperature (°C) | -40 ~ +85 |
