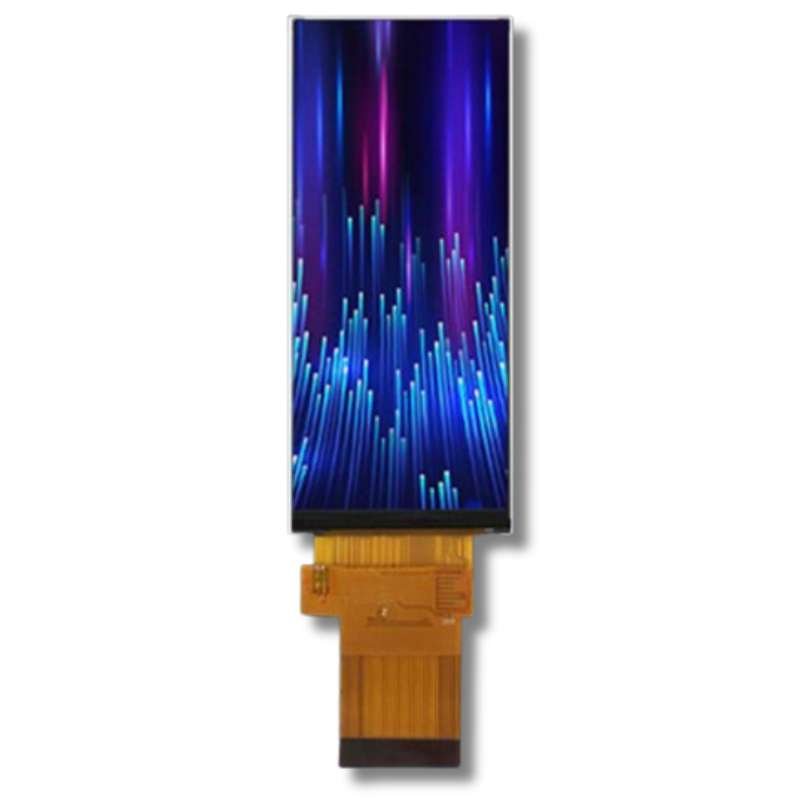

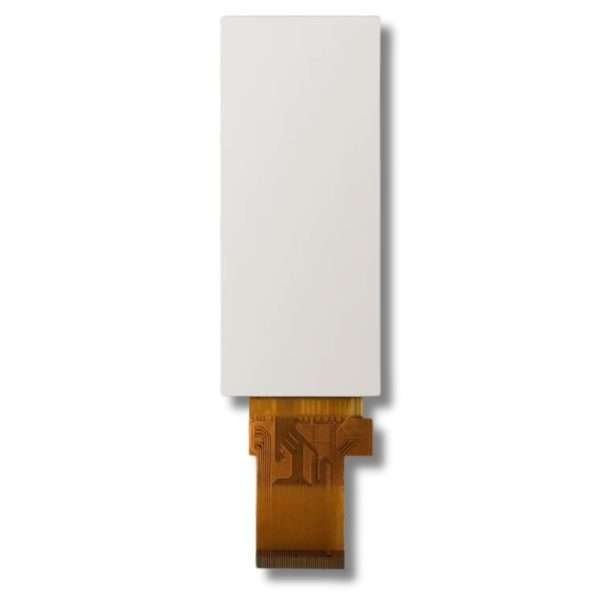

TTC035XVS-01 | 3.5 inch IPS TFT LCD | Bar Type | 340×800 Pixels | RGB+SPI |
The stretched bar LCD allows to display more information on the same screen, is popular adopted in the smart home and auto industry.
This Liquid Crystal Display has a built-in ST7701S controller.
The material is RoHS compliant.
| Diagonal (inch) | 3.5″ |
| Resolution (pixel) | 340×800 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Optional |

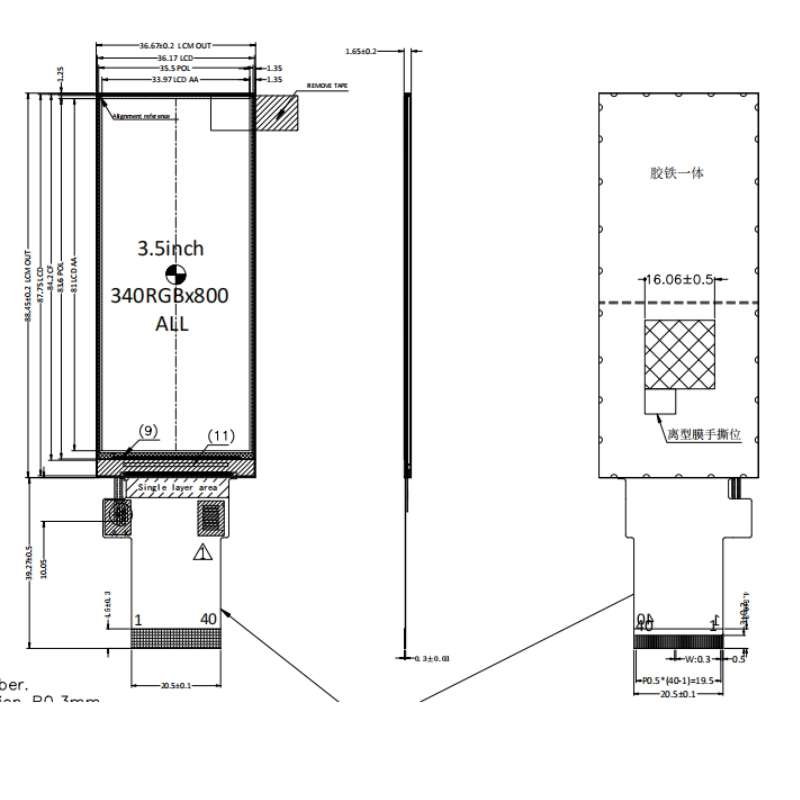

| Module Dimensions (mm) (W x H x D) | 36.67×88.45×1.65 |
| Active Area (mm) (W x H) | 33.97 ×81 |
| Luminance (cd/m2) | 350 typ |
| Interface | RGB+SPI |
| Driver IC | ST7701S |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
