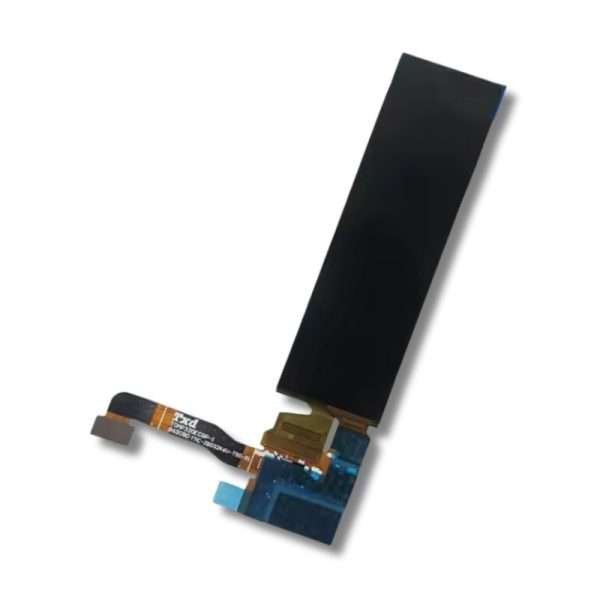

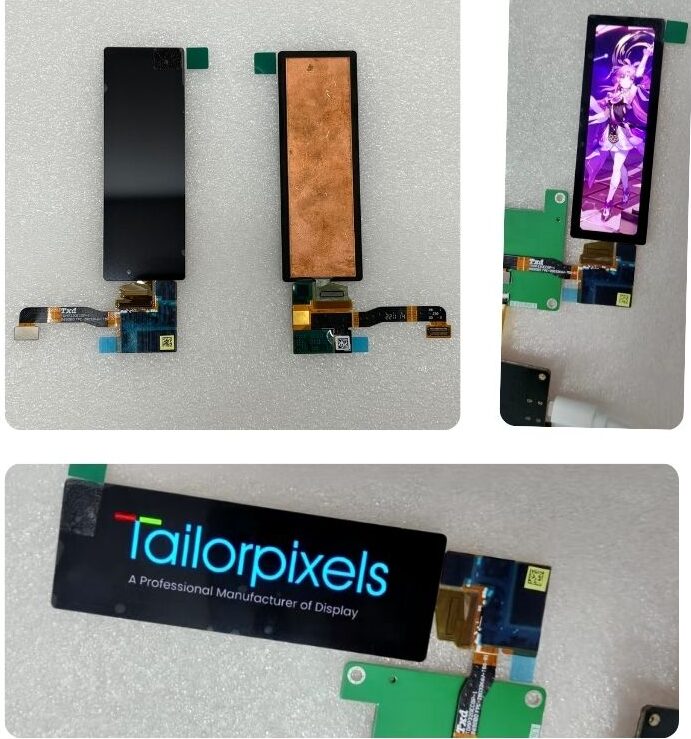

3.23-inch AMOLED | Bar & Thin | On Cell Touch | High Resolution 262×928 Pixels | High brightness of 700nits|
The bar AMOLED has a unique size ratio, which is designed for the terminals requiring a long visual area, such as control panels and commercial devices.
This display has a built-in RM690C0 and ZT2628 controller.
The material is RoHS-compliant.
| Diagonal (inch) | 3.23 |
| Resolution (pixel) | 262×928 |
| Display Type | AMOLED |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Capacitive Touch |

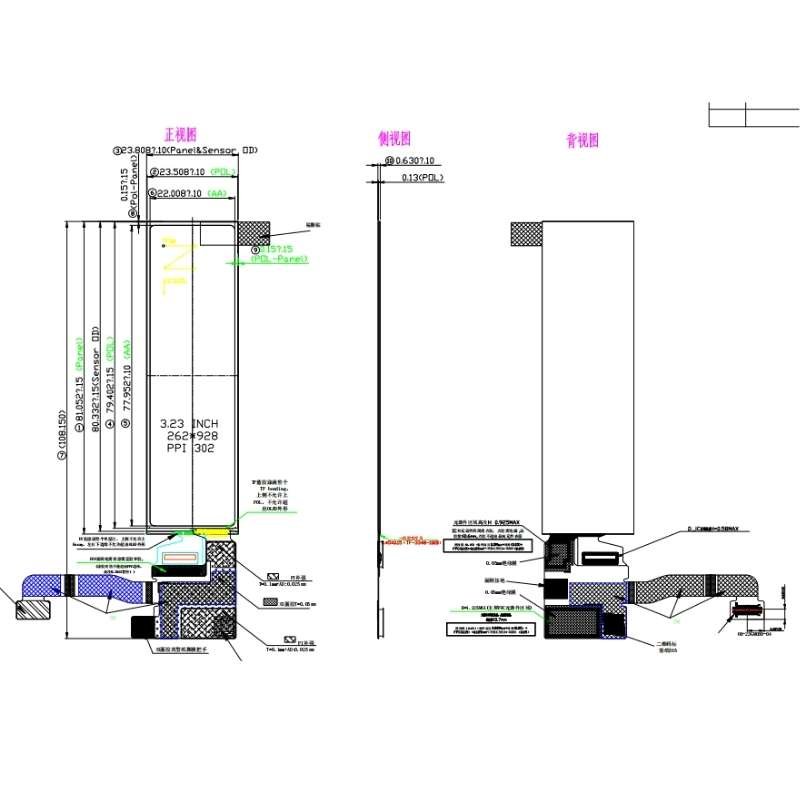

| Module Dimensions (mm) (W x H x D) | 23.80 ×81.05×0.63 |
| Active Area (mm) (W x H) | 22.008×77.952 |
| Luminance (cd/m2) | 700 |
| Interface | MIPI/QSPI |
| Driver IC | RM690C0 & ZT2628 |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
