TTC316XVS-01 | 3.16 inch IPS TFT LCD | 320×820 Pixels | RGB+SPI |
The vertical display has unique size ratio, which is designed to accommodate the terminals requiring a long visual area , such as audio display and commercial devices.
This TFT display provide a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in ST7701S controller.
Optional custom solution with capacitive touchscreen.
The material is RoHS compliant.
| Diagonal (inch) | 3.16″ |
| Resolution (pixel) | 320×820 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Optional |

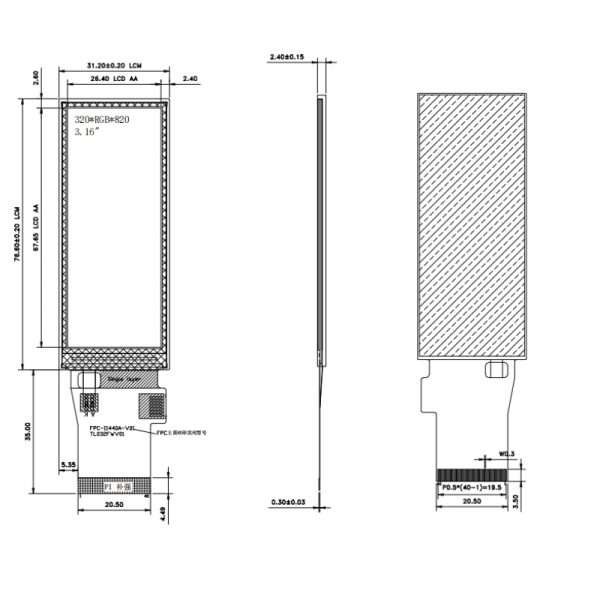

| Module Dimensions (mm) (W x H x D) | 31.2×76.6×2.4 |
| Active Area (mm) (W x H) | 26.4×67.65 |
| Luminance (cd/m2) | 300 typ |
| Interface | RGB+SPI |
| Driver IC | ST7701S |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
