2.85-inch Round LCD, IPS, RGB, MIPI, 480×480

Model: TTH285BRS-01

Diagonal: 2.85″
Resolution: 480×480 Pixels
Display Type: IPS
Interface: RGB/MIPI
Driver IC: ST7701S
Touch Screen Option: Capacitive
Other Options: HDMI adapter

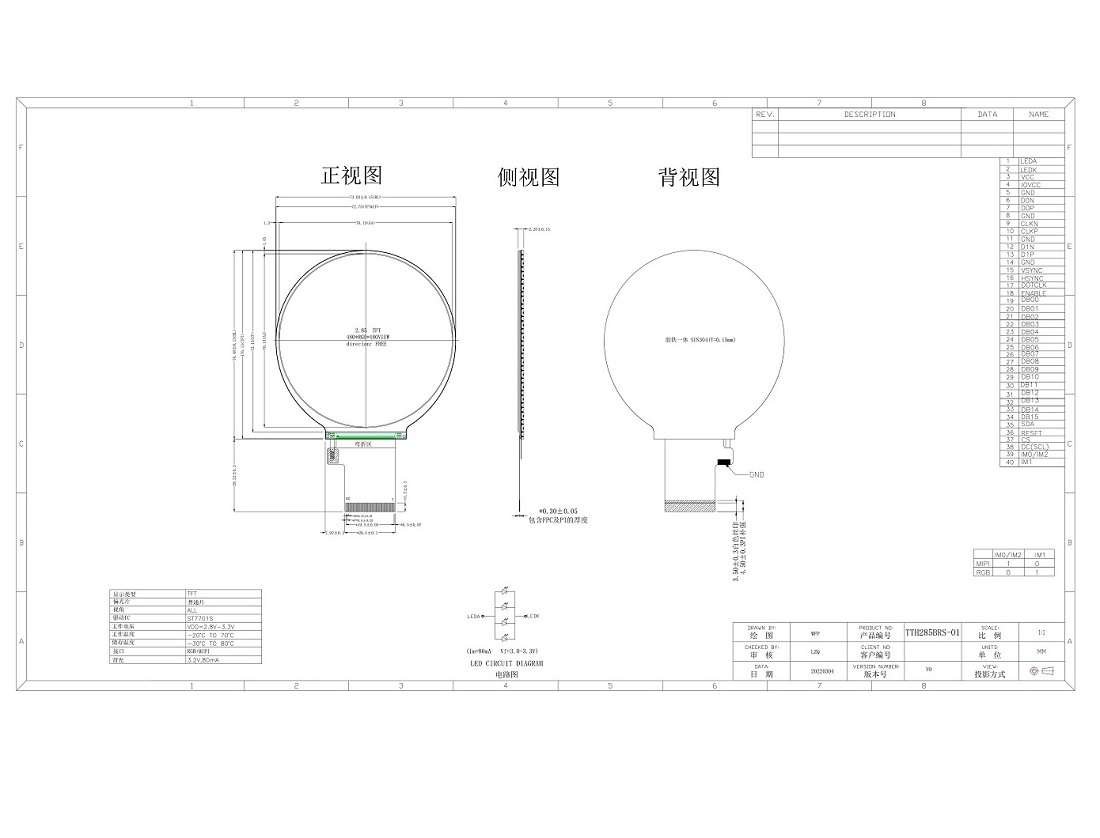

Download Resources: Specification | 2D Rendering | Catalog

$16.00$23.90

TTH285BRS-01 | 2.85″ IPS LCD | Round | 480×480 Pixels | RGB/ MIPI |
This Liquid Crystal Display has a built-in ST7701S controller.
It has the option of capacitive touch and HDMI adapter with USB touch

The material is RoHS-compliant.

Diagonal (inch) 2.85
Resolution (pixel) 480×480
Display Type IPS
Display Mode Transmissive
Optimal View Full View
Touch Screen Custom
Module Dimensions (mm) (W x H x D) 73.03×76.48×2.26
Active Area (mm) (W x H) 70.13×70.13
Luminance (cd/m2) 350
Interface RGB/MIPI
Driver IC ST7701S
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80



Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes



2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
