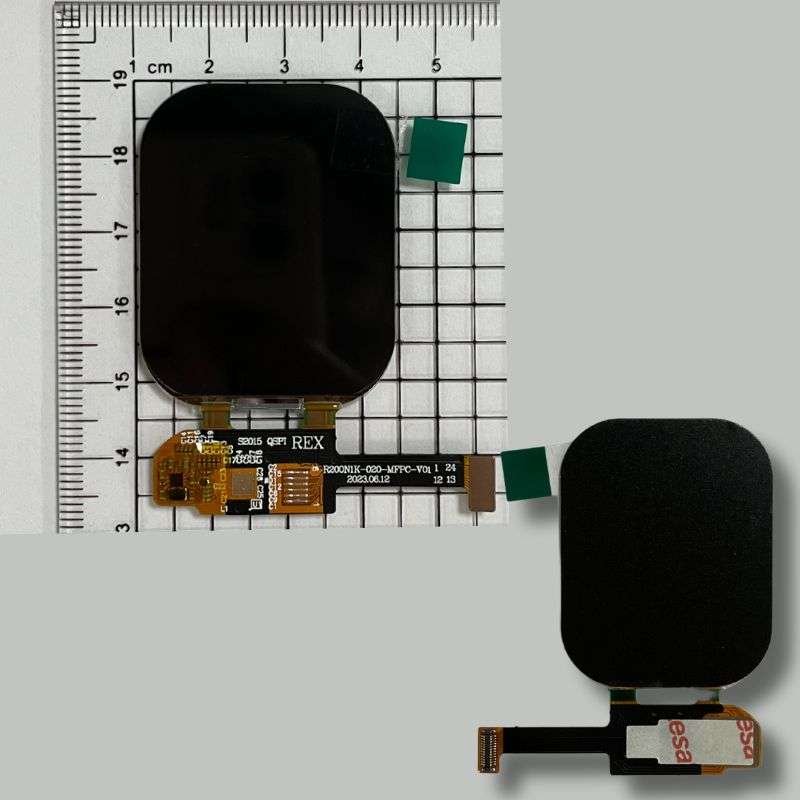

2.01 inch AMOLED Display, 240×296, QSPI

Model: TOH201XVT-01

Diagonal: 2.01″
Resolution: 240×290 Pixels
Display Type: AMOLED
Interface: QSPI
Driver IC:  SH8501A

Touch Screen: Capacitive Touch Optional
Download Resources: Specification | 2D Rendering | Catalog



TOH201XVT-01 | 2.01 inch AMOLED Display | 240×296 Pixels | QSPI |
The AMOLED display is popular adopted in the Handheld and other commercial devices.
This Display has a built-in SH8501A controller.
Optional custom solution with capacitive touchscreen.
The material is RoHS-compliant.


Diagonal (inch) 2.01″
Resolution (pixel) 240×296
Display Type AMOLED
Display Mode Transmissive
Optimal View Full View
Touch Screen Capacitive touchscreen

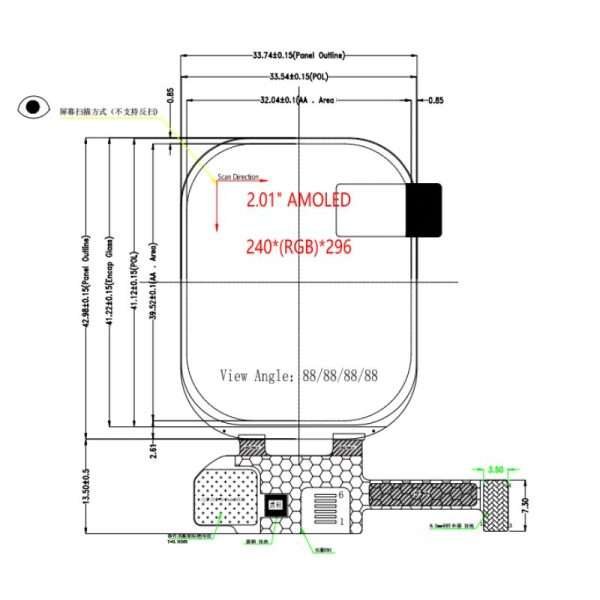

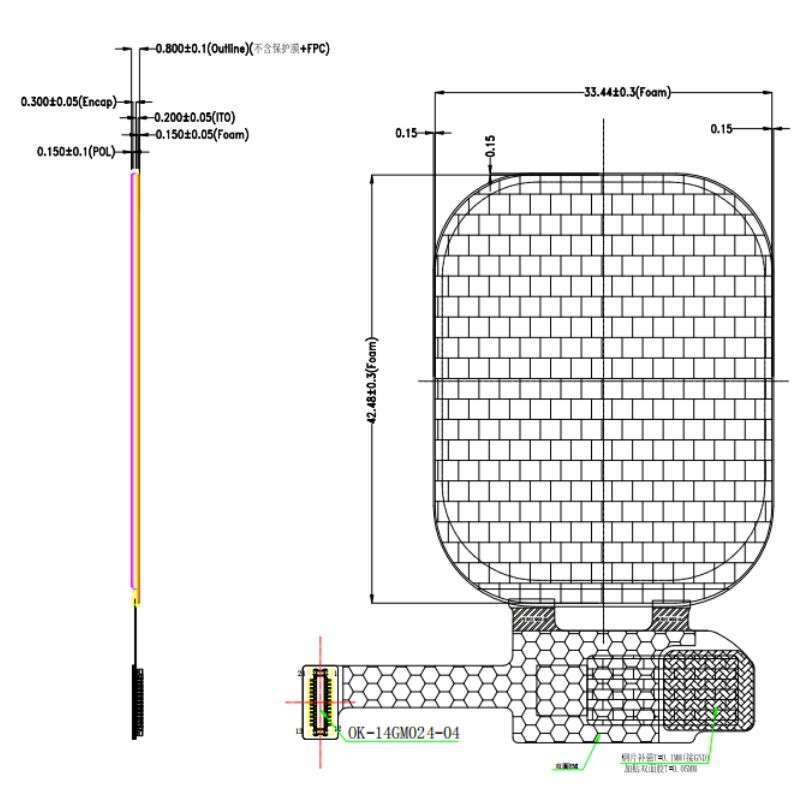

Module Dimensions (mm) (W x H x D) 33.74×42.98×0.65
Active Area (mm) (W x H) 32.04 x 39.52
Luminance (cd/m2) 500
Interface QSPI
Driver IC SH8501A
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80


Manufacturer ISO Certification

ISO certification Tailor Pixels






Quality Verification Processes


2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
