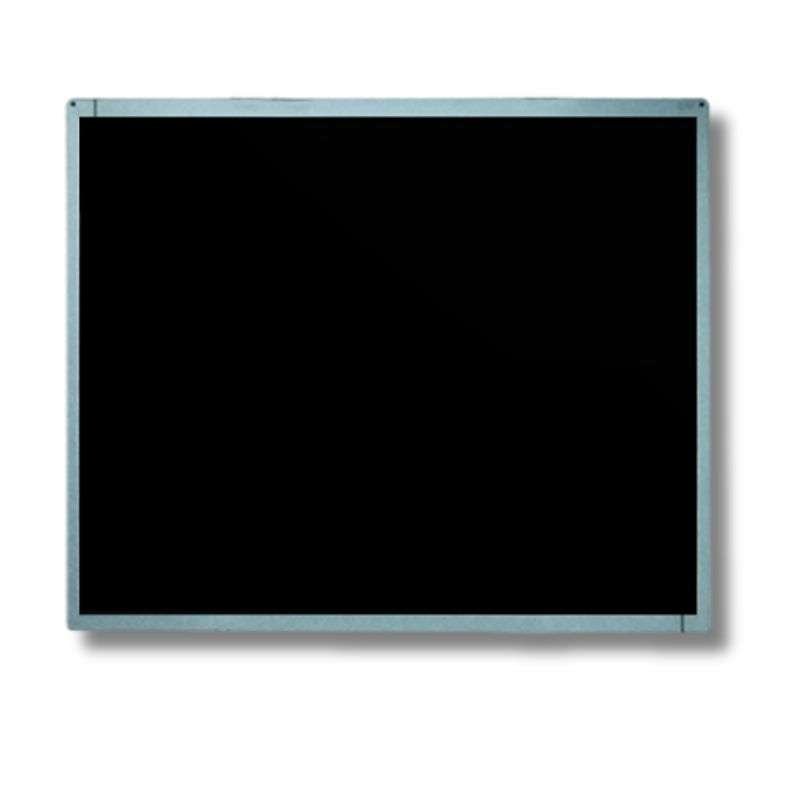

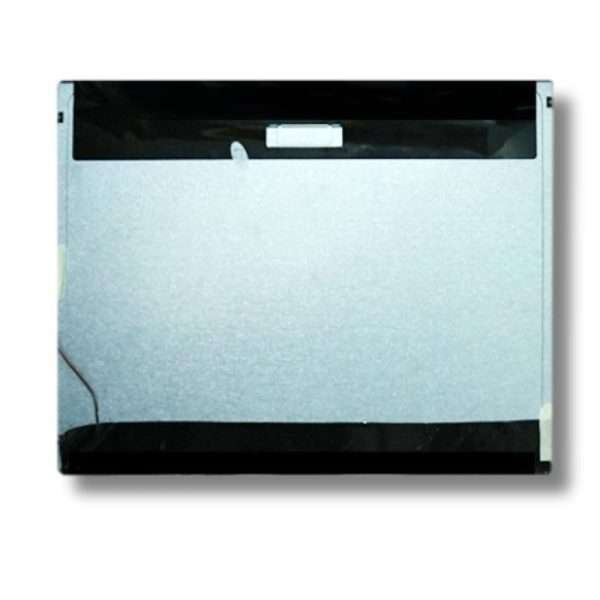

TTR170XHT-01 | 17 inch TN TFT LCD | 1280×1024 Pixels | LVDS | High Brightness|
17-inch TFT LCD provides high brightness of 1000 Cd/m2 and endure wide operation temperature 0°C ~+50°C. It is designed to meet the challenge of application outdoors.
Optional custom solution with capacitive touchscreen.
The material is RoHS compliant.
| Diagonal (inch) | 17.0″ |
| Resolution (pixel) | 1280×1024 |
| Display Type | TN |
| Display Mode | Transmissive |
| Optimal View | 12:00 |
| Touch Screen | Custom |

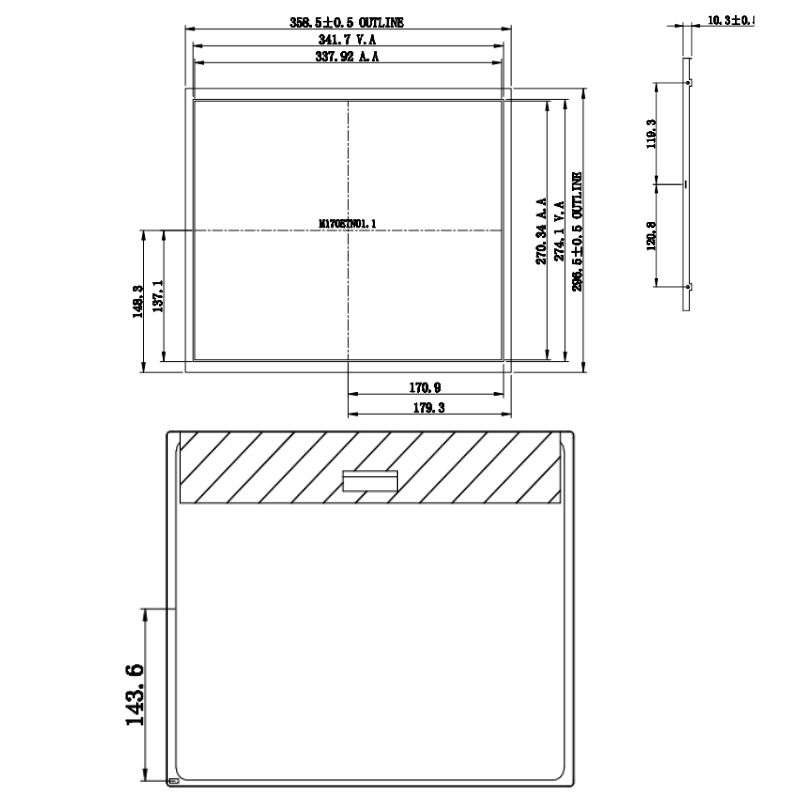

| Module Dimensions (mm) (W x H x D) | 358.5×296.5×10.3 |
| Active Area (mm) (W x H) | 337.92×270.336 |
| Luminance (cd/m2) | 1000 |
| Interface | LVDS |
| Driver IC | TBD |
| Operational Temperature (°C) | 0 ~ +50 |
| Storage Temperature (°C) | -20 ~ +60 |
