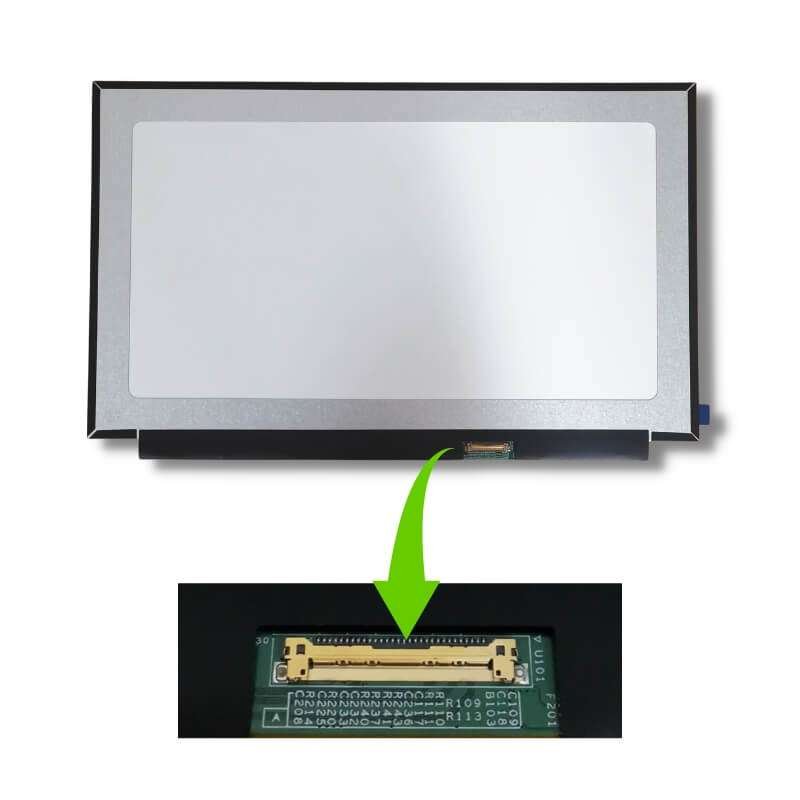

13.3 inch IPS TFT, HDMI Option, 1920×1080, EDP

Model: TTX133BHN-01
Diagonal: 13.3″
Resolution: 1920×1080 Pixels
Display Type: IPS
Touch Screen Option: Capacitive Touch Screen
Interface: EDP
Driver IC: TBD
Download Resources: Specification | 2D Rendering


TTX133BHN-01 | 13.3-inch IPS TFT LCD | HDMI Transfer Option | 1920×1080 Pixels | EDP |
Option of interface transfer to HDMI via the universal controller board (TBJ156HD-01) + eDP cable.
Optional solution with capacitive touchscreen.
The material is RoHS-compliant.


Diagonal (inch) 13.3″
Resolution (pixel) 1920×1080
Display Type IPS
Display Mode Transmissive
Optimal View Full View
Touch Screen Optional
Module Dimensions (mm) (W x H x D) 300.32×177.45×2.45
Active Area (mm) (W x H) 293.76×165.24
Luminance (cd/m2) 280
Interface EDP
Driver IC TBD
Operational Temperature (°C) 0 ~ +50
Storage Temperature (°C) -20 ~ +60




Manufacturer ISO Certification

ISO certification Tailor Pixels






Quality Verification Processes


2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
