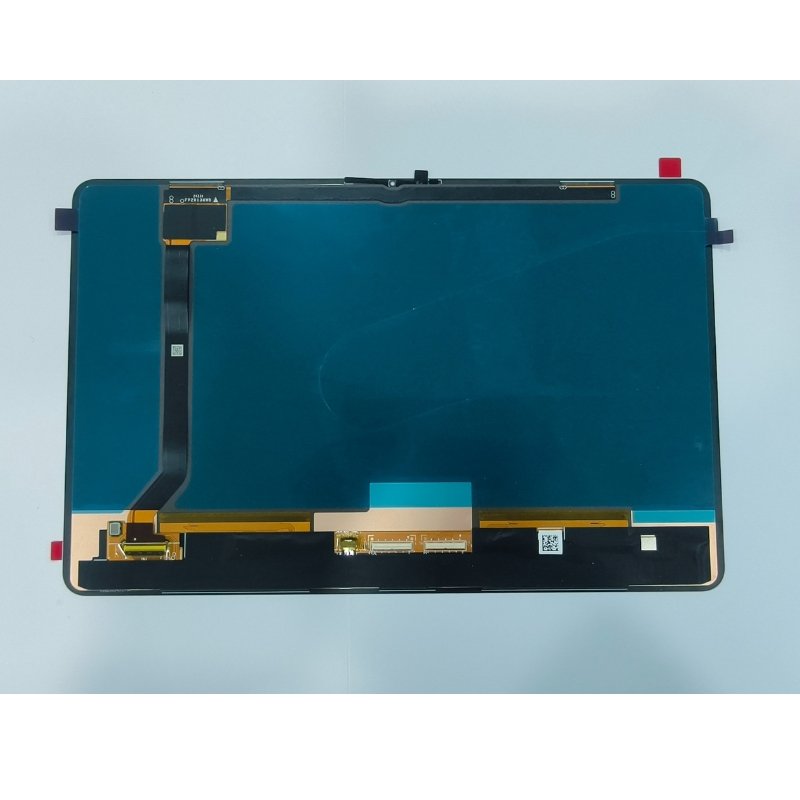

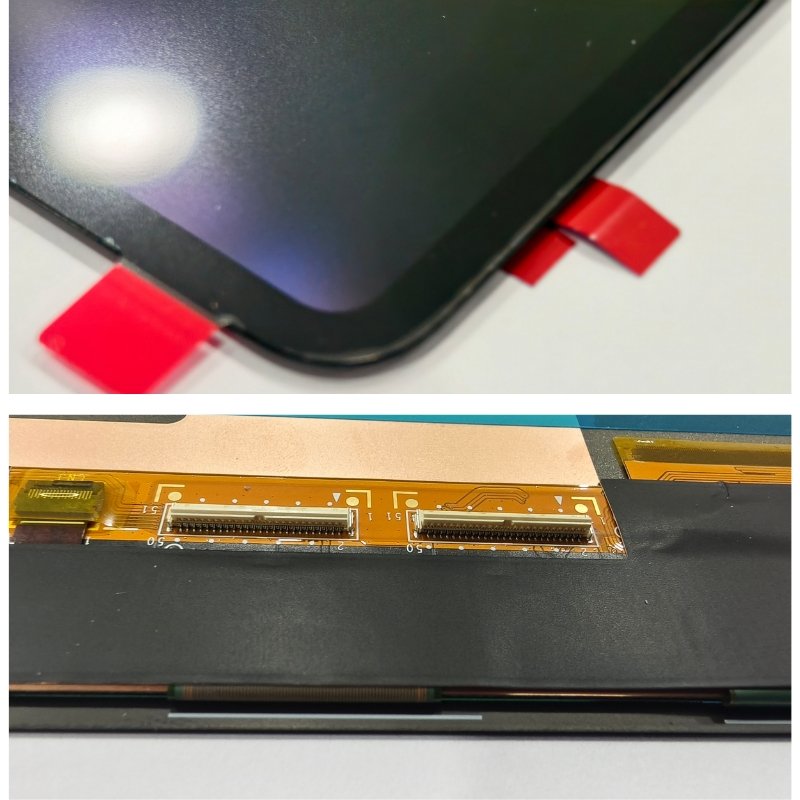

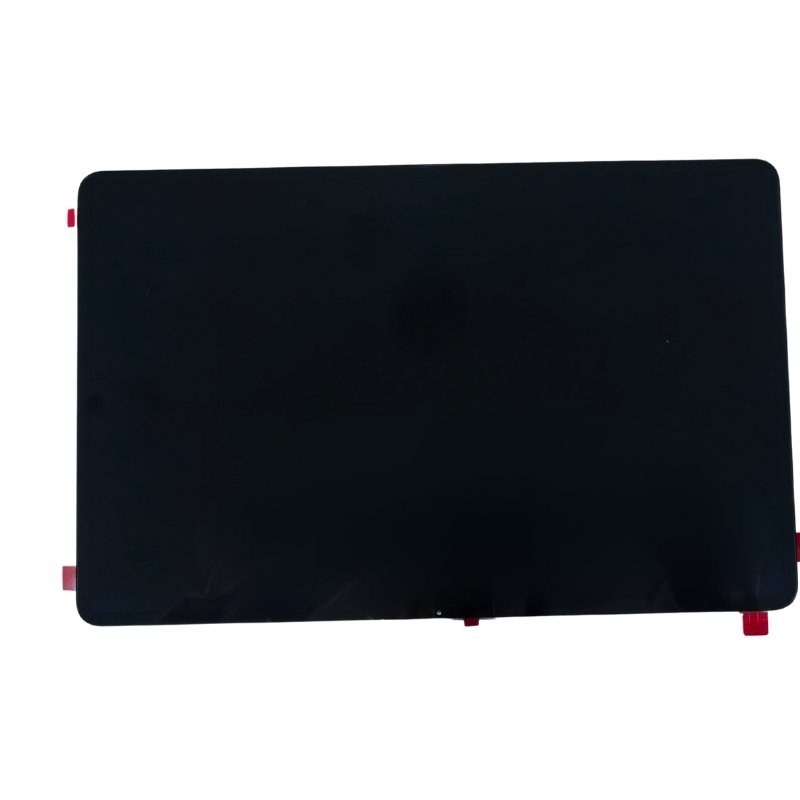

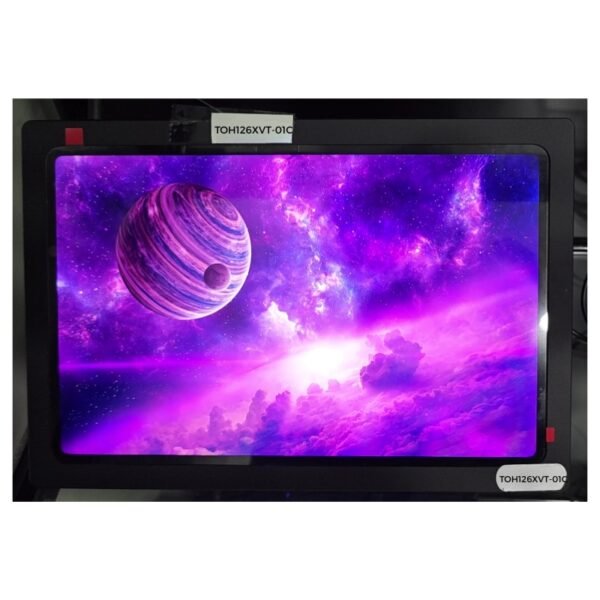

TOH126XVT-01C | 12.6-inch AMOLED Display | 1600×2560 High Resolution | MIPI | On-Cell Touch |
This 12.6-inch AMOLED display, featuring a sharp 1600×2560 resolution and an ultra-high 100000:1 contrast ratio, and on-cell touch technology for superior performance and seamless integration.
Ideal for industrial control panels, medical devices, smart appliances, and handheld commercial equipment.
This display has a built-in RM69380F16 controller.
The material is RoHS-compliant.
| Diagonal (inch) | 12.6 |
| Resolution (pixel) | 1600×2560 |
| Display Type | AMOLED |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | on cell |

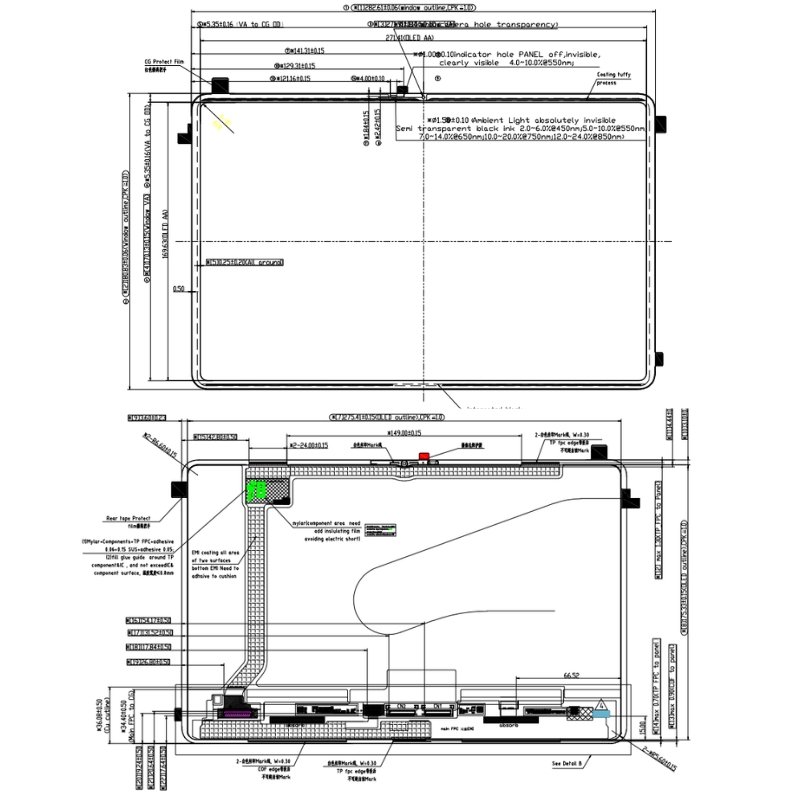

| Module Dimensions (mm) (W x H x D) | 275.411×175.232×0.902 |
| Active Area (mm) (W x H) | 271.4112×169.632 |
| Luminance (cd/m2) | 400 |
| Interface | MIPI |
| Driver IC | RM69380F16 |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -40 ~ +80 |
