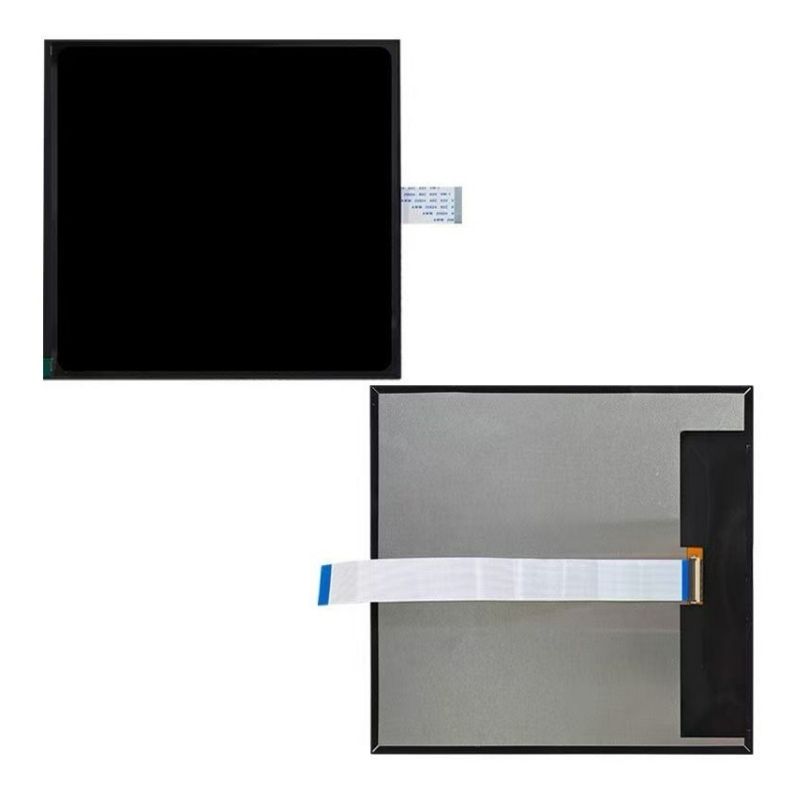

TTG100XRT-01| 10 inch Square LCD | | 1200×1200 Pixels | MIPI | High Brightness |
This Is square touch display provides high resolution and is designed for control panel.
This Liquid Crystal Display has a built-in JD9366 controller.
Optional with capacitive touchscreen.
The material is RoHS-compliant.
| Diagonal (inch) | 10.1 |
| Resolution (pixel) | 1200×1200 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Optional |
| Module Dimensions (mm) (W x H x D) | 185.82X192.32X5.0 |
| Active Area (mm) (W x H) | 179.82x 179.82 |
| Luminance (cd/m2) | 1000 typ |
| Interface | MIPI (HDMI board option) |
| Driver IC | JD9366 |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
