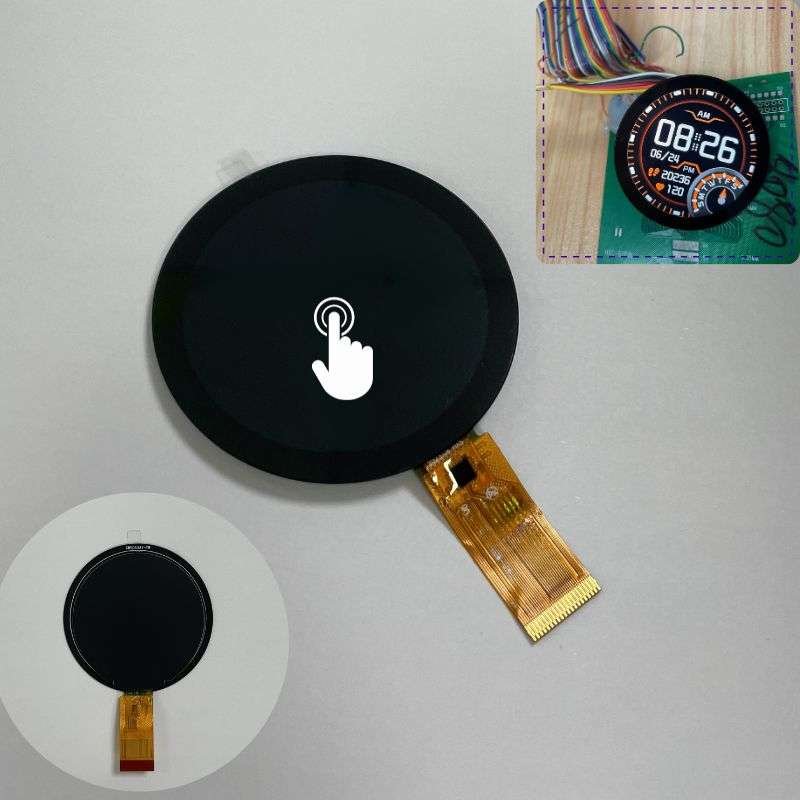

1.85-inch Round LCD, 360×360, MIPI/QSPI/8BIT/SRGB, w/CTP

Model: TTH185TRS-01C

Diagonal: 1.85″

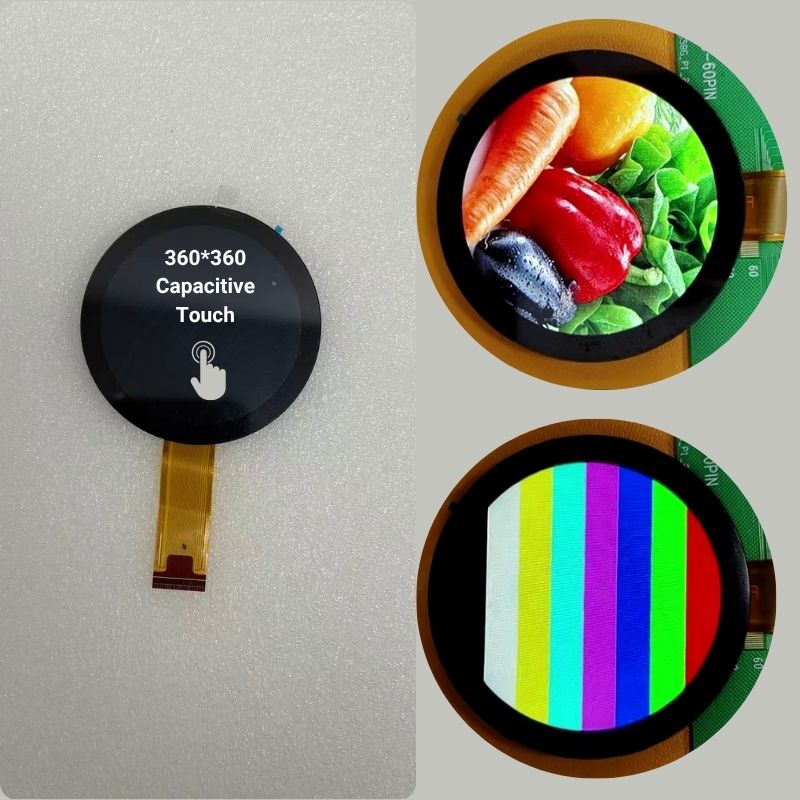

Resolution: 360×360 Pixels
Display Type: IPS
Interface: MIPI/QSPI/8BIT/SRGB
Driver IC: ST77916

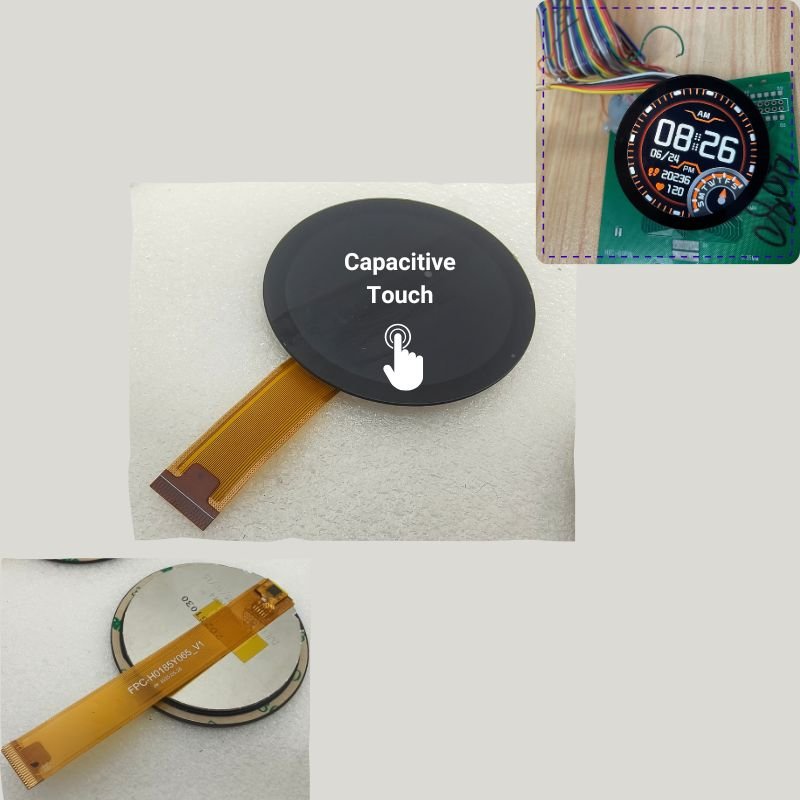

Touch Screen Option: Capacitive Touch Screen
Download Resources: SpecificationCatalog

$7.50$12.50



TTH185TRS-01C | 1.85 inch IPS TFT LCD | Round | 360×360 Pixels | MIPI/QSPI/8BIT/SRGB | Capacitive Touch |

The small round display with capacitive touch screen, designed especially for handheld devices and smart appliances.
This TFT display provides a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in ST77916 controller.
Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS-compliant.



Diagonal (inch) 1.85
Resolution (pixel) 360×360
Display Type IPS
Display Mode Transmissive
Optimal View Full View
Touch Screen Capacitive Touch Screen

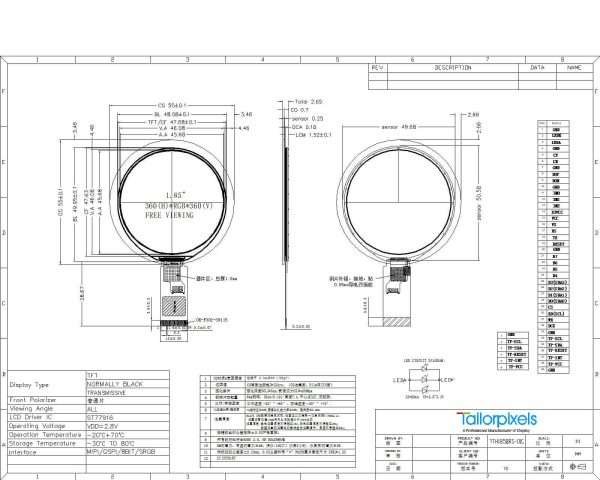

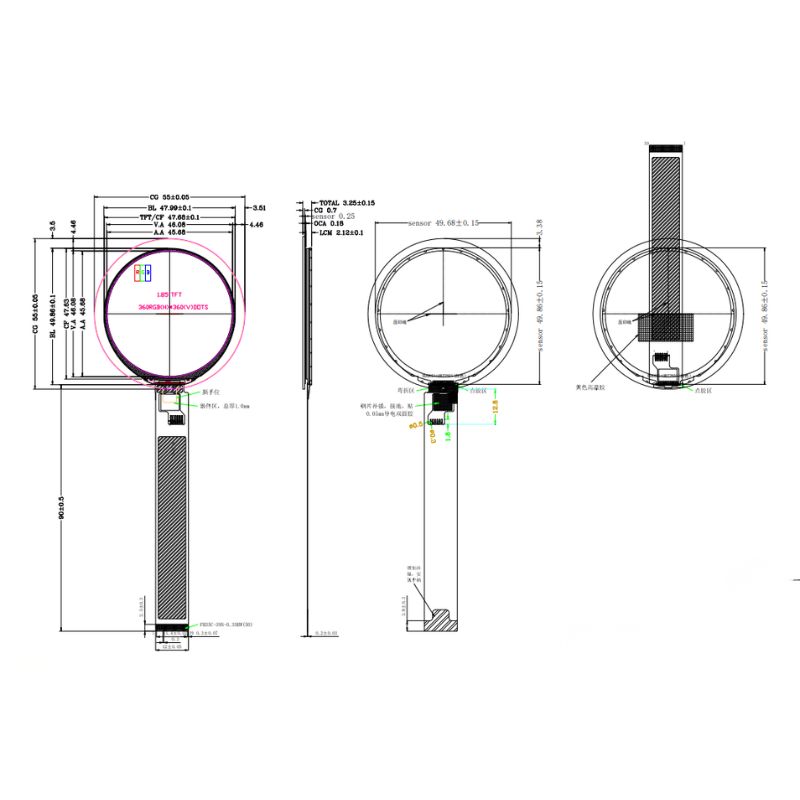

Module Dimensions (mm) (W x H x D) 48.08×49.95×2.12 (LCM)

55x55x3.25 (LCM with TP)

Active Area (mm) (W x H) 45.68×45.68
Luminance (cd/m2) 450/LCM, 400/after CTP
Interface MIPI/QSPI/8BIT/SRGB
Driver IC ST77916
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80



Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes



2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
