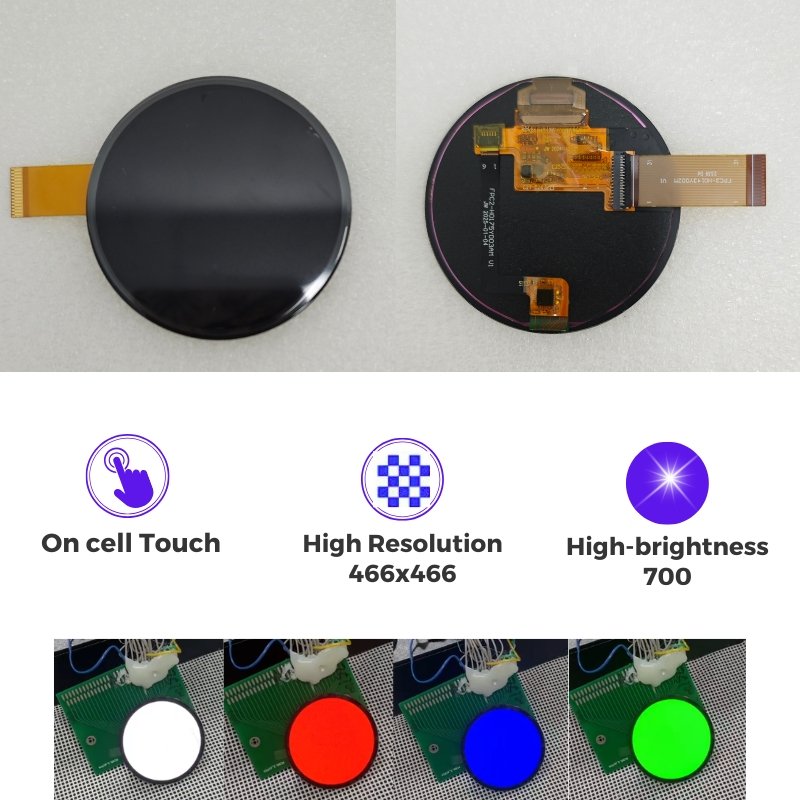

1.75-inch AMOLED | Round & Thin | High Resolution 466×466 Pixels | High brightness of 700nits| High Contrast: 20000:1
The AMOLED display is designed with a unique outline in a small round, for the smart wearable and gadget.
This display has a built-in C05300 and CST9217 controller.
The material is RoHS-compliant.
| Diagonal (inch) | 1.75 |
| Resolution (pixel) | 466×466 |
| Display Type | AMOLED |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | On- cell Capacitive Touch |
| Module Dimensions (mm) (W x H x D) | 45.93 ×46.35×0.8 |
| Active Area (mm) (W x H) | 43.76x 43.76 |
| Luminance (cd/m2) | 700 |
| Interface | MIPI / QSPI |
| Driver IC | C05300 & CST9217 |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
