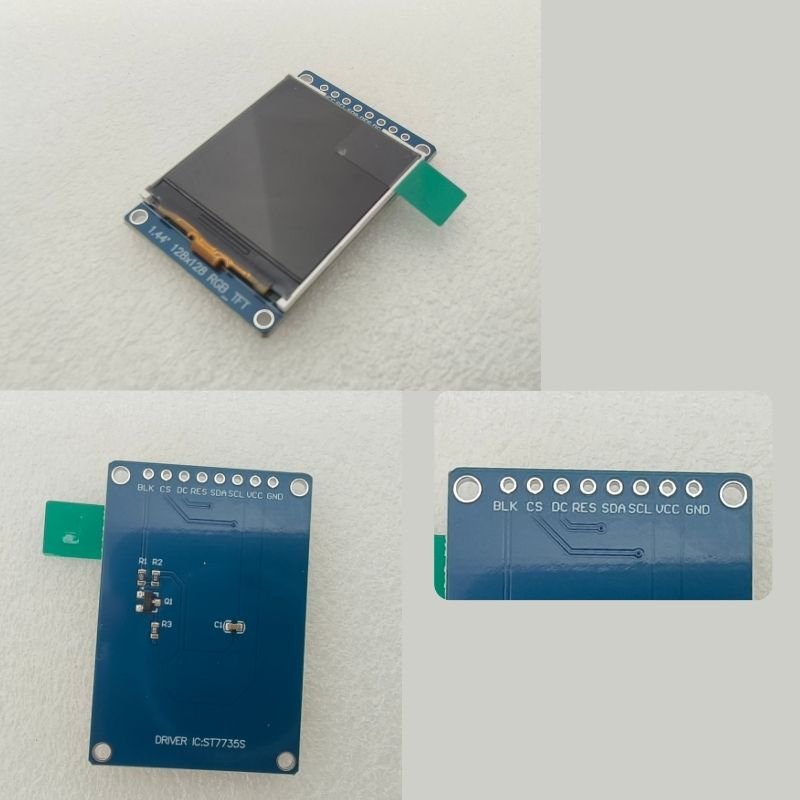

TBJMD144A_1.44 inch TN TFT, SPI, 128×128, with board
TBJMD144A_1.44 inch TN TFT, SPI, 128×128, with board (2)
1.3-inch SQUARE TFT LCD, 240x240, with board, SPI

1.44 inch square LCD, SPI, 128×128, with board

Model: TBJMD144A

Diagonal: 1.44″
Resolution: 128×128 Pixels
Display Type: TN
Interface: SPI
Driver IC: N/A
Download Resources: Specification |

$2.00 – $3.50

  • Customization is available
Inquiry for product / volume quote
Whatsapp Youtube Facebook Linkedin



TBJMD144A | 1.44′ TN TFT LCD | 128×128 Pixels |

The material is RoHS-compliant.



Diagonal (inch) 1.44
Resolution (pixel) 128X128
Display Type TN
Display Mode Transmissive
Optimal View 6:00
Touch screen None
Module Dimensions (mm) (W x H x D) 30x43x11.3
Active Area (mm) (W x H) 25.50×26.50
Luminance (cd/m2) 200
Interface SPI
Driver IC N/A
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80



Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes



2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
