1.28 inch IPS TFT, Round, SPI, 240×240

Model: TTS128HRG-01

Diagonal: 1.28″
Resolution: 240×240 Pixels
Display Type: IPS
Touch Screen Option: Capacitive Touch Screen
Interface: SPI
Driver IC: GC9A01
Download Resources: | 2D Rendering

$3.51$5.80

TTS128HRG-01 | 1.28 inch IPS TFT LCD | Round | 240×240 Pixels | SPI |

The small round display is designed especially for wearable devices and smart gadgets.
This TFT display provides a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in GC9A01 controller.

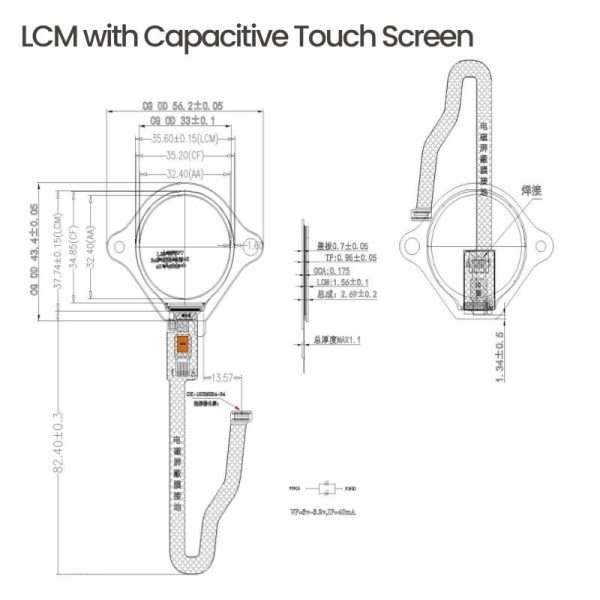

Optional custom solution with capacitive touchscreen.
The material is RoHS-compliant.



Diagonal (inch) 1.28″
Resolution (pixel) 240×240
Display Type IPS
Display Mode Transmissive
Optimal View Full View
Touch Screen Capacitive
Module Dimensions (mm) (W x H x D) 35.60×37.74×1.56
Active Area (mm) (W x H) 32.4 x32.4
Luminance (cd/m2) 300
Interface SPI
Driver IC GC9A01
Operational Temperature (°C) -20 ~ +70
Storage Temperature (°C) -30 ~ +80





Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes



2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
