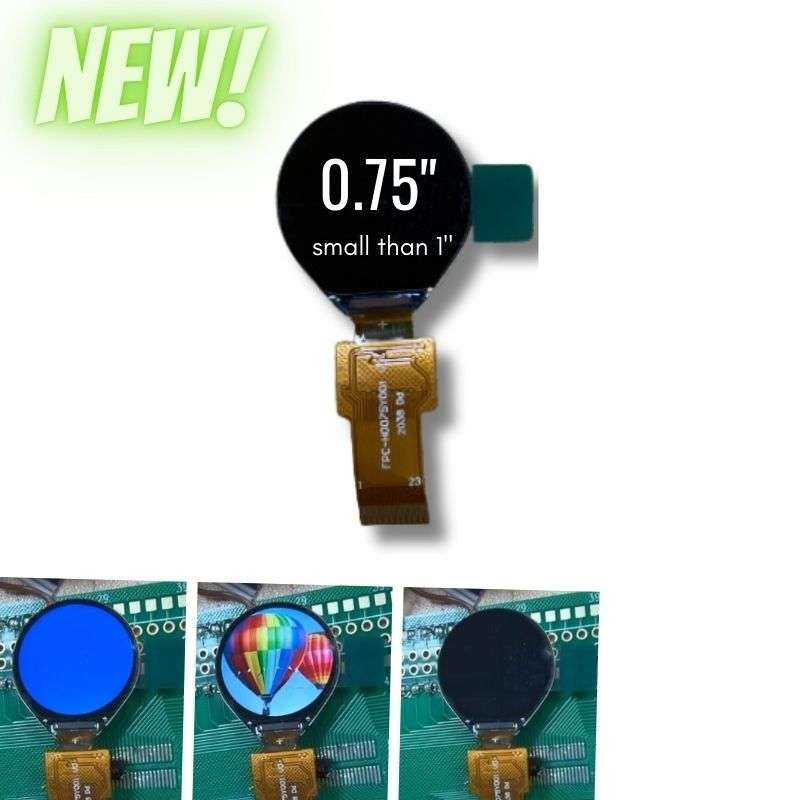

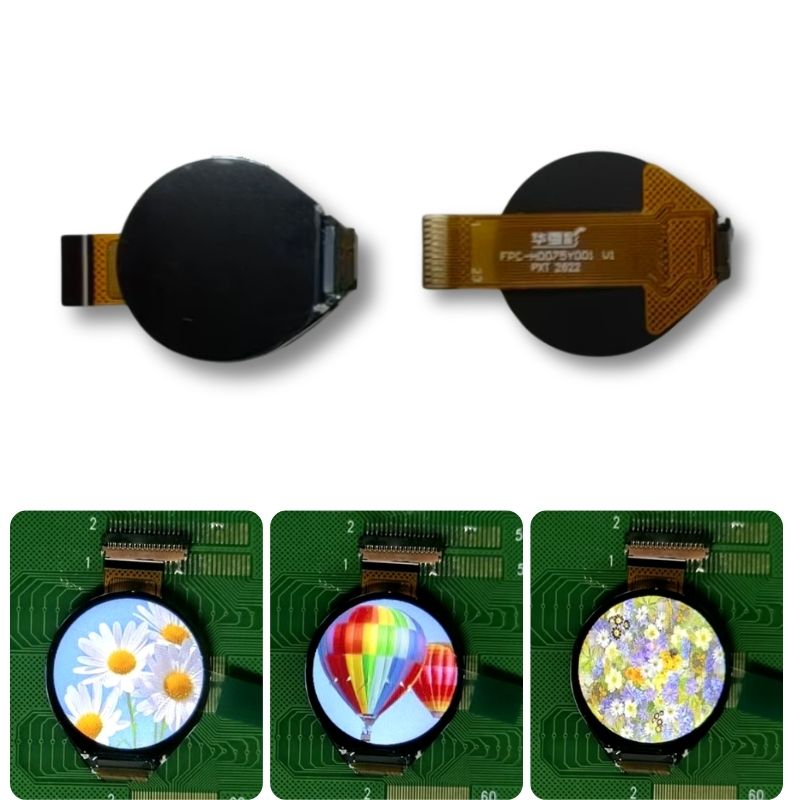

TTH075BRG-01 | 0.75-inch Round TFT LCD | IPS | 128×115 Pixels | SPI| MCU|
The tiny round display is designed especially for wearable devices and the control knob of home appliances.
This Liquid Crystal Display has a built-in GC9D01N controller.
Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS-compliant.
| Diagonal (inch) | 0.75 |
| Resolution (pixel) | 160×160 |
| Display Type | IPS |
| Display Mode | Transmissive |
| Optimal View | Full View |
| Touch Screen | Custom |
| Module Dimensions (mm) (W x H x D) | 20.21×22.35×1.5 |
| Active Area (mm) (W x H) | 18×18 |
| Luminance (cd/m2) | TBD |
| Interface | SPI/MCU |
| Driver IC | GC9D01N |
| Operational Temperature (°C) | -20 ~ +70 |
| Storage Temperature (°C) | -30 ~ +80 |
