ESP32 Display Series for AMOLED evaluation
A ready-to-use display board for Tailor Pixels AMOLED modules, built to shorten bring-up time for wearable, handheld, smart home and compact HMI projects.
One compact ESP32P4 board for multiple AMOLED formats
TBX175EMD-01 is designed as a universal AMOLED evaluation board. The hardware exposes display interfaces, a touch-ready workflow, USB-C power, TF card media storage and user buttons for quick prototype demos.
From screen selection to demo playback
The board and firmware are prepared for fast AMOLED verification, with screen parameters, touch settings and media playback workflows documented for engineering teams.
Seven Tailor Pixels AMOLED modules are prepared with real lit-screen photos for sales and engineering review.
Firmware uses display.cfg style screen parameters including resolution, MIPI lane rate, porch timing and touch mapping.
Capacitive touch workflows are supported, including CST820-class touch IC integration for compact AMOLED demos.
TF card media retrieval and playback make it easier to show color, contrast, motion and UI concepts during evaluation.
Match the board with the right small AMOLED
Each card links to the current Tailor Pixels product page where available. The TOH216XST-01C public product page was not found during this pass, so its card routes to inquiry for confirmation.
TOH132XRT-01C
Round AMOLED with on-cell touch for compact wearables and IoT interfaces.
Open product page
TOH143XRT-01CG2
Round on-cell touch AMOLED with cover glass for high-density control panels.
Open product page
TOH175XRT-02CG
Round touch AMOLED with cover glass, useful for wearable and smart controller concepts.
Open product page

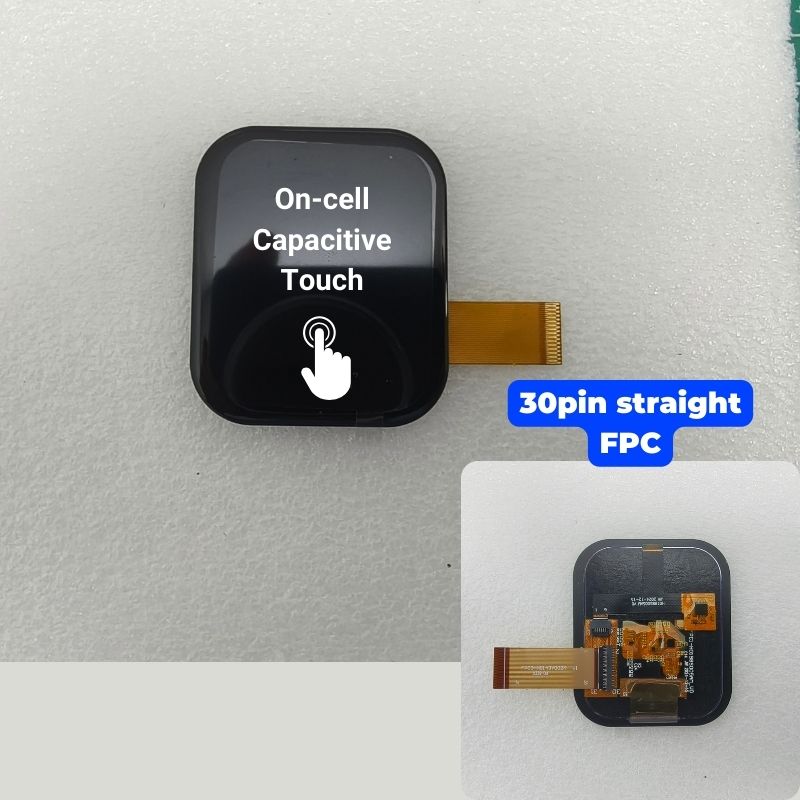

TOH198XVT-01CG
Touch AMOLED with cover glass for handheld, wearable and commercial display devices.
Open product page
TOH204XVT-01CG
Compact touch AMOLED with cover glass and high brightness for small terminal screens.
Open product page
TOH216XST-01C
Verified in the local ESP32 Display photo set. Public product page needs final confirmation before linking.
Inquiry for product / volume quote

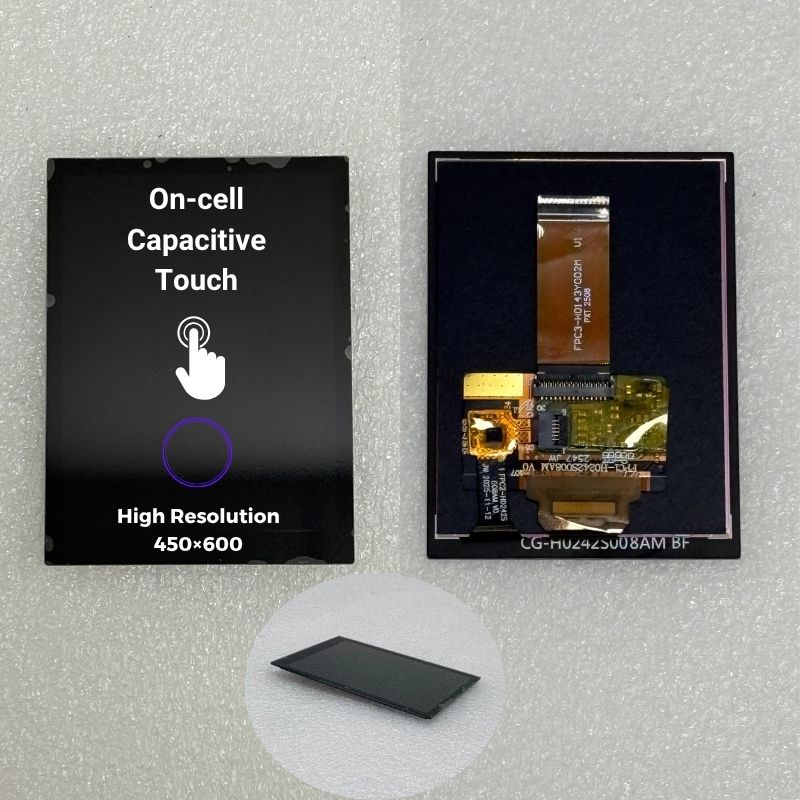

TOH240XVT-03CG
High-brightness touch AMOLED with cover glass for wider application temperature requirements.
Open product pageLit-screen proof for sales samples and engineering review
Use these visuals to show the full eval-kit story: board, power, FPC connection and active AMOLED image output.
Designed for faster overseas evaluation
1. Select display
Choose size, outline, resolution and interface from the compatible AMOLED models.
2. Request eval kit
Pair the AMOLED with TBX175EMD-01 and ask Tailor Pixels for sample, firmware and cable details.
3. Validate product UI
Run images or video from the board to review contrast, touch response and product appearance.
ESP32 AMOLED display evaluation questions
Clear answers help engineers qualify the board quickly and give Google Ads visitors enough detail before they submit an inquiry.
Which AMOLED modules can be paired with TBX175EMD-01?
The current landing page covers Tailor Pixels 1.32 inch, 1.43 inch, 1.75 inch, 1.98 inch, 2.04 inch, TOH216XST-01C and 2.4 inch AMOLED options. Final firmware and cable matching should be confirmed before sampling.
Is this board suitable for overseas sample evaluation?
Yes. The page is structured for buyers who need an AMOLED display and ESP32P4 board evaluation kit, including product links, lit-screen proof photos and a direct volume quote inquiry path.
Can Tailor Pixels support custom display projects?
Tailor Pixels manufactures and sells LCD and OLED displays from Shenzhen, and can discuss interface, cover glass, touch, brightness and sample requirements according to the customer device.
Need an ESP32 AMOLED eval kit for your device?
Send the target screen size, interface preference, quantity forecast and application environment. Tailor Pixels can help match the display, board, firmware support and custom options.
