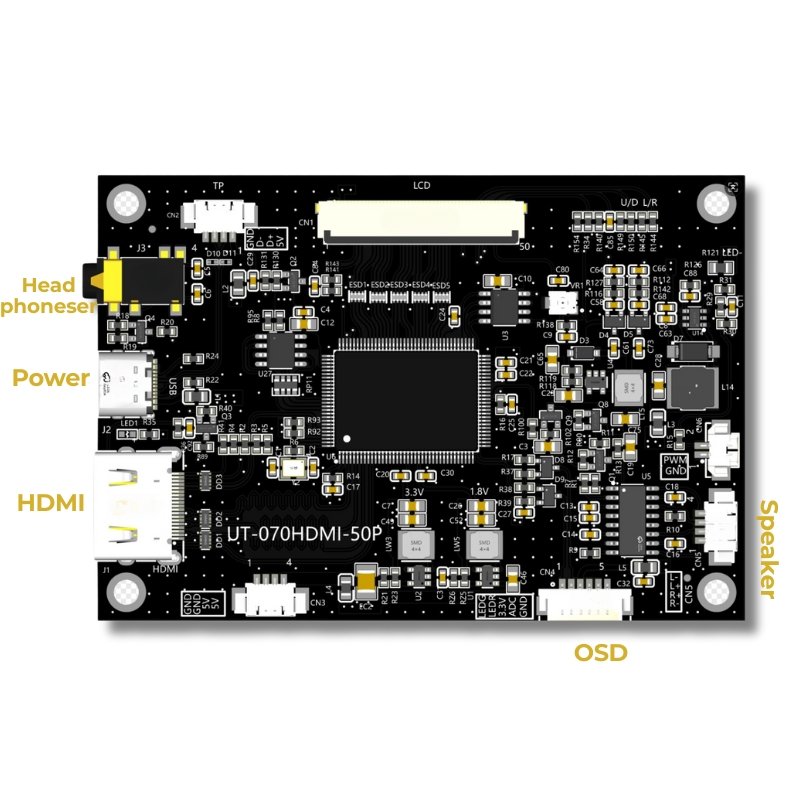

TBJ070HD-02 TFT Controller Board | RGB 50pin to HDMI converter |
Support LCD resolution of 1024×600 and multiple screen sizes |
Support power supply and USB touch, speaker power amplifier driver, 3.5 headphones, OSD function.
The TFT control board can be compatible with our 7.0-inch TFT LCD.
The material is RoHS compliant.
| Function | RGB To HDMI |
| Supply Voltage (V) | 5.0 Typ |
| Interface | HDMI |
| LCM SIZE（inch） | Multiple |
| LCM Resolution supported (pixel) | 1024*600 max |

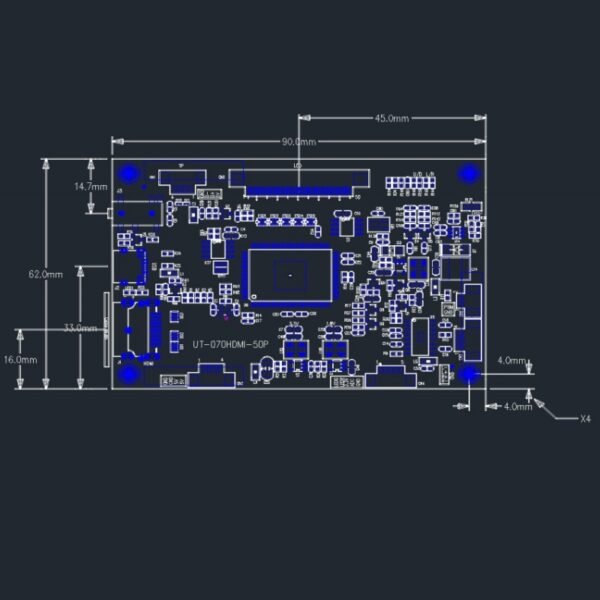

| PCB (W x H ) (mm) | 96.0×62.0 |
| Direct Current (without LCM ) (mA) | 450 Typ |
| LCM connector | 50PIN-0.5S |
| HDMI connector | HDMI-019S |
| Operational Temperature (°C) | -10 ~ +60 |
| Storage Temperature (°C) | -20 ~ +70 |
