Sale!

LCD Test Box, Eval Kit for MCU, SPI, RGB, MIPI

Model: Test Box B

Resolution: Multiple
Support Interface: MCU, SPI, RGB, MIPI
Image Storage: SD card
Remark:  power supply not included given different international standard



$116.00$120.00

The eval kit supports changing/adding the images on the SD card by PC.
However, you still need to tell us how many images you want to upload, we need to set the number of images (normally about 15) in the board before shipping.
The lead time for display regulation is 5-10 working days after order confirmation.

Please download and follow the full User Guide

User Guide of the Test Box B_Tailor Pixels_20231121

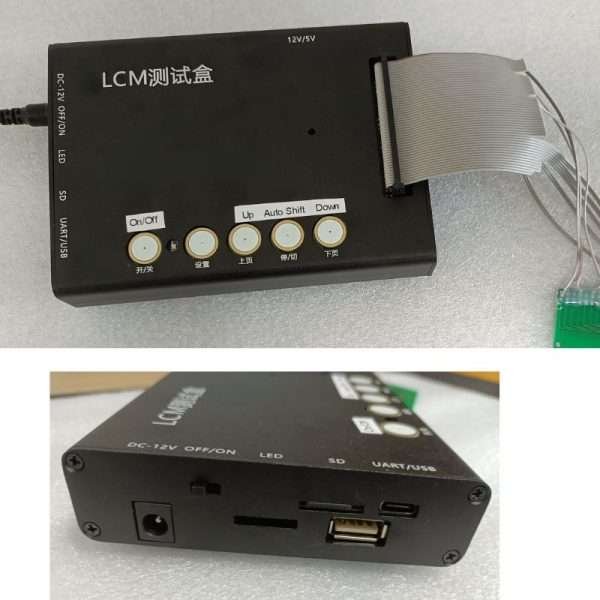

Test Box for MCU _ RGB _ SPI _ IIC _ MIPI
Test Box for MCU _ RGB _ SPI _ IIC _ MIPI

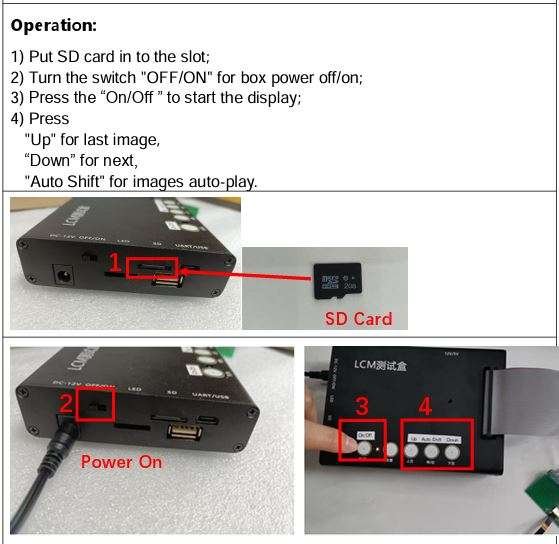

Eval Kit Operation Guide_Test Box B
Eval Kit Operation Guide_Test Box B



Manufacturer ISO Certification

ISO certification Tailor Pixels











Quality Verification Processes



2 Types of Microscopy-Inspections
  • In process of Backlight assembly and FOG bounding
3 Stages of Aging-Tests
  • Sampling from FOG line, testing in normal and high-temperature environment
  • Sampling from Finished Product: testing in high-temperature enviroment
4 Types of Lab Tests
  • High-Temperature High-Humidity Resistance Test
  • Thermal Shock Test
  • Vibration Test
  • Drop test
5 Times of Quality Inspections
  • Materials in-coming inspection
  • Online inspection
  • Final inspection before packing
  • IQC inspection before stock
  • OQC inspection before loading
